Mounting lid 350 for Telitank
Trench Part No. DUF 350-3 DAT
|OBO Item No. 7400431
|EAN 4012195434856
Trench Part No.
DUF 350-3 DAT
OBO Item No.
7400431
Mounting opening
Square
Smallest selling unit: 1 piece
1piece
piece
Description

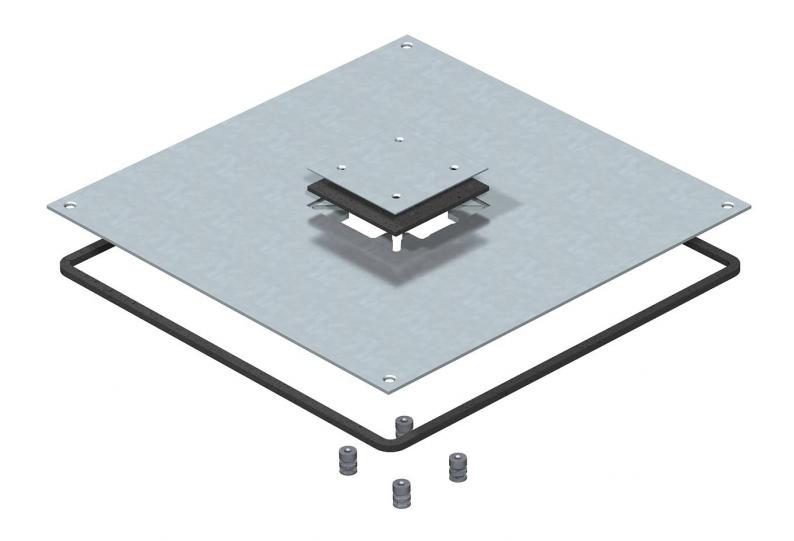

Mounting lid for underfloor junction and branch box of type UZD350-3/4 to install a Telitank. Installation opening 3 mm recessed as a later blanking lock with lid blanking plate.
Technical data

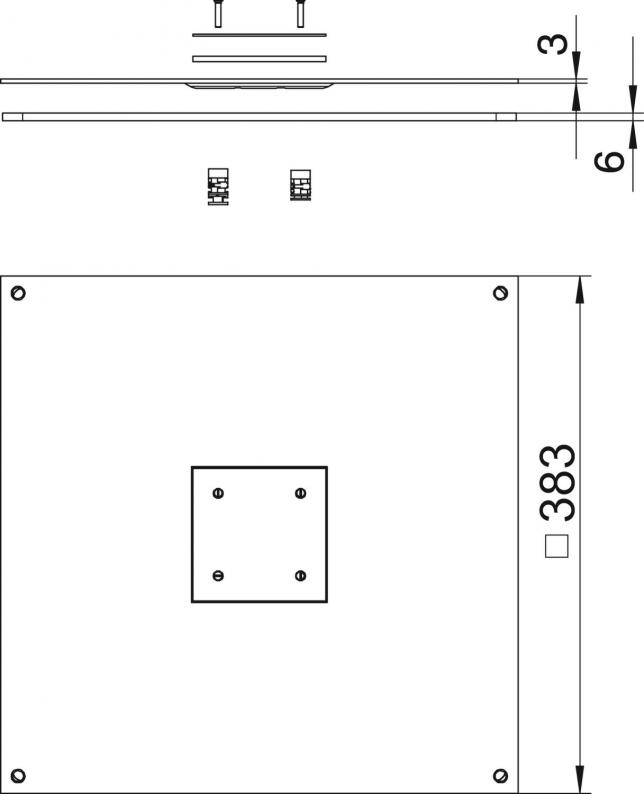

Dimensions
| Length | 383 mm |
|---|---|
| Width | 383 mm |
| Dimension A | 383 mm |
| Dimension a | 100 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, max. | 350 mm |
| Trunking width, min. | 190 mm |
| Installation opening for on-floor tank | yes |
| Seal installation option | yes |
| Floor care | Wet |
| Mounting opening cover | yes |
| Heavy-duty version | no |
| Nominal size | 350 mm |
| Mounting opening | Square |
| Dimension | 383x383x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
12,7396 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 12,7396 kg CO2e / 1 Piece |
|---|
