Trench
/
Products
/
…
/

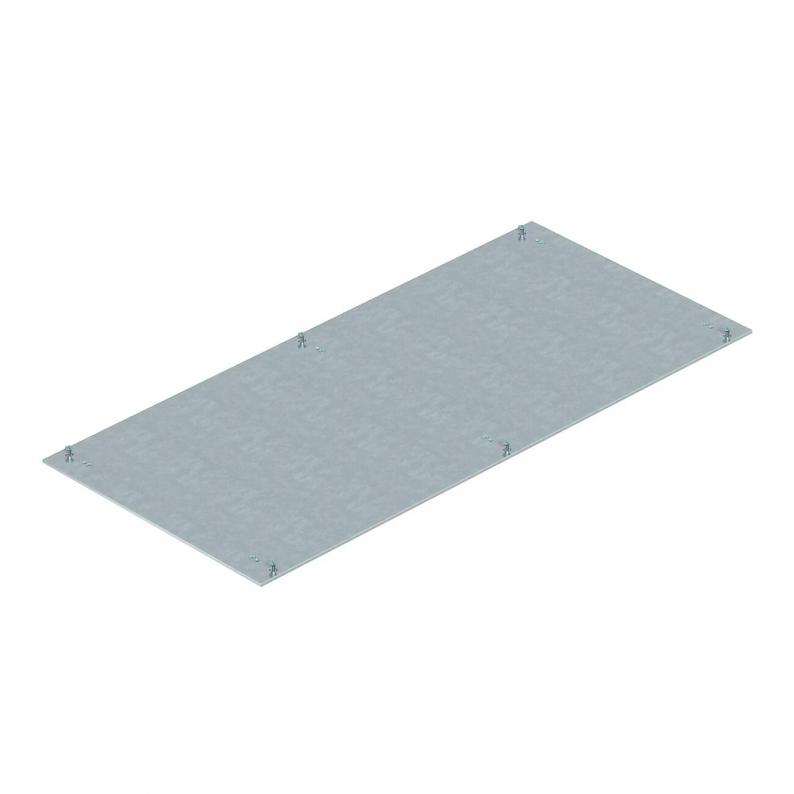

Mounting lid, blank, locking, 800 mm

Mounting lid, blank, locking, 800 mm

Trench Part No. OKA D 200 R
|
OBO Item No. 7425020
|
EAN 4012195245377
Show all variants
Trench Part No.
OBO Item No.
Length
Width

Smallest selling unit: 1 piece

piece

Description

For blank closing of a trunking unit. Lid fixing screws and locking elements contained in scope of delivery. Trunking lids with locking elements can be stacked, without any damage to the locking elements.

Technical data

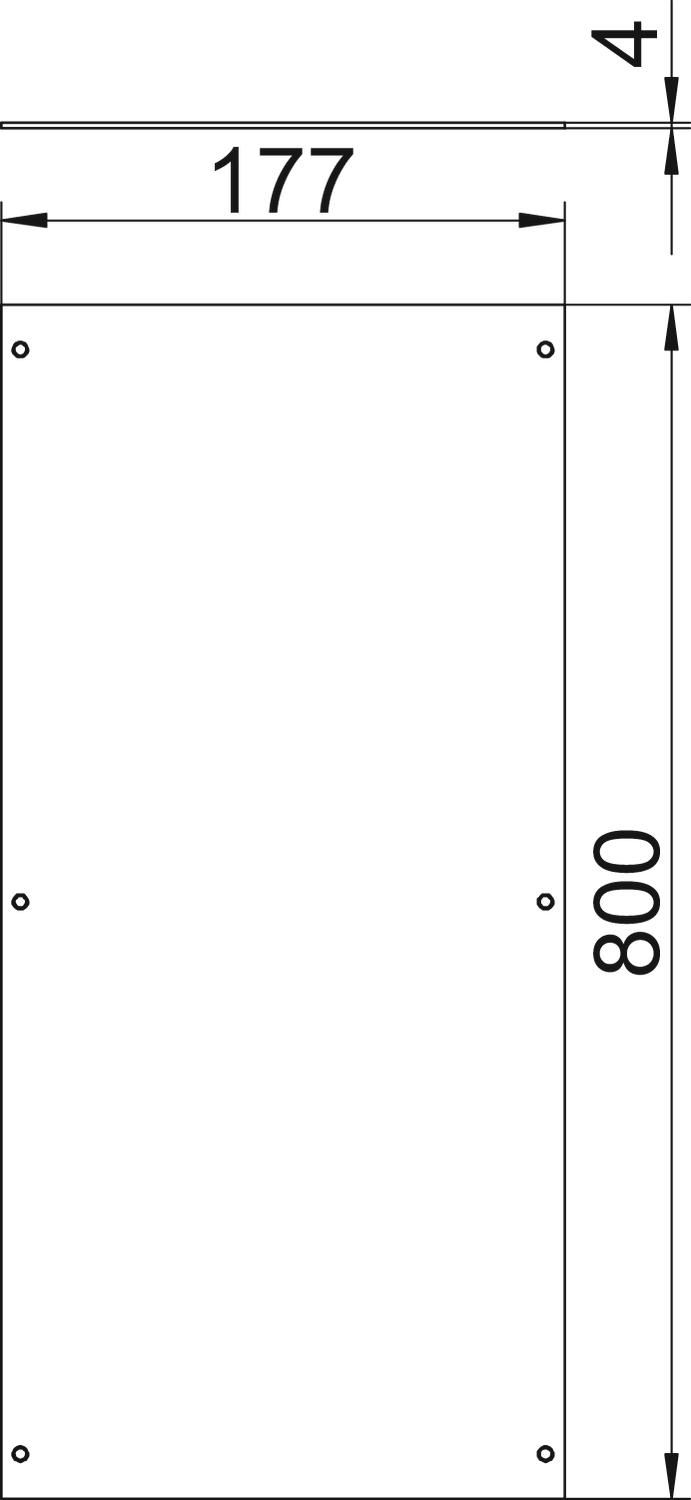

Dimensions

Length800 mm
Width200 mm
Dimension A177 mm

Technical data

Material thickness4 mm
Cover fastening, lockingyes
Mounting openingWithout
Mounting opening coverno
Number of mounting openings0
Mounting openingWithout
Dimension800x200x4
SurfaceStrip galvanized
MaterialSteel

Environmental Data

12,895 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate12,895 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
OKA D 200 R
OBO Item No.
7425020
Length
800
Width
200
OKA D 300 R
OBO Item No.
7425022
Length
800
Width
300
OKA D 400 R
OBO Item No.
7425024
Length
800
Width
400
OKA D 500 R
OBO Item No.
7425026
Length
800
Width
500
OKA D 600 R
OBO Item No.
7425028
Length
800
Width
600
