Mounting lid for GES4, 400 mm
Trench Part No. OKA D 500 4
|OBO Item No. 7425064
|EAN 4012195245421
Trench Part No.
OBO Item No.
Length
Width
Dimension a
Smallest selling unit: 1 piece
1piece
piece
Description

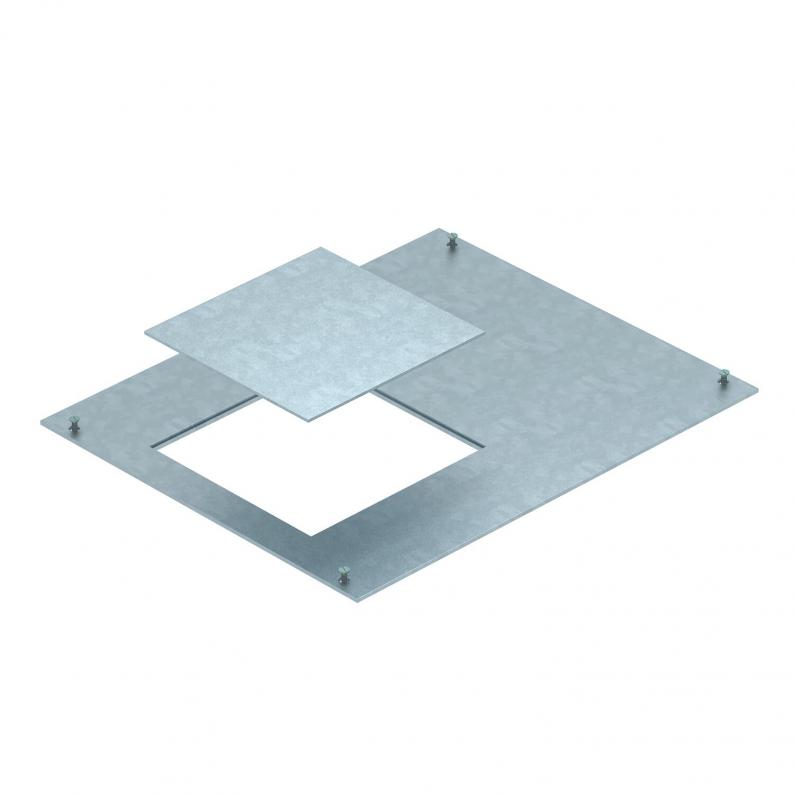

With mounting opening for the installation of an installation unit of nominal size 4. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
Technical data

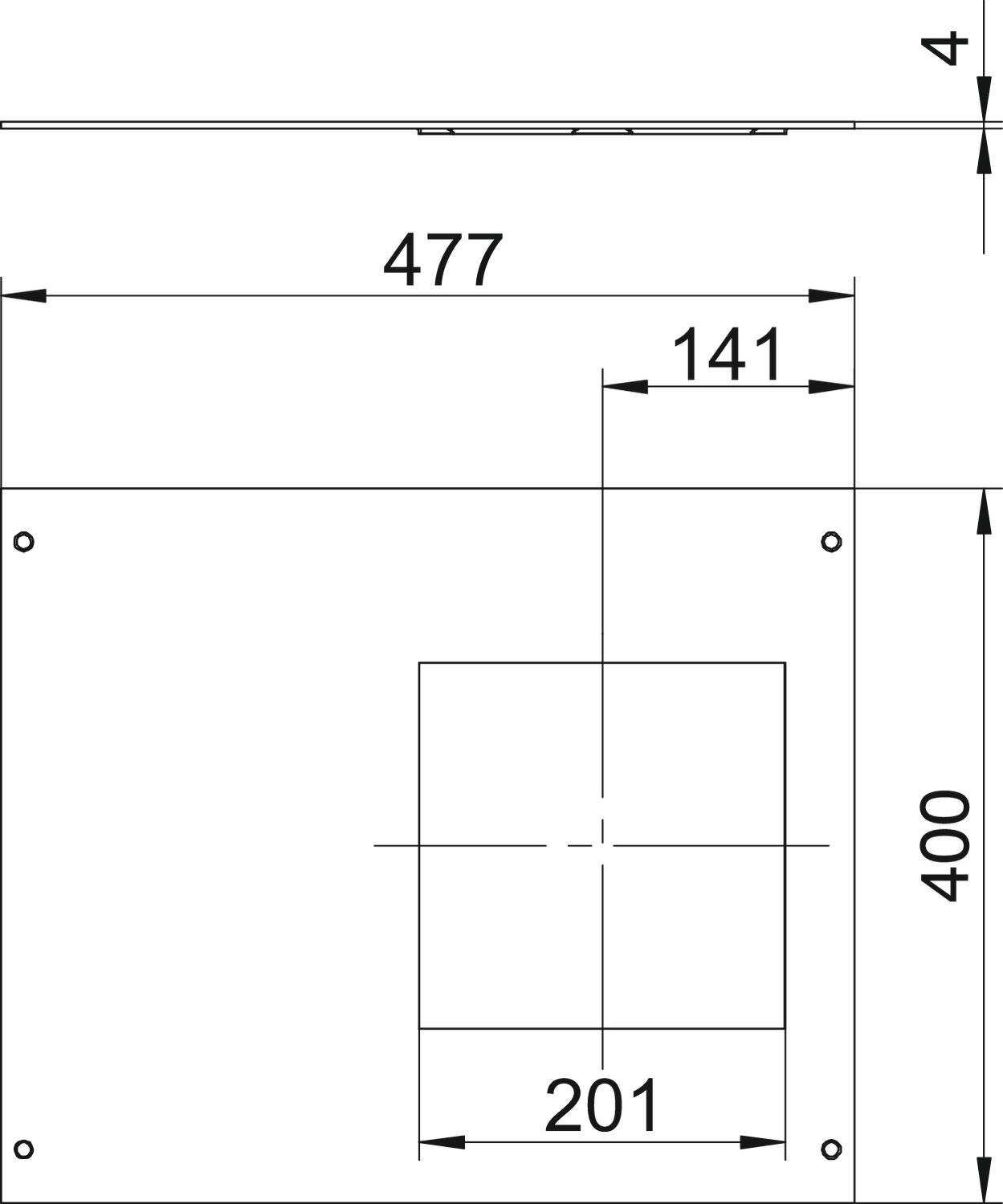

Dimensions
| Length | 400 mm |
|---|---|
| Width | 500 mm |
| Dimension A | 477 mm |
| Dimension a | 201 mm |
| Dimension c | 141 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Cover fastening, locking | no |
| Mounting opening | Square |
| Mounting opening cover | yes |
| Number of mounting openings | 1 |
| Mounting opening | For service outlet |
| Dimension | 400x500x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
20,4079 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 20,4079 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Dimension a
OBO Item No.
OKA D 500 4
400
500
201
7425064
OKA D 600 4
400
600
201
7425066
Width
OKA D 500 4
OBO Item No.
7425064
Length
400
Width
500
Dimension a
201
OKA D 600 4
OBO Item No.
7425066
Length
400
Width
600
Dimension a
201
