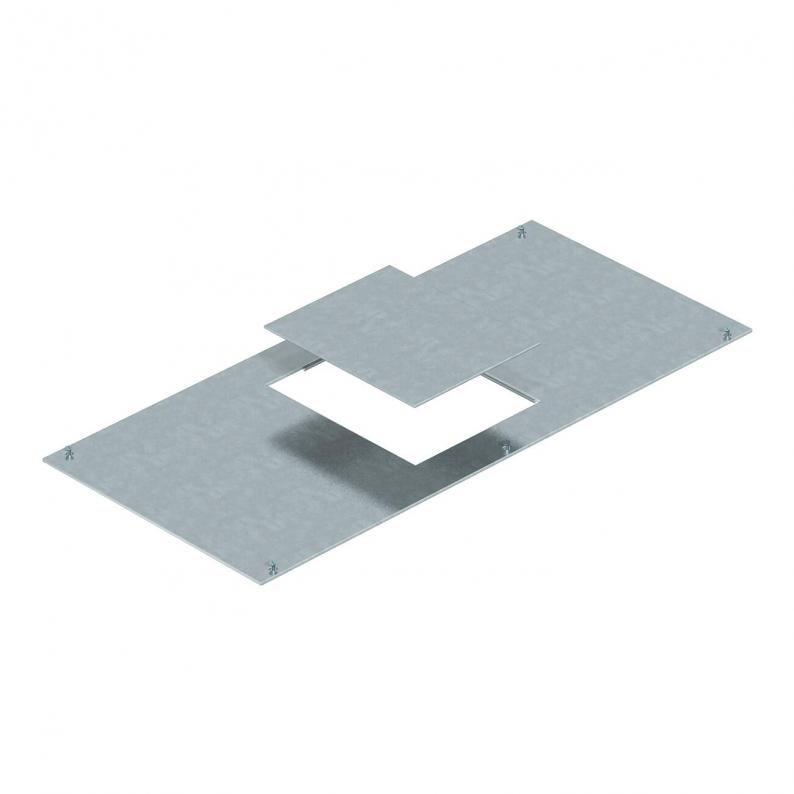

Mounting lid for GES6, 800 mm
Trench Part No. OKA DG6 400
|OBO Item No. 7402056
|EAN 4012195094128
Trench Part No.
OKA DG6 400
OBO Item No.
7402056
Length
800 mm
Width
400 mm
Dimension a
201 mm
Smallest selling unit: 1 piece
1piece
piece
Description
With mounting opening for the installation of an installation unit of nominal size 6. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
Technical data

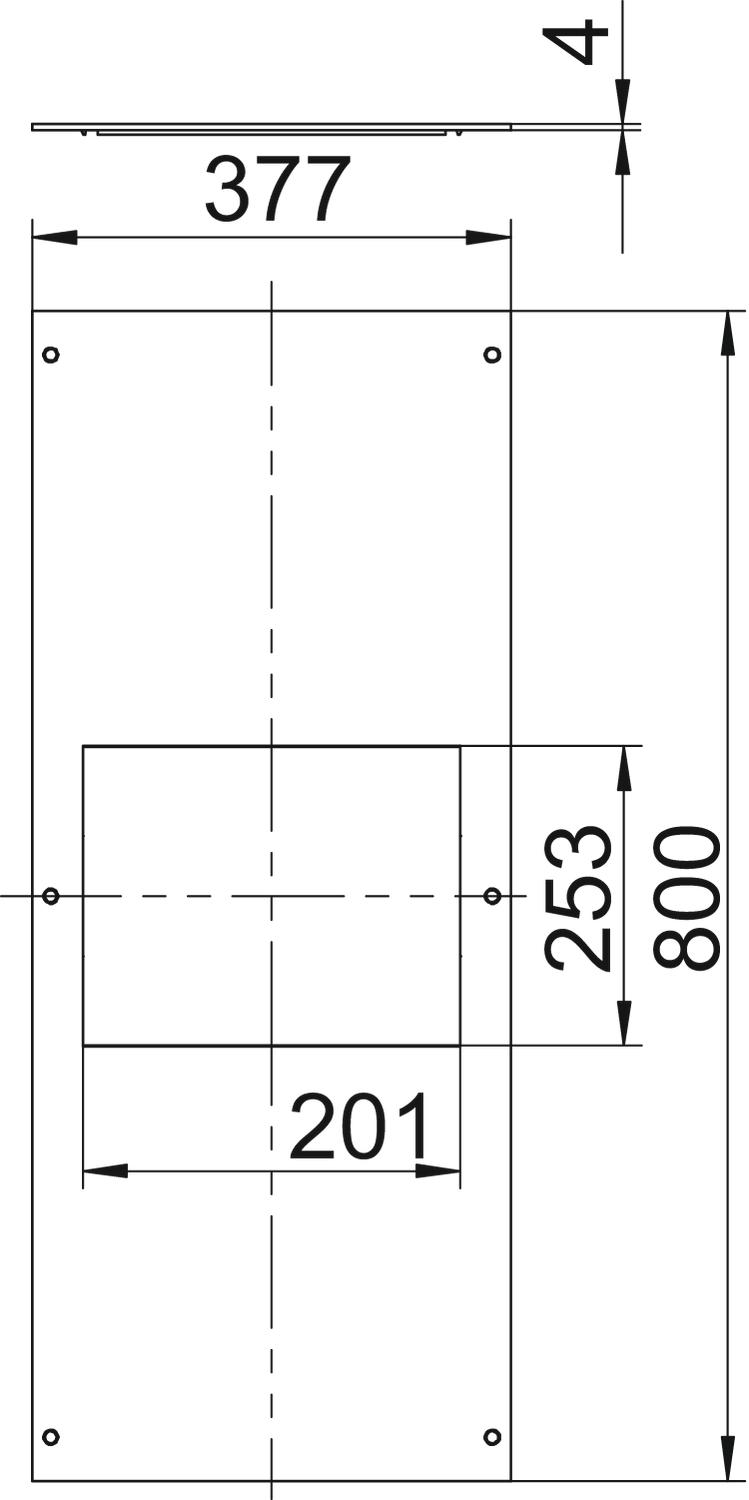

Dimensions
| Length | 800 mm |
|---|---|
| Width | 400 mm |
| Dimension A | 377 mm |
| Dimension b | 253 mm |
| Dimension a | 201 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Cover fastening, locking | no |
| Mounting opening | Rectangular |
| Mounting opening cover | yes |
| Number of mounting openings | 1 |
| Mounting opening | For service outlet |
| Dimension | 800x400x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
24,9692 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 24,9692 kg CO2e / 1 Piece |
|---|
