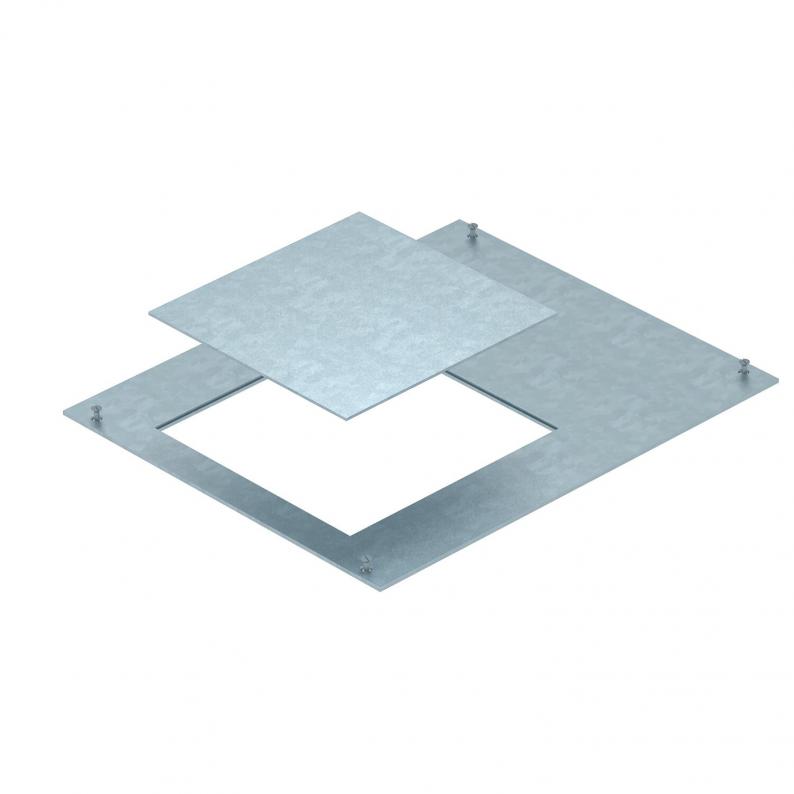

Mounting lid for GES9, 400 mm
Trench Part No. OKA D 500 9
|OBO Item No. 7425102
|EAN 4012195245469
Trench Part No.
OBO Item No.
Length
Width
Dimension a
Smallest selling unit: 1 piece
1piece
piece
Description
With mounting opening for the installation of an installation unit of nominal size 9. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
Technical data

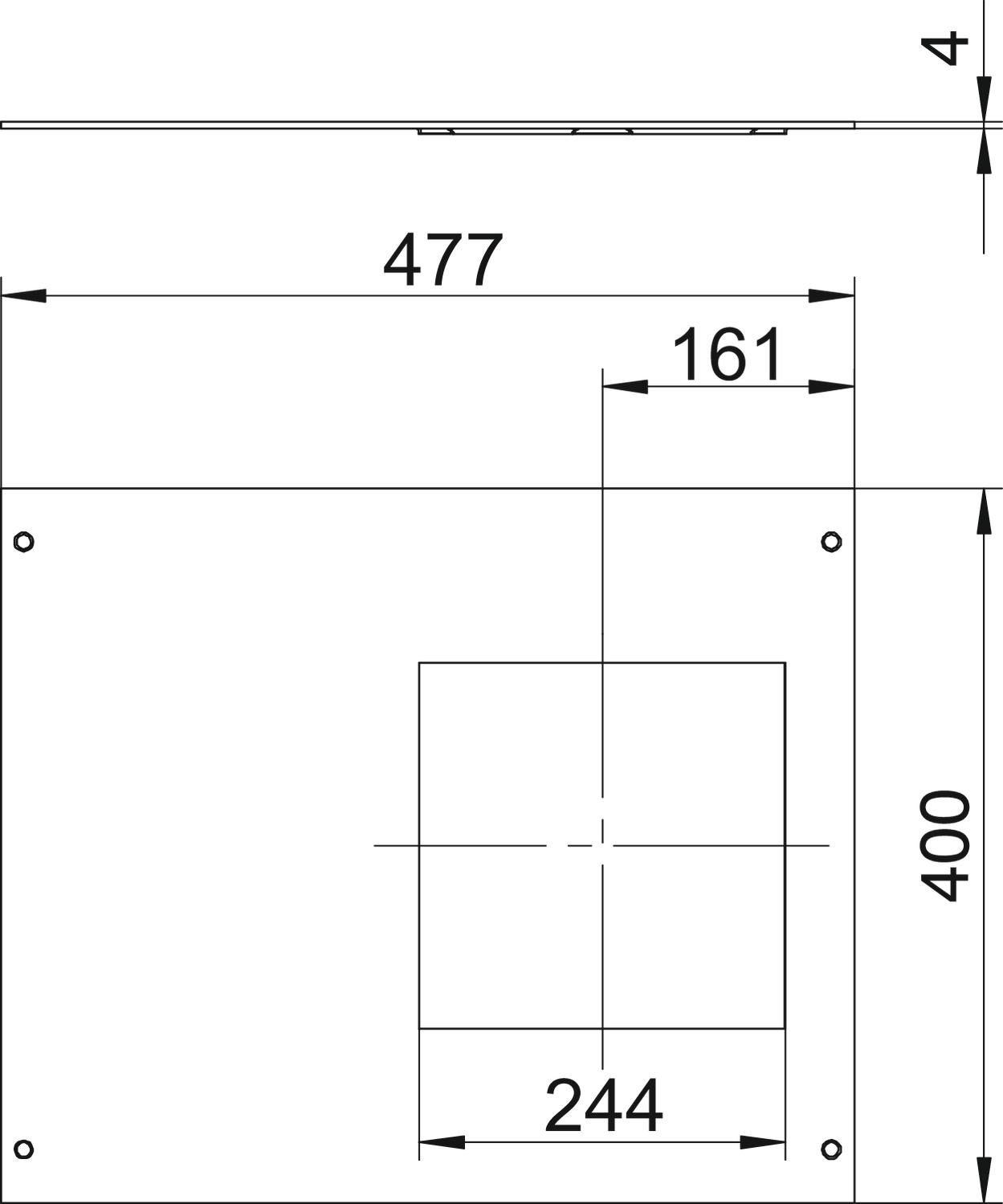

Dimensions
| Length | 400 mm |
|---|---|
| Width | 500 mm |
| Dimension A | 477 mm |
| Dimension a | 244 mm |
| Dimension c | 161 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Cover fastening, locking | no |
| Mounting opening | Square |
| Mounting opening cover | yes |
| Number of mounting openings | 1 |
| Dimension | 400x500x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
20,9015 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 20,9015 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Dimension a
OBO Item No.
OKA D 500 9
400
500
244
7425102
OKA D 600 9
400
600
244
7425104
