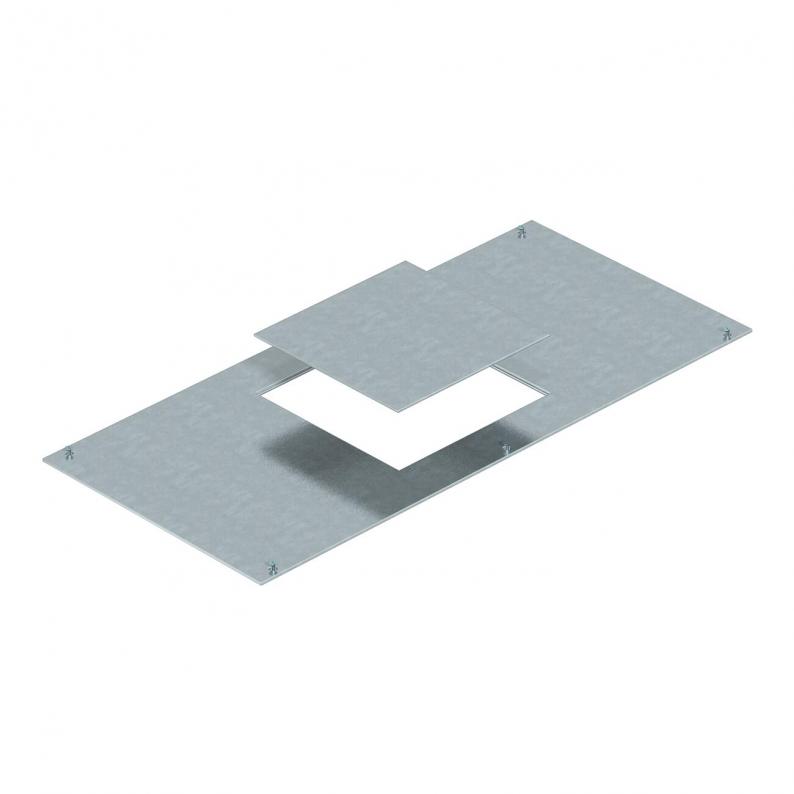

Mounting lid for GES9, 800 mm
Trench Part No. OKA DG9 400
|OBO Item No. 7402064
|EAN 4012195094142
Trench Part No.
OKA DG9 400
OBO Item No.
7402064
Length
800 mm
Width
400 mm
Dimension a
244 mm
Smallest selling unit: 1 piece
1piece
piece
Description
With mounting opening for the installation of an installation unit of nominal size 9. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
Technical data

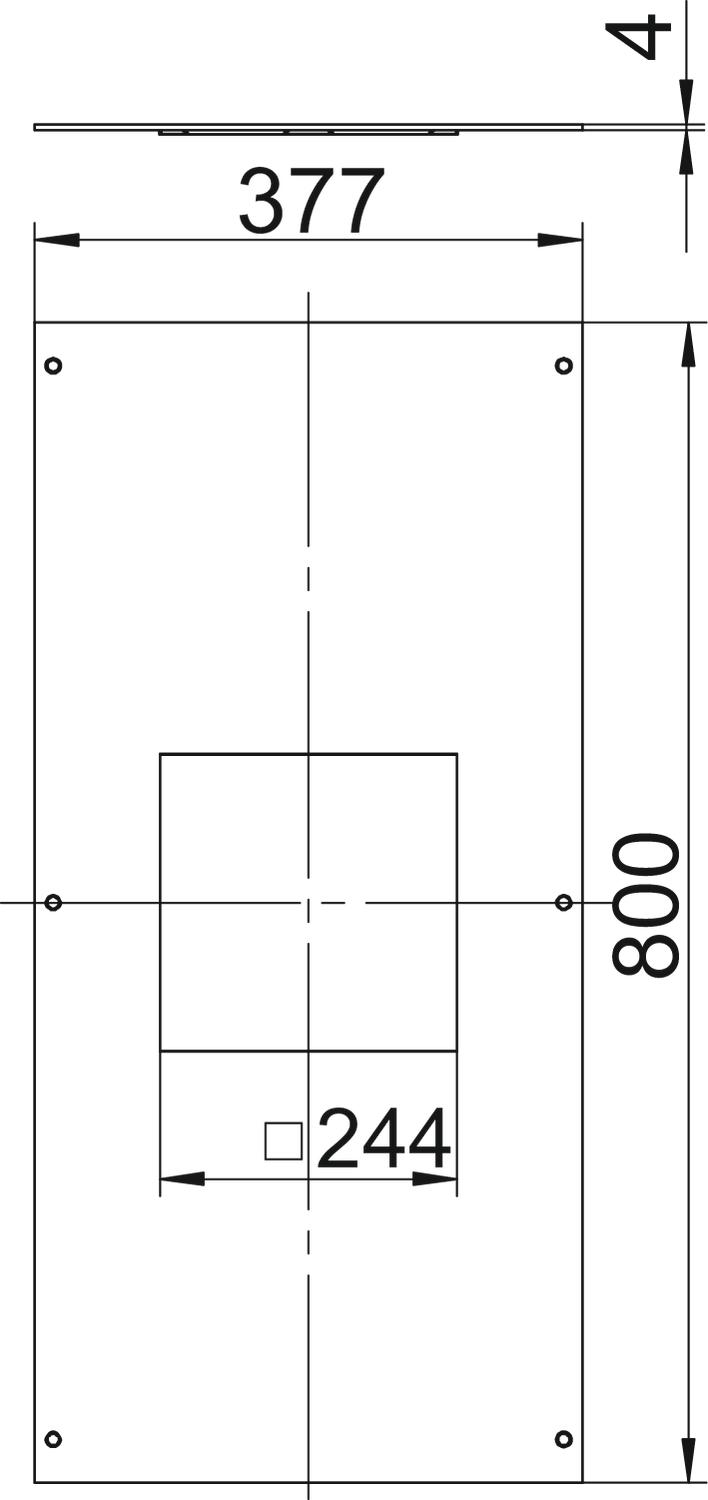

Dimensions
| Length | 800 mm |
|---|---|
| Width | 400 mm |
| Dimension A | 377 mm |
| Dimension a | 244 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Cover fastening, locking | no |
| Mounting opening | Square |
| Mounting opening cover | yes |
| Number of mounting openings | 1 |
| Mounting opening | For service outlet |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
25,1157 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 25,1157 kg CO2e / 1 Piece |
|---|
