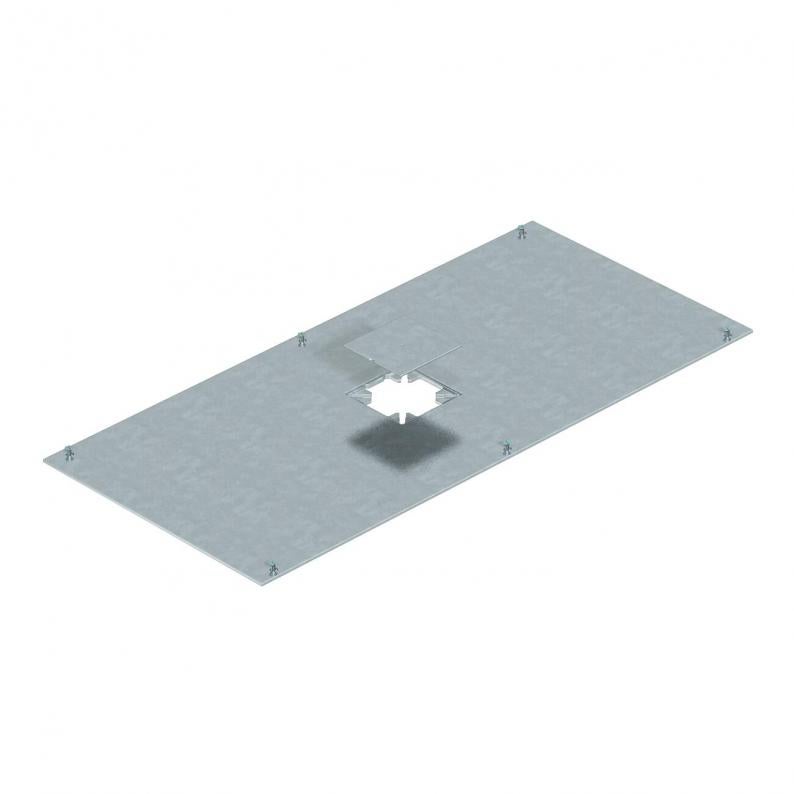

Mounting lid for Telitank top, 800 mm
Trench Part No. OKA DAT 300
|OBO Item No. 7401912
|EAN 4012195093664
Trench Part No.
OBO Item No.
Length
Width
Dimension a
Smallest selling unit: 1 piece
1piece
piece
Description
With mounting opening for the set-up of a Telitank. Mounting opening closed with blanking plate lid. Lid fixing screws contained in scope of delivery.
Technical data

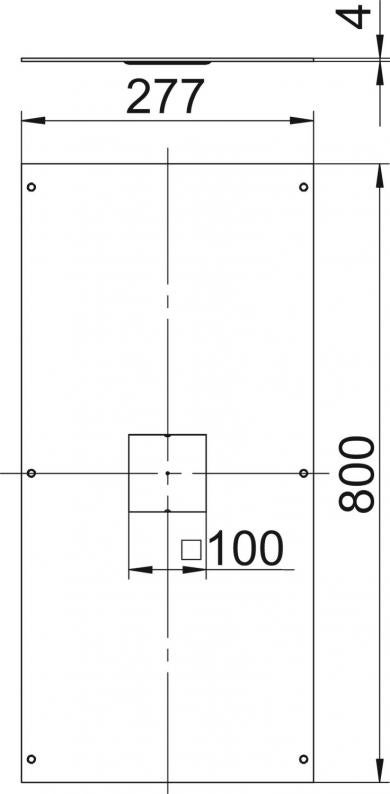

Dimensions
| Length | 800 mm |
|---|---|
| Width | 300 mm |
| Dimension A | 277 mm |
| Dimension a | 100 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Cover fastening, locking | yes |
| Mounting opening | Square |
| Number of mounting openings | 1 |
| Mounting opening | For Telitank installation |
| Dimension | 800x300x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
18,4855 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 18,4855 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Dimension a
OBO Item No.
OKA DAT 200
800
200
100
7401904
OKA DAT 300
800
300
100
7401912
OKA DAT 400
800
400
100
7401920
Width
OKA DAT 200
OBO Item No.
7401904
Length
800
Width
200
Dimension a
100
OKA DAT 300
OBO Item No.
7401912
Length
800
Width
300
Dimension a
100
OKA DAT 400
OBO Item No.
7401920
Length
800
Width
400
Dimension a
100
