Mounting plate for data technology, type LJUC
Trench Part No. MP 2R LJUC | OBO Item No. 7408812 | EAN 4012196460779
Trench Part No.
MP 2R LJUC
OBO Item No.
7408812
Number of installable devices
1
suitable for data connection module
Type LJUC
Smallest selling unit: 1 piece
1piece
Description
Mounting plate for receiving a data connection module type LJU6C.
Dimensions of a mounting opening in mm: 36.2 x 22.0.
Dimensions of a mounting opening in mm: 36.2 x 22.0.
Technical data

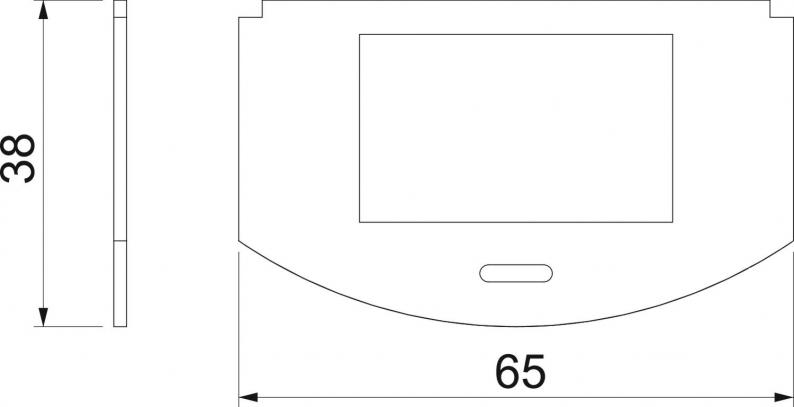

Dimensions
| Length | 65 mm |
|---|---|
| Width | 36 mm |
Technical data
| Labelling panel | no |
|---|---|
| Device type | Data technology |
| Application | Mounting box |
| Number of installable devices | 1 |
| Blanking lid | no |
| Installation technology | Miscellaneous |
| Number of single openings | 1 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Fastening type | Lockable |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2058 kg CO2e / 1 Piece |
| suitable for data connection module | Type LJUC |
