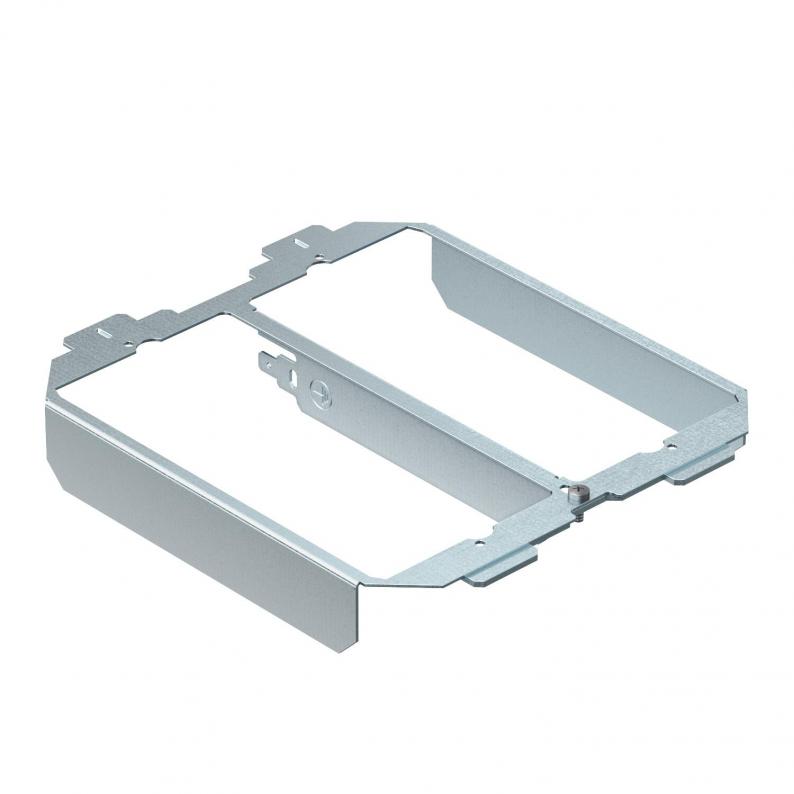

Mounting support, nominal size 4 and R4, for APMT2 cover plates
Trench Part No. MT 4R4 AP 2
|OBO Item No. 7407748
|EAN 4012195112969
Trench Part No.
MT 4R4 AP 2
OBO Item No.
7407748
Smallest selling unit: 1 piece
1piece
piece
Description
Mounting support for accepting APMT2 cover plates, which aid the installation of accessories in installation units of nominal sizes 4 and R4.
Technical data

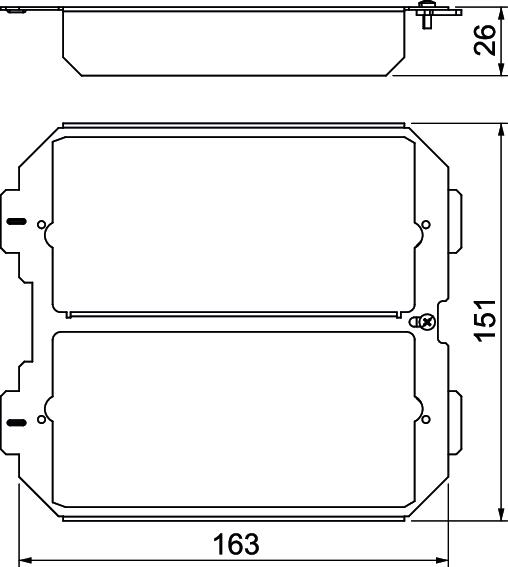

Dimensions
| Length | 151 mm |
|---|---|
| Width | 163 mm |
| Height | 26 mm |
Technical data
| Number of installable devices | 4 |
|---|---|
| Number of single openings | 2 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
0,8191 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8191 kg CO2e / 1 Piece |
|---|
