Mounting support, nominal size 6, for APMT2 cover plates
Trench Part No. MT 6 AP2
|OBO Item No. 7407752
|EAN 4012195112976
Trench Part No.
MT 6 AP2
OBO Item No.
7407752
Smallest selling unit: 1 piece
1piece
piece
Description

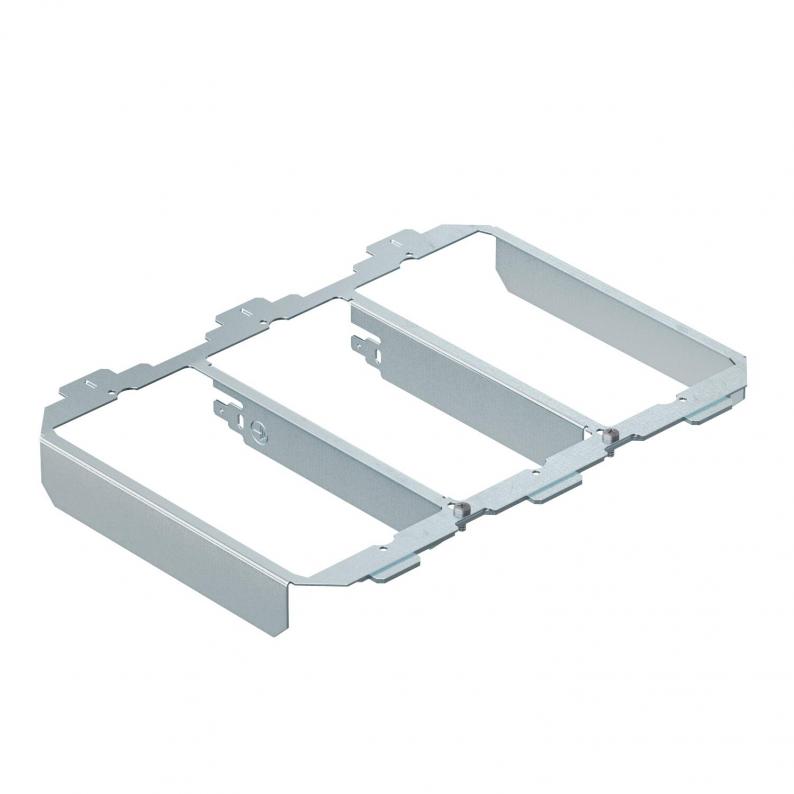

Mounting support for accepting three APMT2 cover plates, which aid the installation of accessories in installation units of nominal size 6.
Technical data

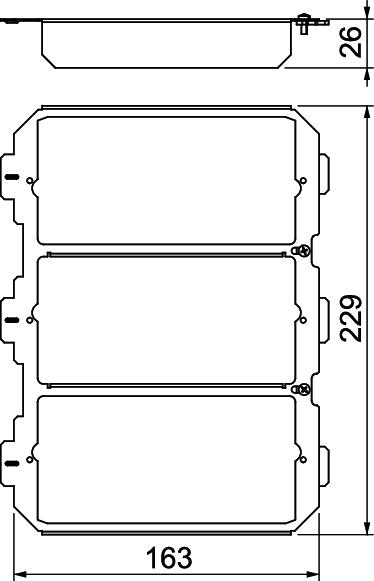

Dimensions
| Length | 229 mm |
|---|---|
| Width | 163 mm |
| Height | 26 mm |
Technical data
| Number of installable devices | 6 |
|---|---|
| Number of single openings | 3 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
1,113 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,113 kg CO2e / 1 Piece |
|---|
