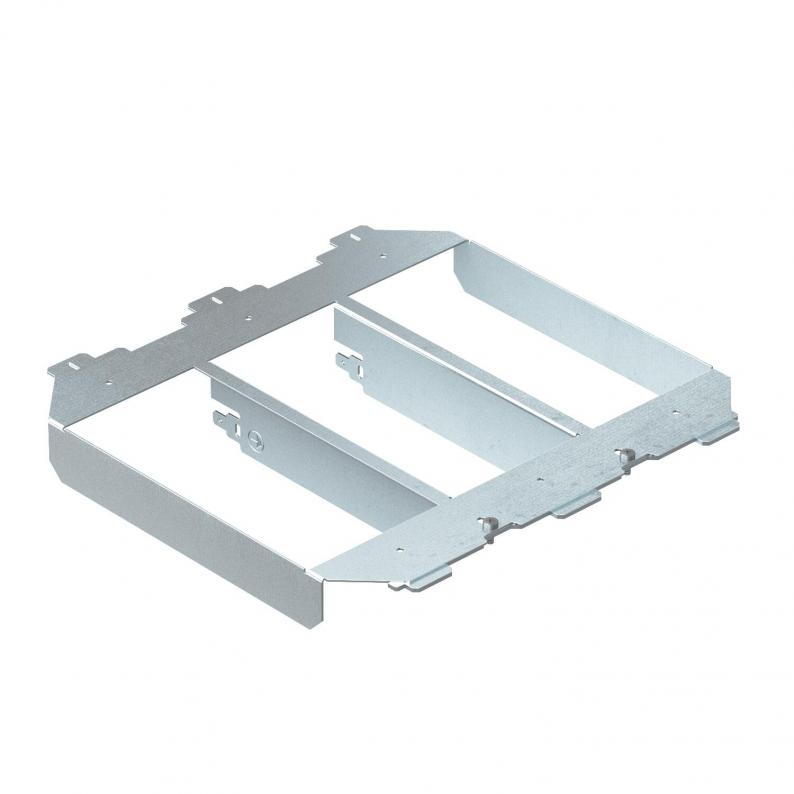

Mounting support, nominal size 9 and R9, for APMT5 cover plates
Trench Part No. MT 9R9 AP 5 | OBO Item No. 7407756 | EAN 4012195112983
Trench Part No.
MT 9R9 AP 5
OBO Item No.
7407756
Smallest selling unit: 1 piece
1piece
Description
Mounting support for accepting three APMT5 cover plates, which aid the installation of accessories in installation units of nominal size 9.
Technical data

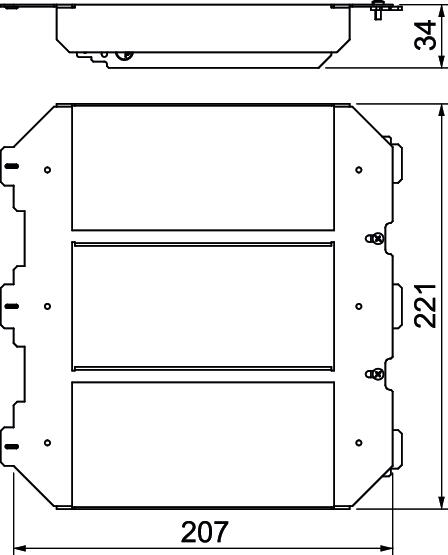

Dimensions
| Length | 221 mm |
|---|---|
| Width | 207 mm |
| Height | 35 mm |
Technical data
| Number of installable devices | 6 |
|---|---|
| Number of single openings | 3 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4362 kg CO2e / 1 Piece |
