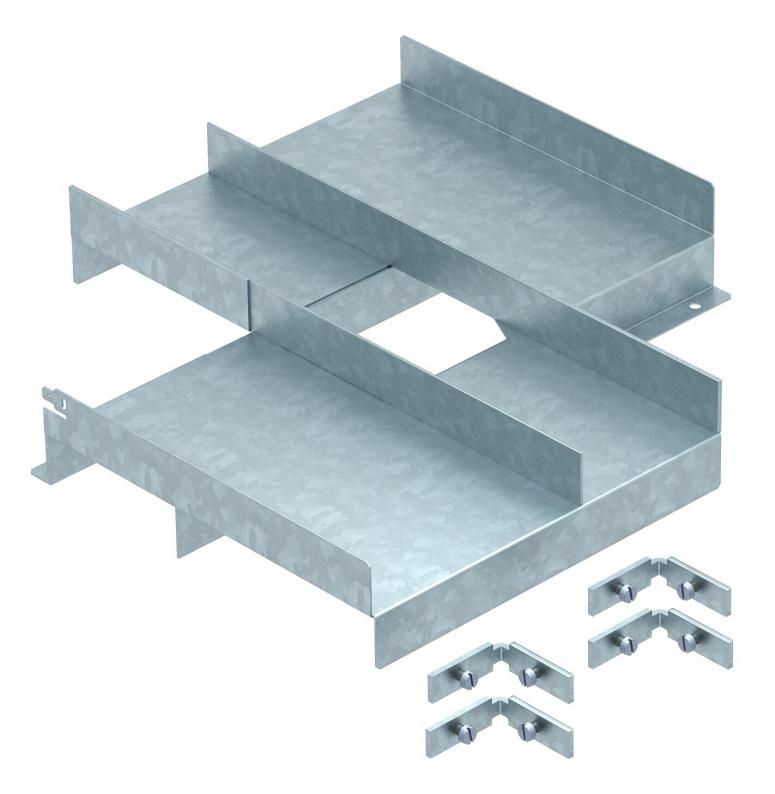

OKA-T separating element, intersection for trunking width 300 mm on 300 mm
Trench Part No. OKA CC3 30030065
|OBO Item No. 7404340
|EAN 4012195099772
Trench Part No.
OKA CC3 30030065
OBO Item No.
7404340
Smallest selling unit: 1 piece
1piece
piece
Description
Separating element for a three-compartment cross branch of OKA-T flushfloor trunking systems of width 300 mm.
Technical data
Dimensions
| Width | 300 mm |
|---|---|
| Dimension A | 300 mm |
| Dimension B | 300 mm |
Technical data
| ROHS-conformant | Exempt |
|---|---|
| Duct height, min. | 65 mm |
| Surface | Strip galvanised |
| Material | Steel |
| Product series | OKA Series |
Environmental Data
5,0684 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,0684 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 50684 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
