OKA-T separating element, intersection for trunking width 400 mm with 300 mm
Trench Part No. OKA CC3 40030065
|OBO Item No. 7402334
|EAN 4012195095033
Trench Part No.
OKA CC3 40030065
OBO Item No.
7402334
Smallest selling unit: 1 piece
1piece
piece
Description

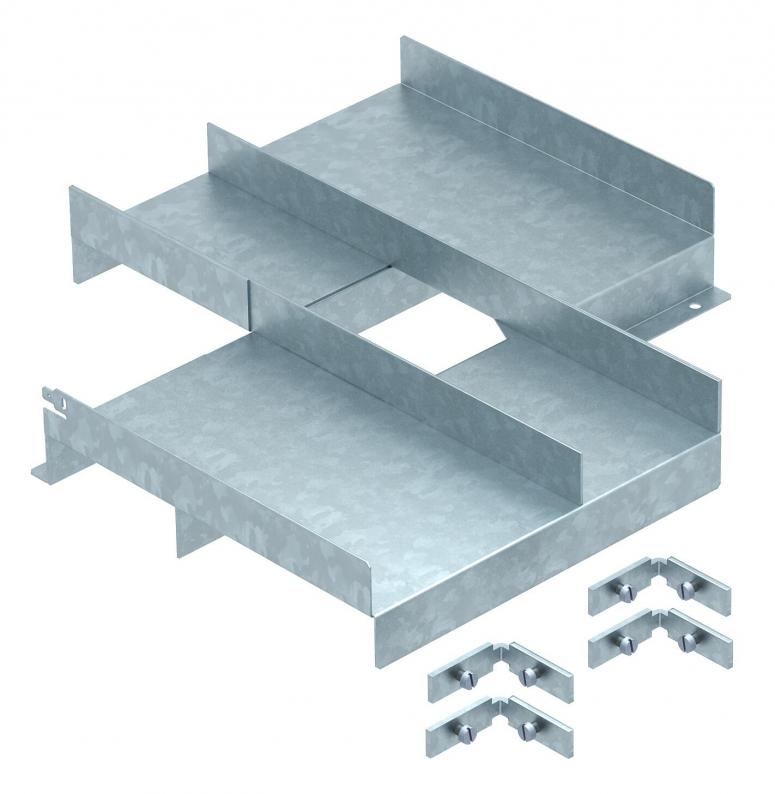

Separating element for a three-compartment cross branch of flushfloor OKA-T trunking systems of width 300 mm.
Technical data

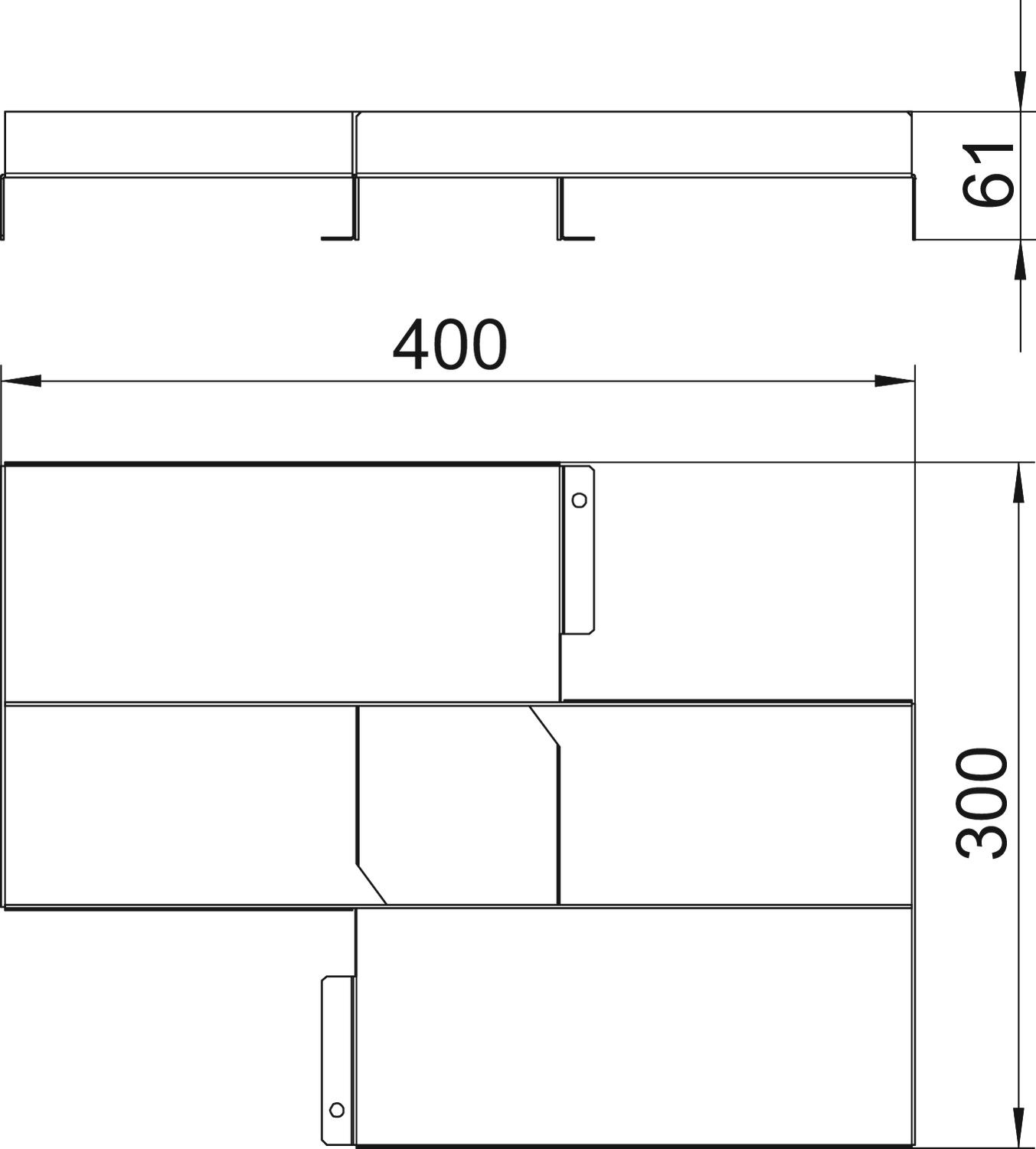

Dimensions
| Dimension A | 300 mm |
|---|---|
| Dimension B | 400 mm |
Technical data
| Duct height, min. | 65 mm |
|---|---|
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
5,03 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,03 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
OBO Item No.
OKA CC3 40030065
7402334
OKA CC3 40030065
OBO Item No.
7402334
