OKA-T trunking cover with GES9 mounting opening
Trench Part No. OKAT DG 9 300 | OBO Item No. 7402549 | EAN 4012195407485



Trench Part No.
OKAT DG 9 300
OBO Item No.
7402549
Smallest selling unit: 1 piece
1piece
Description

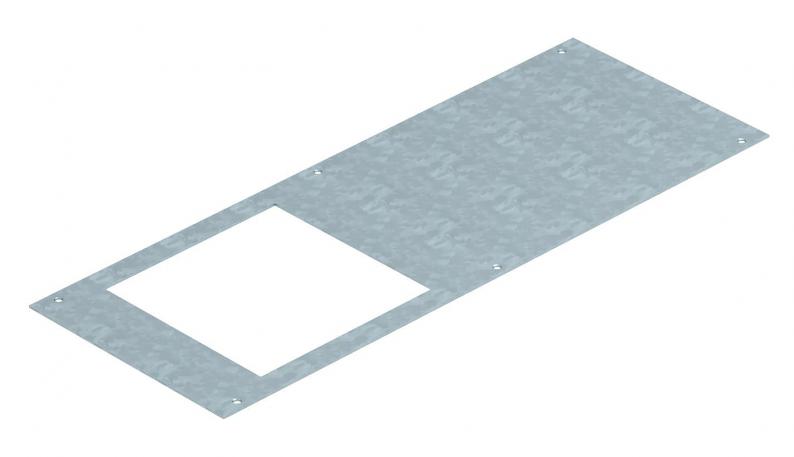

Trunking cover for flushfloor OKA-T trunking system with installation opening for installation units of nominal size 9.
Technical data

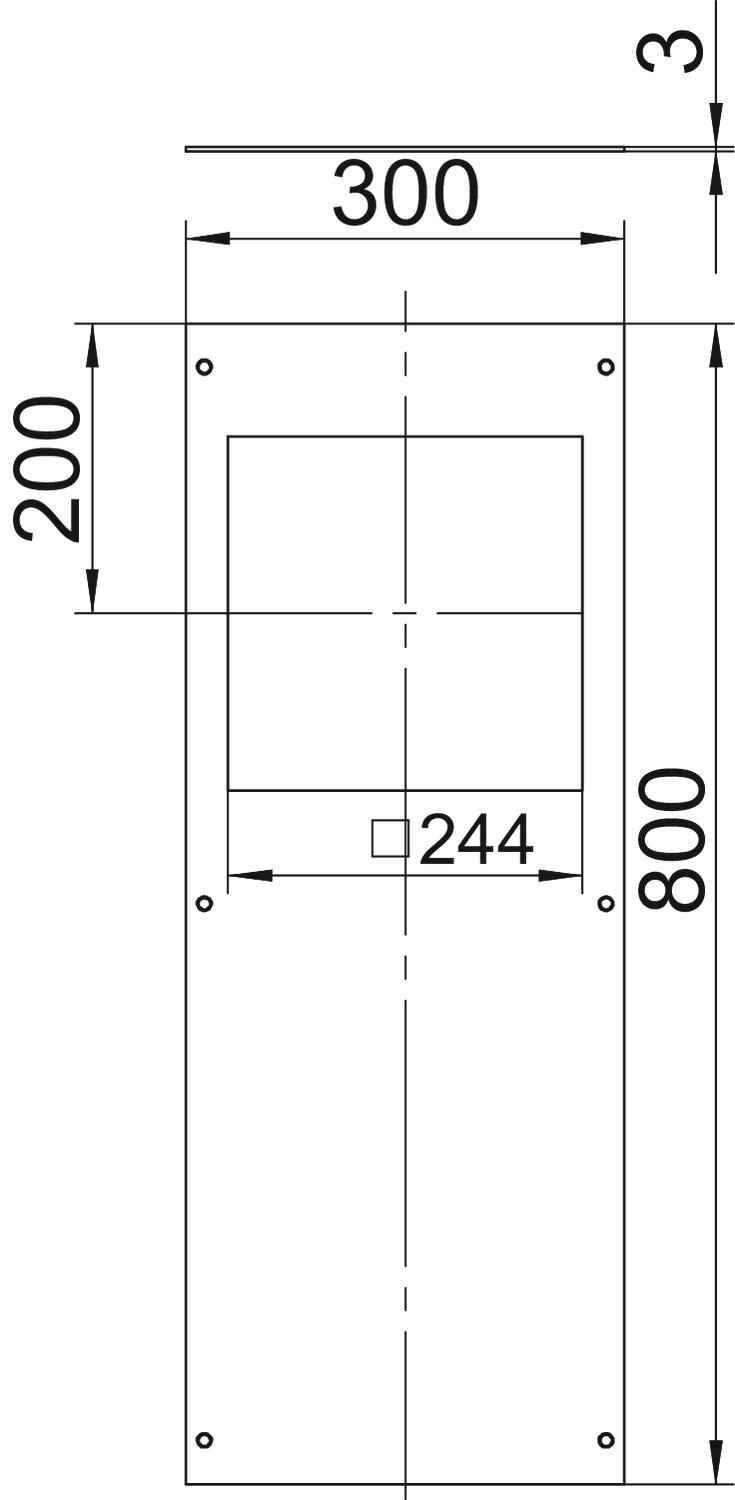

Dimensions
| Length | 800 mm |
|---|---|
| Width | 300 mm |
| Dimension A | 303 mm |
| Dimension a | 244 mm |
Technical data
| Dimension | 800x300x3 |
|---|---|
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,7654 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Length
Width
Dimension a
OBO Item No.
OKAT DG 9 300
800
300
244
7402549
OKAT DG 9 300
OBO Item No.
7402549
Length
800
Width
300
Dimension a
244
