Pre Galvanised Heavy Duty Cable Tray Lengths

Pre Galvanised Heavy Duty Cable Tray Lengths

Trench Part No. HDT050TR | OBO Item No. 7902201 | EAN 5056771506086

Show all variants
Trench Part No.
OBO Item No.
Length
Width
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsVariants

Description

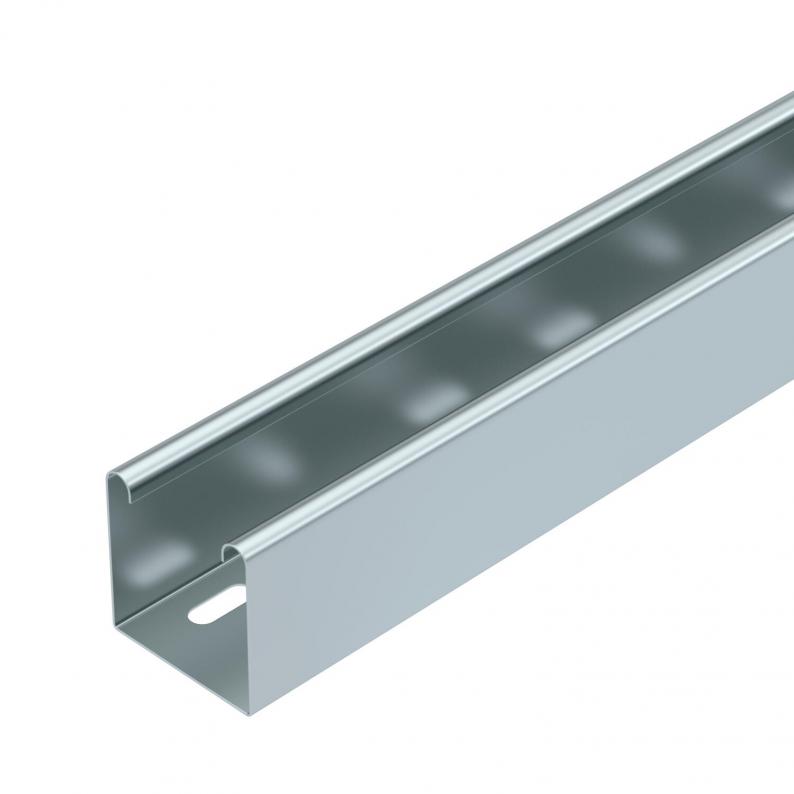

Heavy Duty Cable Tray 3m Pre Galvanised

Technical data

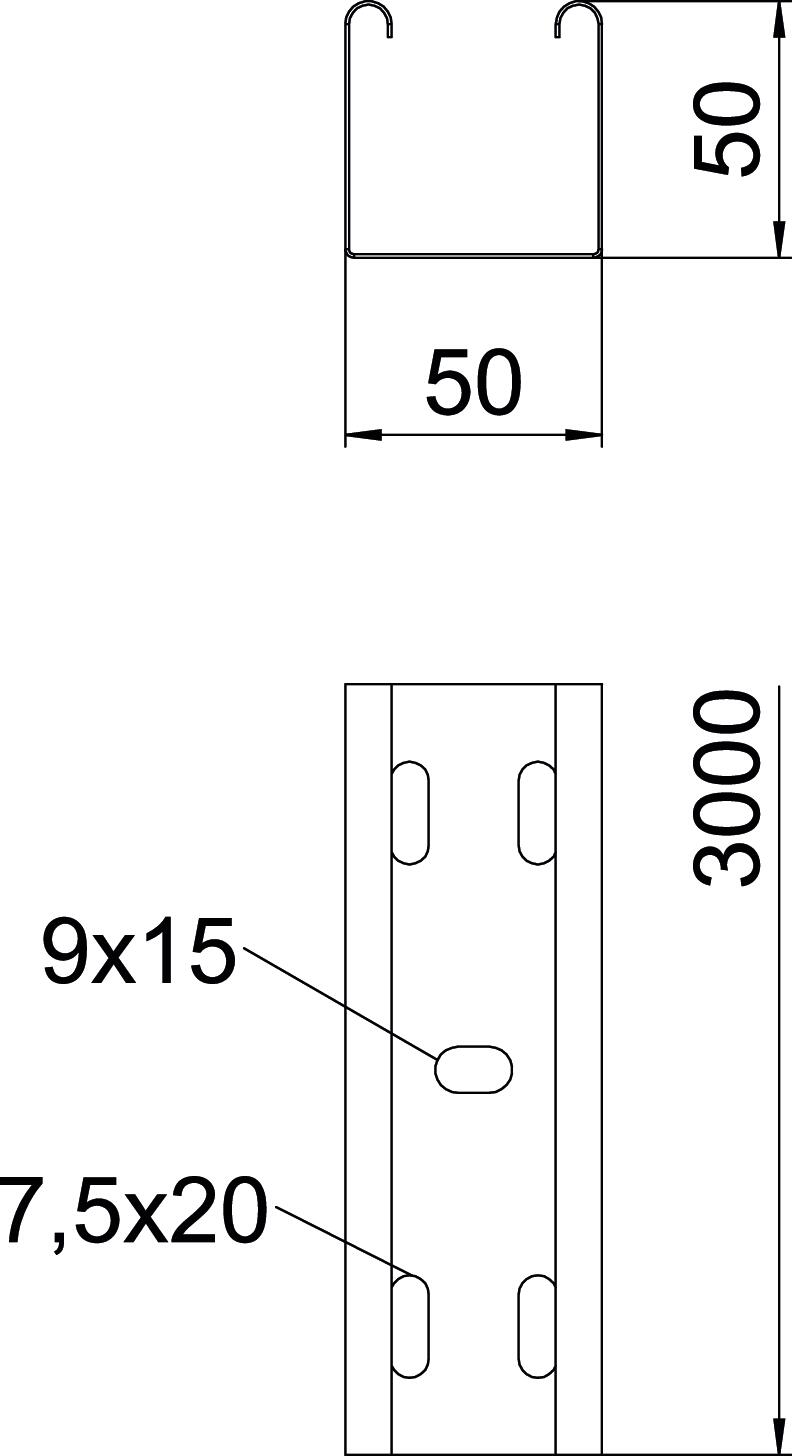

Dimensions

Length3000 mm
Width50 mm
Height50 mm

Technical data

Connector versionWithout connectors
Dimension3000x50x50
SurfaceStrip galvanized
MaterialSteel
Type of connector, cable support systemScrewed

Loads

Support spacing 2.0 m0.69 kN/m
Support spacing 2.5 m0.39 kN/m
Support spacing 1.5 m1.08 kN/m

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (2)

Variants

Width
HDT050TR
OBO Item No.
7902201
Length
3000
Width
50
Surface
Strip galvanized
Material
Steel
HDT075TR
OBO Item No.
7902204
Length
3000
Width
75
Surface
Strip galvanized
Material
Steel
HDT100TR
OBO Item No.
7902207
Length
3000
Width
100
Surface
Strip galvanized
Material
Steel
HDT150TR
OBO Item No.
7902210
Length
3000
Width
150
Surface
Strip galvanized
Material
Steel
HDT225TR
OBO Item No.
7902213
Length
3000
Width
225
Surface
Strip galvanized
Material
Steel
HDT300TR
OBO Item No.
7902216
Length
3000
Width
300
Surface
Strip galvanized
Material
Steel
HDT450TR
OBO Item No.
7902219
Length
3000
Width
450
Surface
Strip galvanized
Material
Steel
HDT600TR
OBO Item No.
7902222
Length
3000
Width
600
Surface
Strip galvanized
Material
Steel
HDT750TR
OBO Item No.
7902225
Length
3000
Width
750
Surface
Strip galvanized
Material
Steel
HDT900TR
OBO Item No.
7902228
Length
3000
Width
900
Surface
Strip galvanized
Material
Steel
