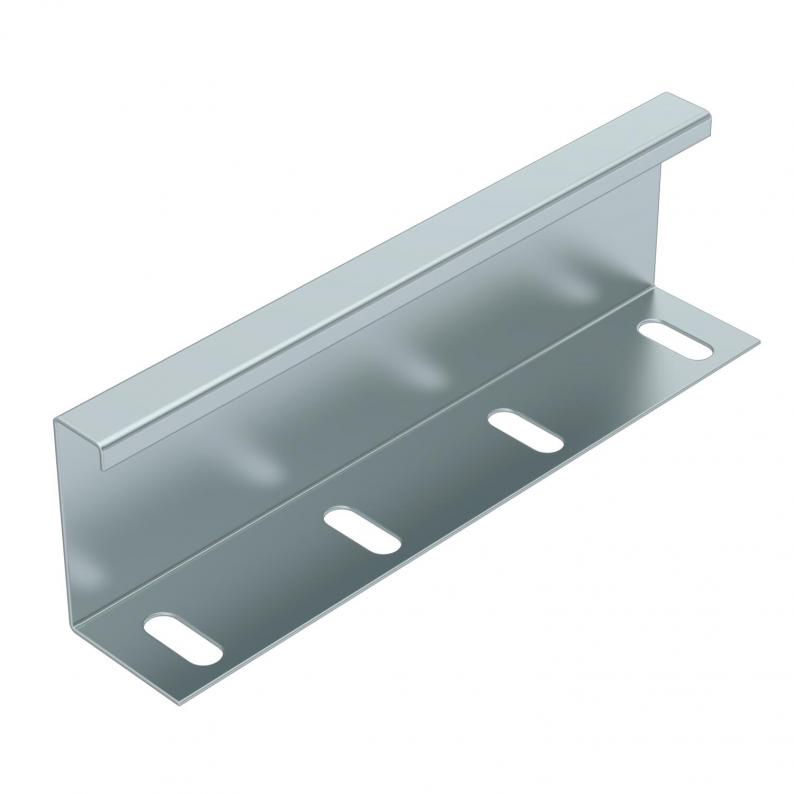

Pre Galvanised Heavy Duty Cable Tray Wrapover Couplers
Trench Part No. HDTSC | OBO Item No. 7902321 | EAN 5056771506482
Trench Part No.
HDTSC
OBO Item No.
7902321
Smallest selling unit: 2 piece
2piece
Description
Straight Couplers to suit Heavy Duty Cable Tray Pre Galvanised
Technical data

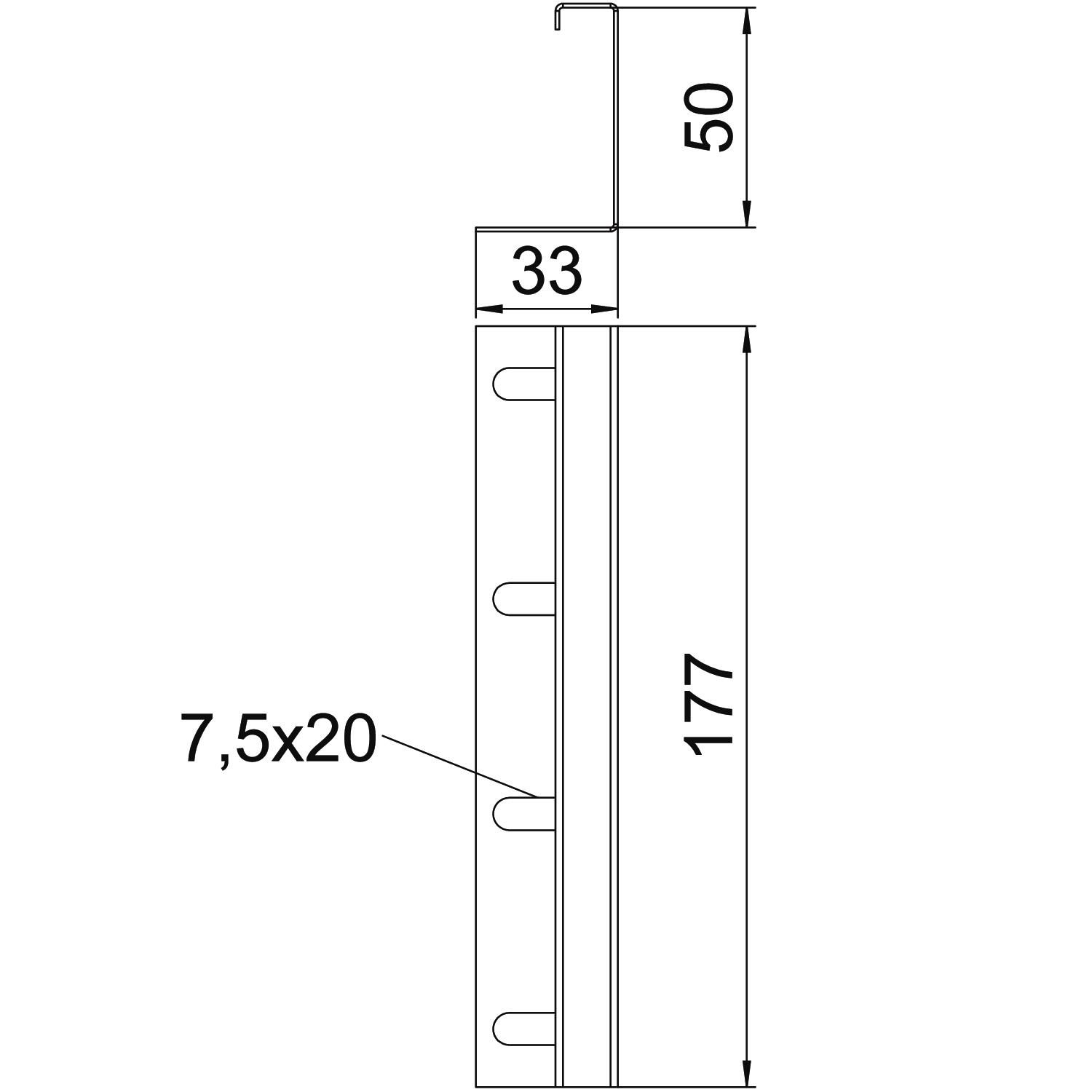

Dimensions
| Length | 177 mm |
|---|---|
| Width | 33 mm |
| Height | 50 mm |
Technical data
| Dimension | 33 x 50 |
|---|---|
| Suitable for cable tray system height | 50 mm |
| Version for | Straight connector |
| Dimension | 33x50 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Width
Height
OBO Item No.
HDTSC
33
50
7902321
HDTSC
OBO Item No.
7902321
Width
33
Height
50
