Pre Galvanised Light Duty Cable Tray Lengths
Trench Part No. LDT050TR | OBO Item No. 7900066 | EAN 5056771500541
Trench Part No.
OBO Item No.
Length
Width
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
Description

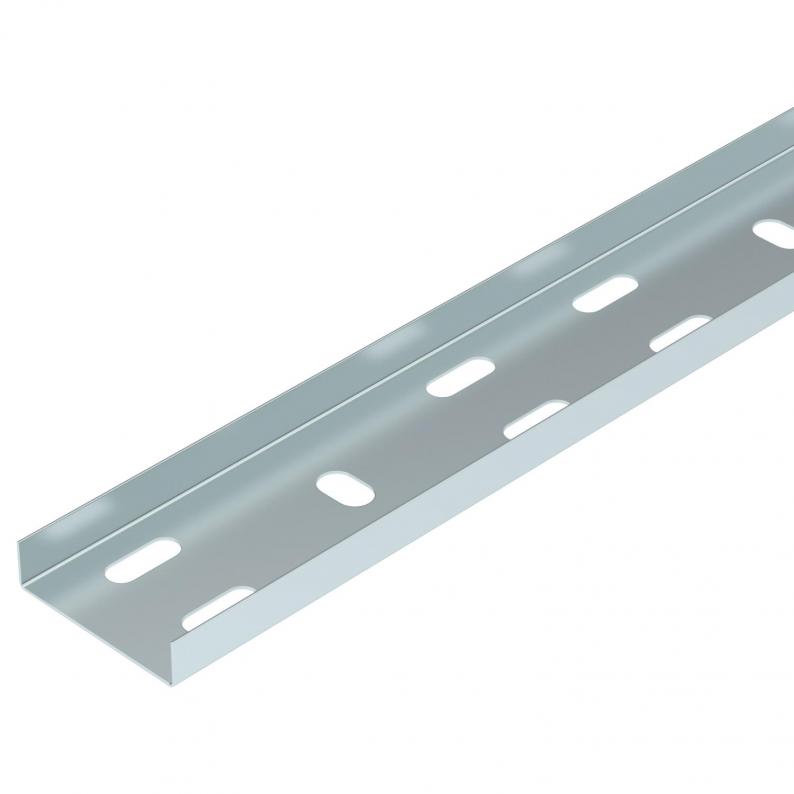

Light Duty Cable Tray 3m Pre Galvanised
Technical data

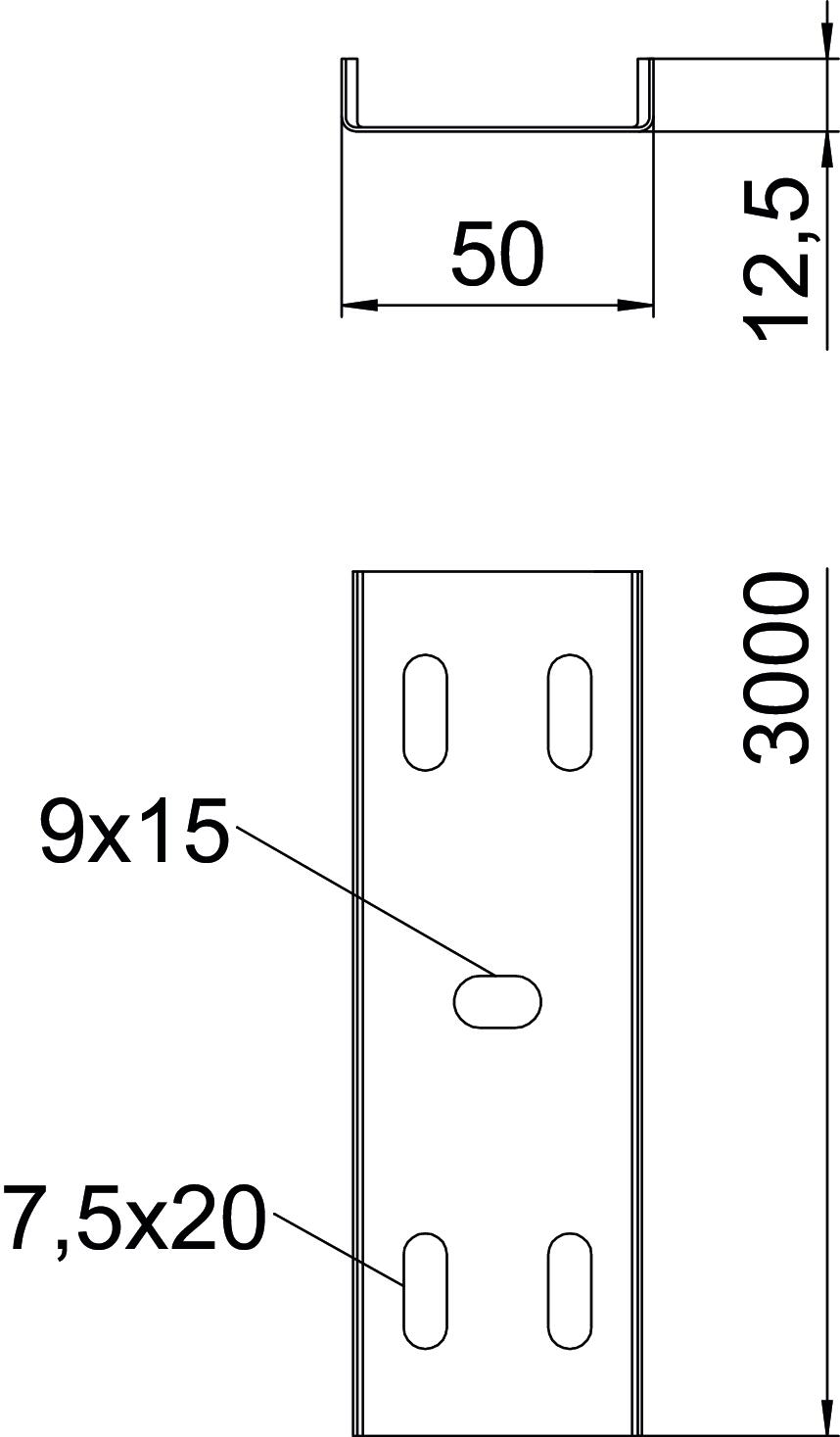

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 12.5 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Dimension | 3000x50x12,5 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 1.0 m | 0.1 kN/m |
|---|---|
| Support spacing 1.5 m | 0.05 kN/m |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Length
Width
Surface
Material
OBO Item No.
LDT050TR
3000
50
Strip galvanized
Steel
7900066
LDT075TR
3000
75
Strip galvanized
Steel
7900069
LDT100TR
3000
100
Strip galvanized
Steel
7900072
LDT150TR
3000
150
Strip galvanized
Steel
7900075
LDT225TR
3000
225
Strip galvanized
Steel
7900078
LDT300TR
3000
300
Strip galvanized
Steel
7900081
LDT450TR
3000
450
Strip galvanized
Steel
7900084
LDT600TR
3000
600
Strip galvanized
Steel
7900087
Width
LDT050TR
OBO Item No.
7900066
Length
3000
Width
50
Surface
Strip galvanized
Material
Steel
LDT075TR
OBO Item No.
7900069
Length
3000
Width
75
Surface
Strip galvanized
Material
Steel
LDT100TR
OBO Item No.
7900072
Length
3000
Width
100
Surface
Strip galvanized
Material
Steel
LDT150TR
OBO Item No.
7900075
Length
3000
Width
150
Surface
Strip galvanized
Material
Steel
LDT225TR
OBO Item No.
7900078
Length
3000
Width
225
Surface
Strip galvanized
Material
Steel
LDT300TR
OBO Item No.
7900081
Length
3000
Width
300
Surface
Strip galvanized
Material
Steel
LDT450TR
OBO Item No.
7900084
Length
3000
Width
450
Surface
Strip galvanized
Material
Steel
LDT600TR
OBO Item No.
7900087
Length
3000
Width
600
Surface
Strip galvanized
Material
Steel
