Pre Galvanised Medium Duty Cable Tray 45 Degree Flat Bend

Pre Galvanised Medium Duty Cable Tray 45 Degree Flat Bend

Trench Part No. MDT050HB | OBO Item No. 7900800 | EAN 5056771502408

Show all variants
Trench Part No.
OBO Item No.
Width
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

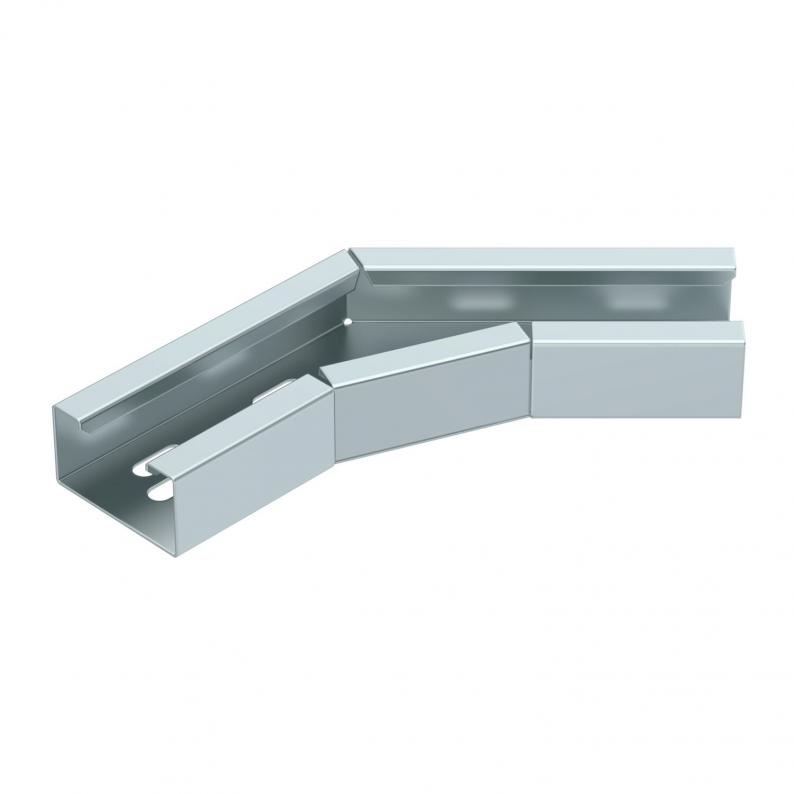

45 Degree Flat Bend to suit Medium Duty Cable Tray Pre Galvanised

Technical data

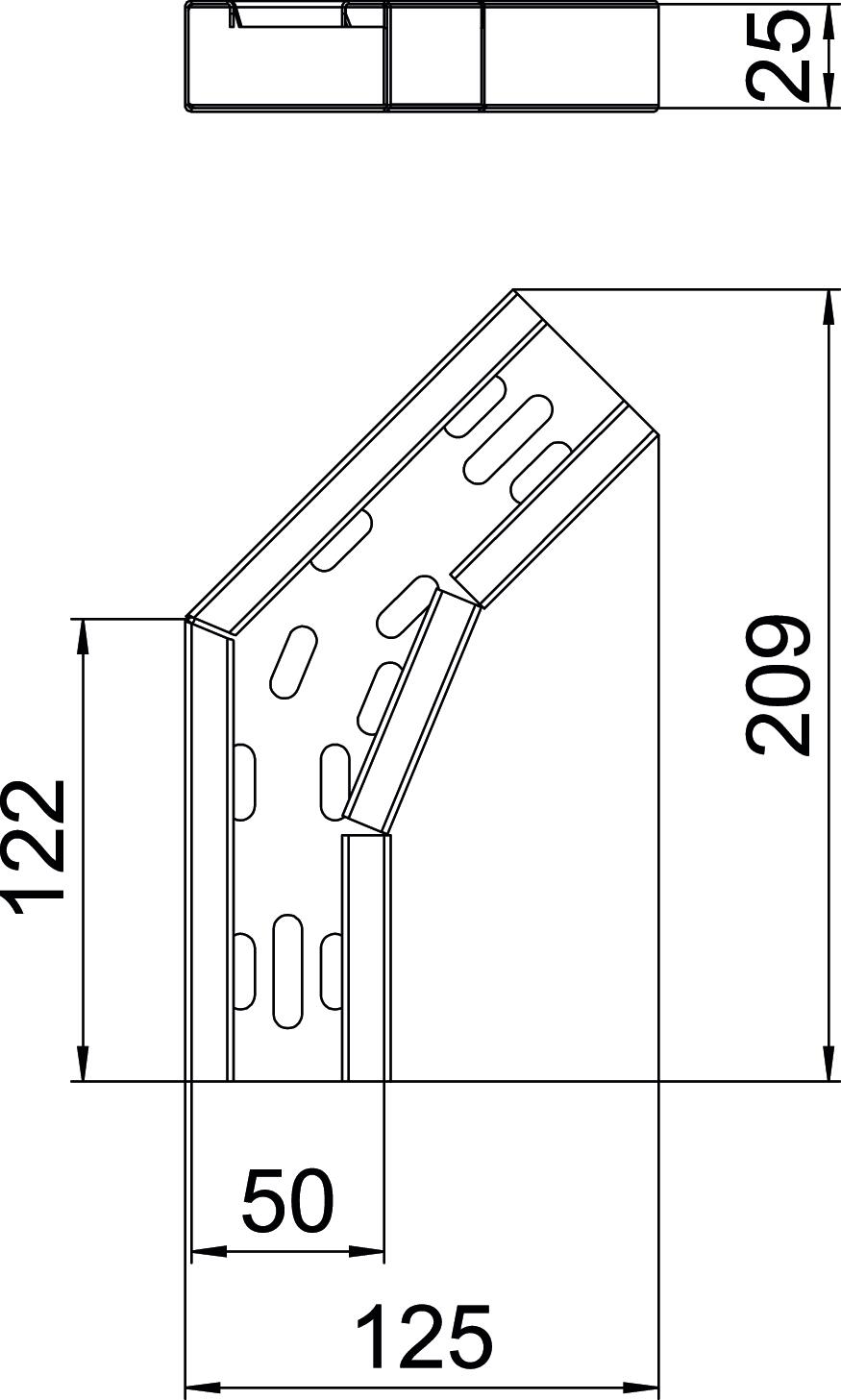

Dimensions

Length173.9 mm
Width50 mm
Height25 mm

Technical data

Bend (angle)45°
Dimension50x25
SurfaceStrip galvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (2)

Variants

Width
MDT050HB
OBO Item No.
7900800
Width
50
Surface
Strip galvanized
Material
Steel
MDT075HB
OBO Item No.
7900803
Width
75
Surface
Strip galvanized
Material
Steel
MDT100HB
OBO Item No.
7900806
Width
100
Surface
Strip galvanized
Material
Steel
MDT150HB
OBO Item No.
7900809
Width
150
Surface
Strip galvanized
Material
Steel
MDT225HB
OBO Item No.
7900812
Width
225
Surface
Strip galvanized
Material
Steel
MDT300HB
OBO Item No.
7900815
Width
300
Surface
Strip galvanized
Material
Steel
MDT450HB
OBO Item No.
7900818
Width
450
Surface
Strip galvanized
Material
Steel
MDT600HB
OBO Item No.
7900821
Width
600
Surface
Strip galvanized
Material
Steel
MDT750HB
OBO Item No.
7900824
Width
750
Surface
Strip galvanized
Material
Steel
MDT900HB
OBO Item No.
7900827
Width
900
Surface
Strip galvanized
Material
Steel
