Pre Galvanised Medium Duty Cable Tray Lengths

Pre Galvanised Medium Duty Cable Tray Lengths

Trench Part No. MDT050TR | OBO Item No. 7900926 | EAN 5056771502842

Show all variants
Trench Part No.
OBO Item No.
Length
Width
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsVariants

Description

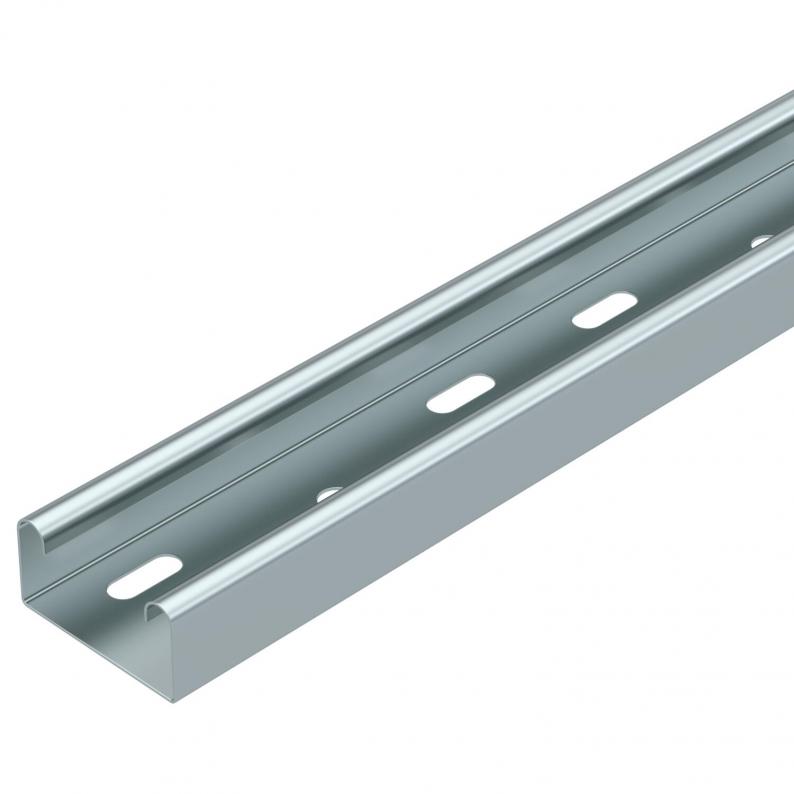

Punched MDT cable tray system in a medium version with a side height of 25 mm.

Technical data

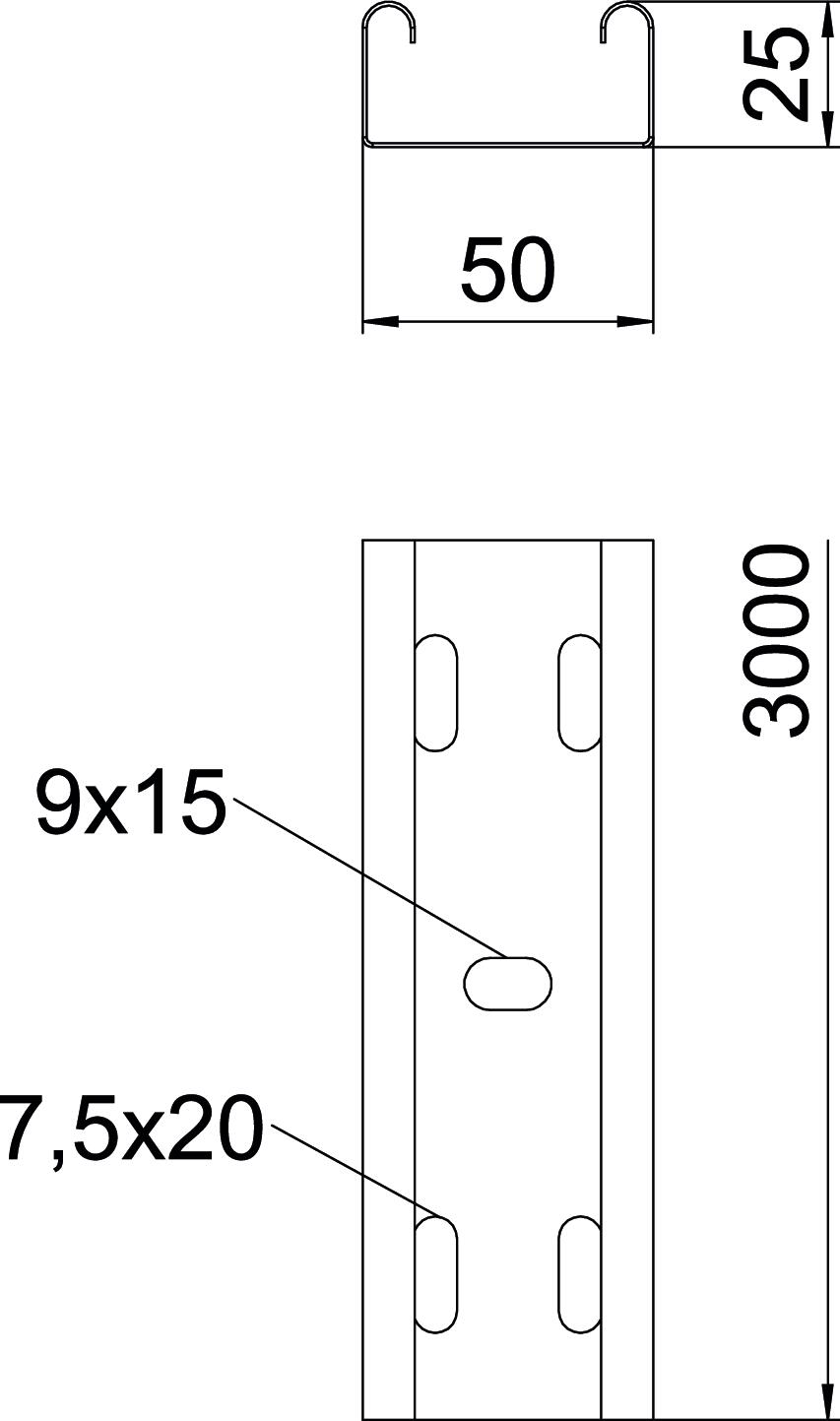

Dimensions

Length3000 mm
Width50 mm
Height25 mm

Technical data

Connector versionWithout connectors
Dimension3000x50x25
SurfaceStrip galvanized
MaterialSteel
Type of connector, cable support systemScrewed

Loads

Support spacing 2.0 m0.2 kN/m
Support spacing 1.0 m0.69 kN/m
Support spacing 1.5 m0.44 kN/m

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (2)

Variants

Width
MDT050TR
OBO Item No.
7900926
Length
3000
Width
50
Surface
Strip galvanized
Material
Steel
MDT075TR
OBO Item No.
7900929
Length
3000
Width
75
Surface
Strip galvanized
Material
Steel
MDT100TR
OBO Item No.
7900932
Length
3000
Width
100
Surface
Strip galvanized
Material
Steel
MDT150TR
OBO Item No.
7900935
Length
3000
Width
150
Surface
Strip galvanized
Material
Steel
MDT225TR
OBO Item No.
7900938
Length
3000
Width
225
Surface
Strip galvanized
Material
Steel
MDT300TR
OBO Item No.
7900941
Length
3000
Width
300
Surface
Strip galvanized
Material
Steel
MDT450TR
OBO Item No.
7900944
Length
3000
Width
450
Surface
Strip galvanized
Material
Steel
MDT600TR
OBO Item No.
7900947
Length
3000
Width
600
Surface
Strip galvanized
Material
Steel
MDT750TR
OBO Item No.
7900950
Length
3000
Width
750
Surface
Strip galvanized
Material
Steel
MDT900TR
OBO Item No.
7900953
Length
3000
Width
900
Surface
Strip galvanized
Material
Steel
