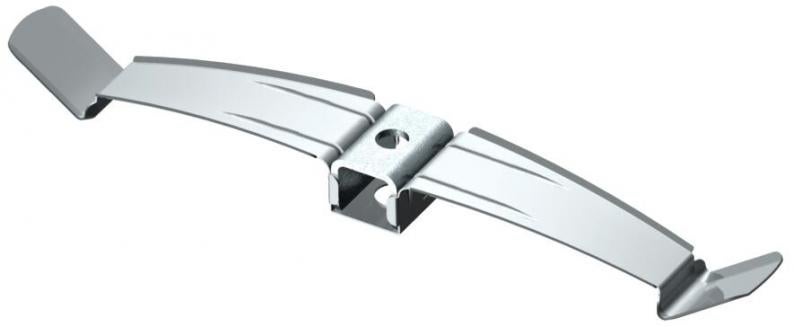

Pressure clip for 10 cables
Trench Part No. 2034 M A2
|OBO Item No. 2204010
|EAN 4012195210672
Trench Part No.
2034 M A2
OBO Item No.
2204010
No. of conductors NYM 3 x 1.5
10
Smallest selling unit: 50 piece
50piece
piece
Description
The metal pressure clip is halogen and fire load-free, and maintains a good mechanical stability even in fires. The pressure clip is also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 Part 12. The spacer 2033 D 15 x 3 G (must be ordered separately) increases the clamping height of pressure clips from 10 to 13 mm. The pressure clips are suitable for fireproof mounting above suspended fire protection ceilings in accordance with DIN 4102.
Technical data
Technical data
| Maintain electrical functions | yes |
|---|---|
| No. of conductors NYM 3 x 1.5 | 10 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | no |
| Dimension | 2x5 NYM3x1,5 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
Environmental Data
0,1268 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1268 kg CO2e / 1 Piece |
|---|
