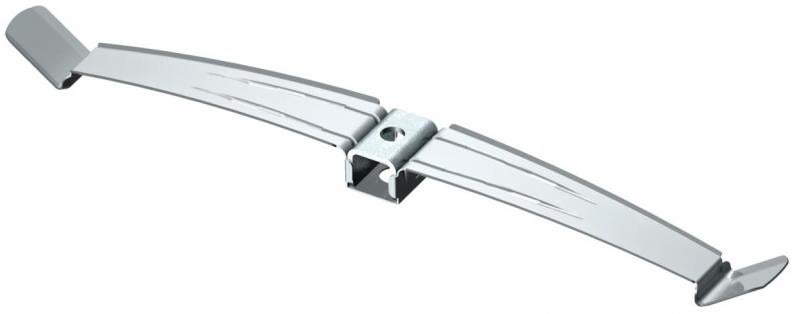

Pressure clip for 16 cables
Trench Part No. 2033 M A2
|OBO Item No. 2204000
|EAN 4012195036616
Trench Part No.
2033 M A2
OBO Item No.
2204000
No. of conductors NYM 3 x 1.5
16
Smallest selling unit: 25 piece
25piece
piece
Description
The metal pressure clip is halogen and fire load-free, and maintains a good mechanical stability even in fires. The pressure clip is also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 Part 12. The spacer 2033 D 15 x 3 G (must be ordered separately) increases the clamping height of pressure clips from 10 to 13 mm. The pressure clips are suitable for fireproof mounting above suspended fire protection ceilings in accordance with DIN 4102.
Technical data
Technical data
| Maintain electrical functions | yes |
|---|---|
| No. of conductors NYM 3 x 1.5 | 16 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | no |
| ROHS-conformant | yes |

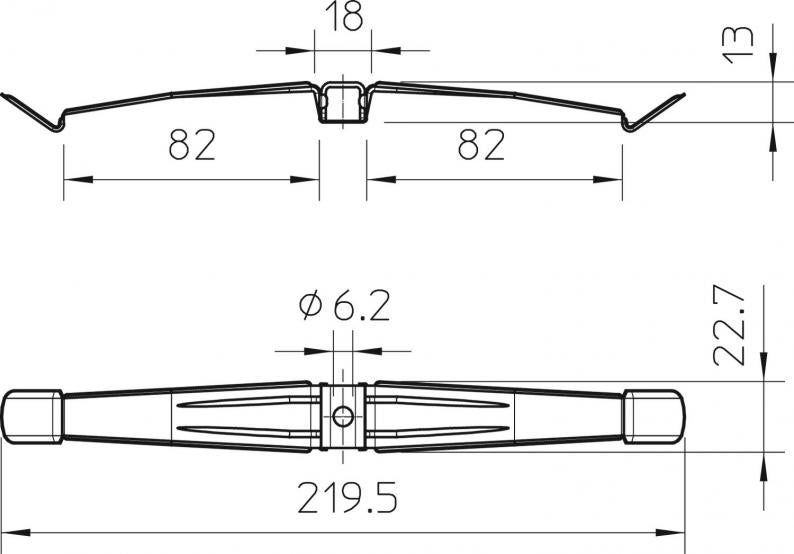

| Dimension | 2x8 NYM3x1,5 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Product series | Cable and pipe fastening |
Environmental Data
0,1762 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1762 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 01762 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
