Pressure clip for ceiling mounting, duct height 120 mm
Trench Part No. PLM CB 1220 FS
|OBO Item No. 7218150
|EAN 4012197310479
Trench Part No.
PLM CB 1220 FS
OBO Item No.
7218150
Smallest selling unit: 10 piece
10piece
piece
Description
Installation aid against cables falling out during ceiling mounting of the PLM D 1220 installation duct.
Technical data

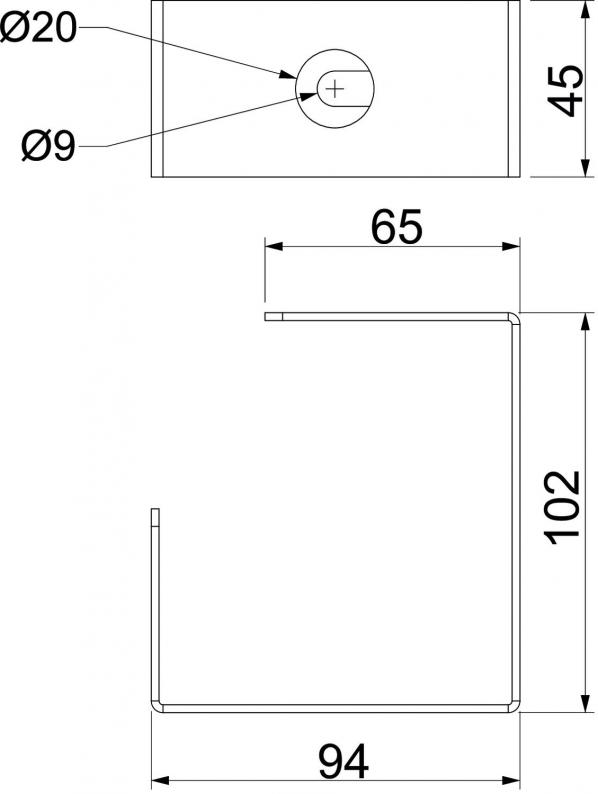

Dimensions
| Dimension B | 94 mm |
|---|---|
| Dimension H | 102 mm |
| Dimension b | 65 mm |
| Dimension t | 45 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 94x45x102 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,6127 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6127 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 06127 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
