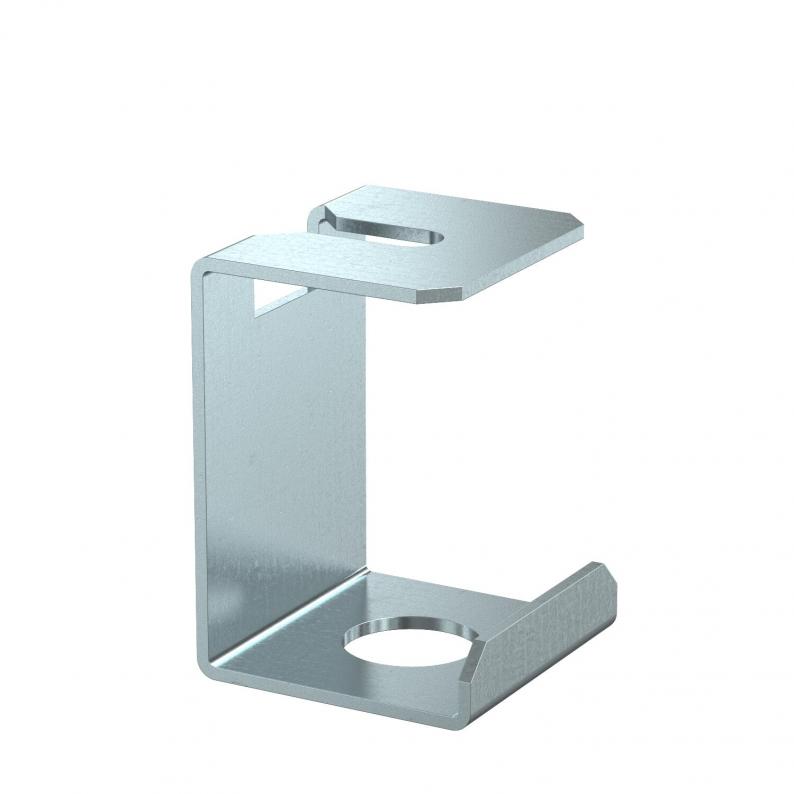

Pressure clip for ceiling mounting, duct height 80 mm
Trench Part No. PLM CB 0810 FS
|OBO Item No. 7218148
|EAN 4012197310455
Trench Part No.
PLM CB 0810 FS
OBO Item No.
7218148
Smallest selling unit: 10 piece
10piece
piece
Description
Installation aid against cables falling out during ceiling mounting of the PLM D 0810 installation duct.
Technical data

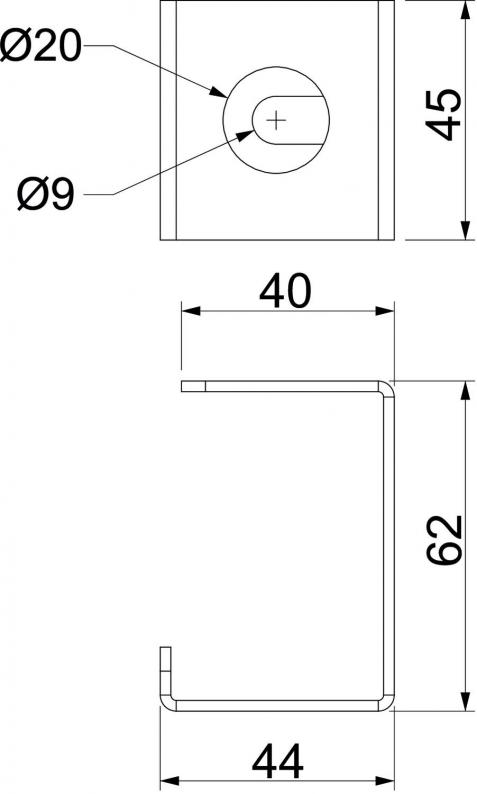

Dimensions
| Dimension B | 44 mm |
|---|---|
| Dimension H | 62 mm |
| Dimension b | 40 mm |
| Dimension t | 45 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 44x45x62 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,3218 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3218 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 03218 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
OBO Item No.
PLM CB 0810 FS
7218148
PLM CB 0810 FS
OBO Item No.
7218148
