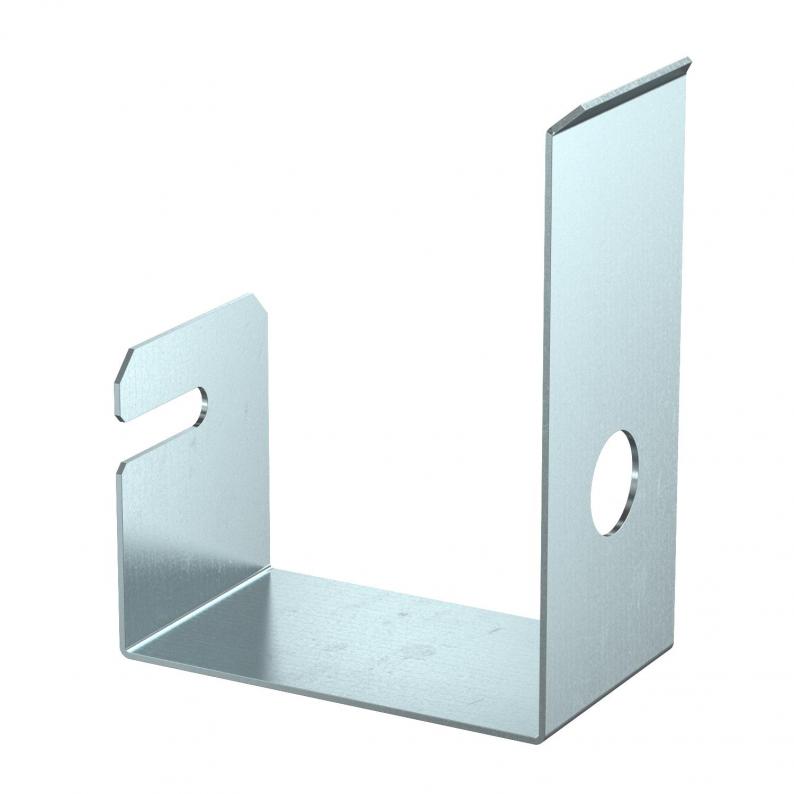

Pressure clip for wall mounting, duct height 120 mm
Trench Part No. PLM WB 1220 FS
|OBO Item No. 7218156
|EAN 4012197310530
Trench Part No.
PLM WB 1220 FS
OBO Item No.
7218156
Smallest selling unit: 10 piece
10piece
piece
Description
Installation aid against cables falling out during wall mounting of the PLM D 1220 installation duct.
Technical data

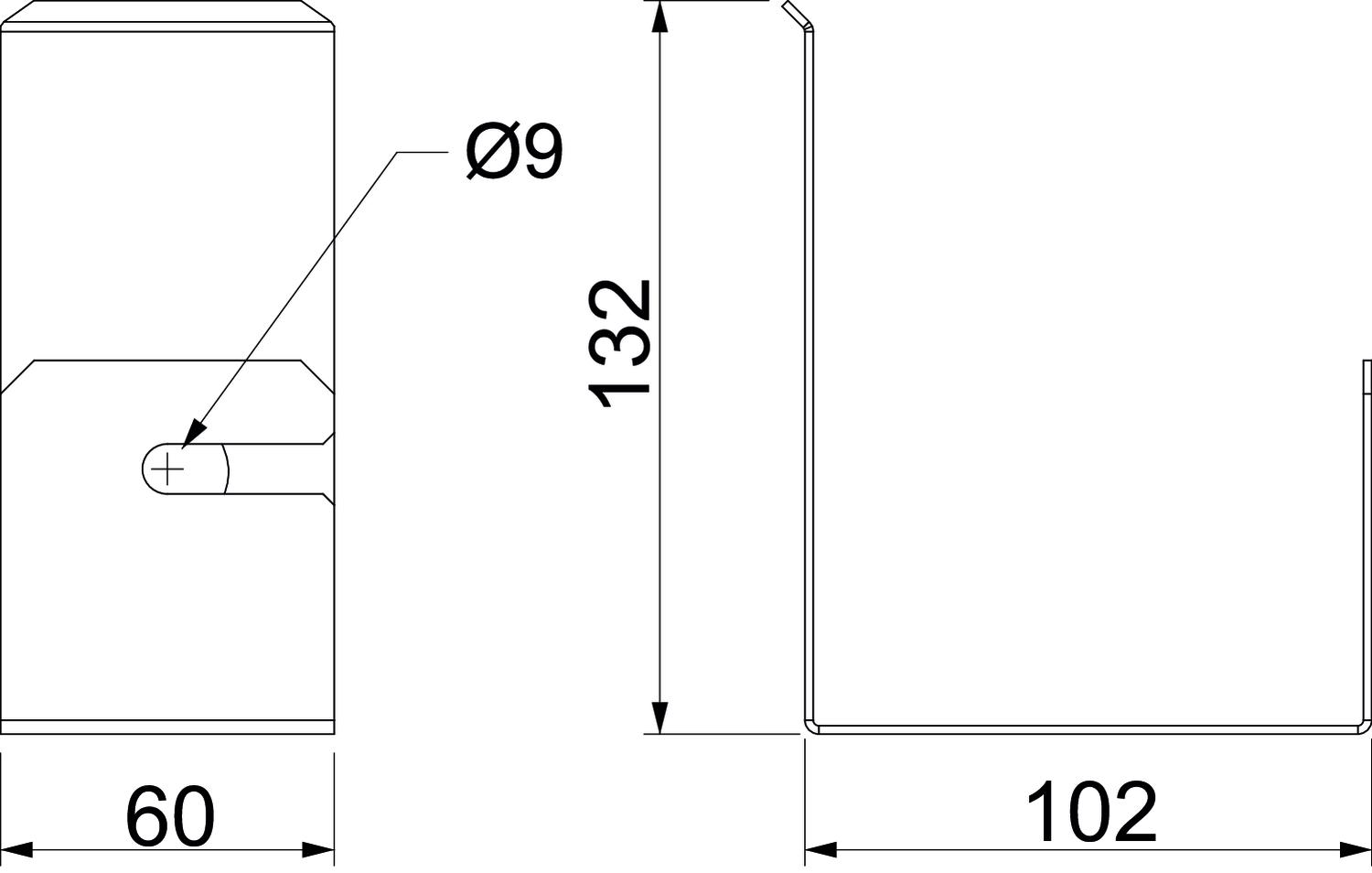

Dimensions
| Dimension B | 60 mm |
|---|---|
| Dimension H | 132 mm |
| Dimension t | 102 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 102x60x132 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,615 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,615 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0615 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
Tender specifications (1)
