Profile for screed limitation
Trench Part No. OKB EP 1000
|OBO Item No. 7403895
|EAN 4012195862123
Trench Part No.
OKB EP 1000
OBO Item No.
7403895
Height-adjustment range, min.
0 mm
Smallest selling unit: 1 piece
1piece
piece
Description

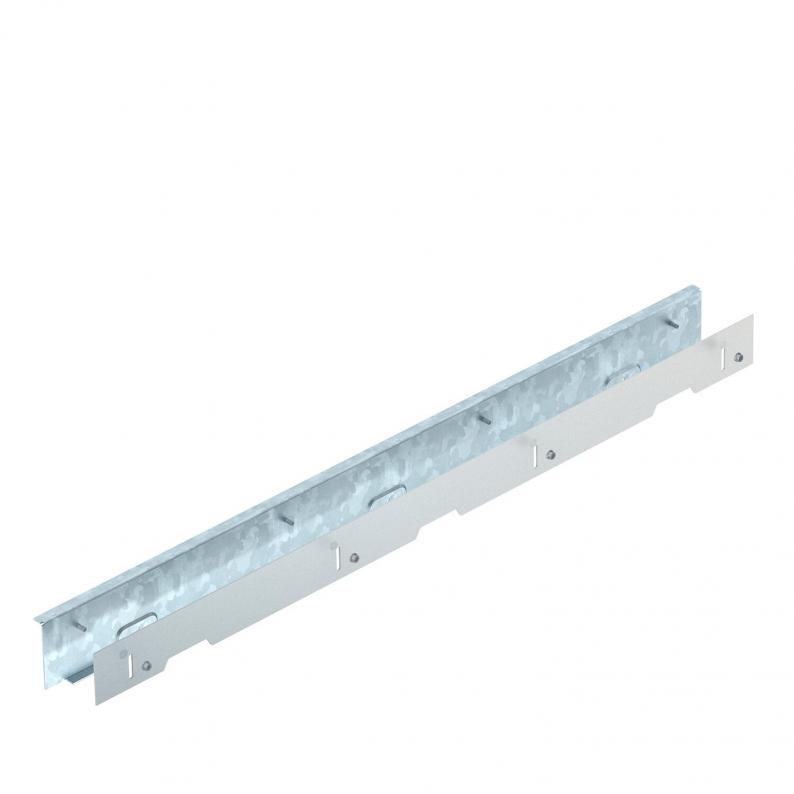

Extension profile for screed limitation in areas of door frames and in front of radiator niches.
Technical data

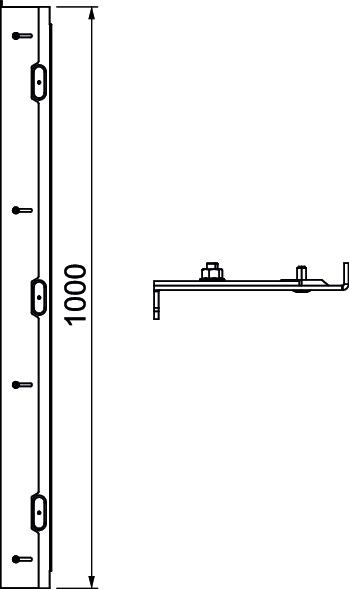

Dimensions
| Length | 1.000 mm |
|---|---|
| Width | 27 mm |
| Height | 107 mm |
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 85 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Seal installation option | no |
| Decouplable | yes |
| Floor plate | yes |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Dimension | 1000x87x25 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
10,3251 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 10,3251 kg CO2e / 1 Piece |
|---|
