PYROBAG® fire protection cushion
Trench Part No. KBK-2
|OBO Item No. 7202725
|EAN 4012196460878
Trench Part No.
OBO Item No.
Dimension d min.
Contents
Smallest selling unit: 5 piece
5piece
piece
Description

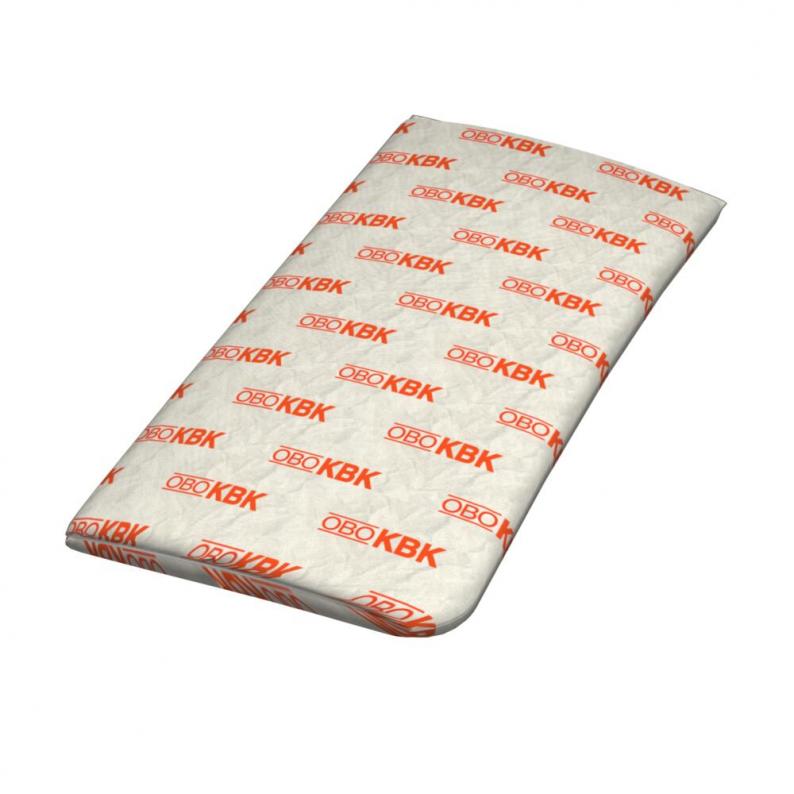

Cable fire protection cushions made of dense, closely knit and mechanically solid glass mesh with a special filling. Free from mineral fibres, weatherproof and water-resistant. For interior application.
Can be stored for an unlimited period of time in dry, frost-free rooms.
Can be stored for an unlimited period of time in dry, frost-free rooms.
Technical data

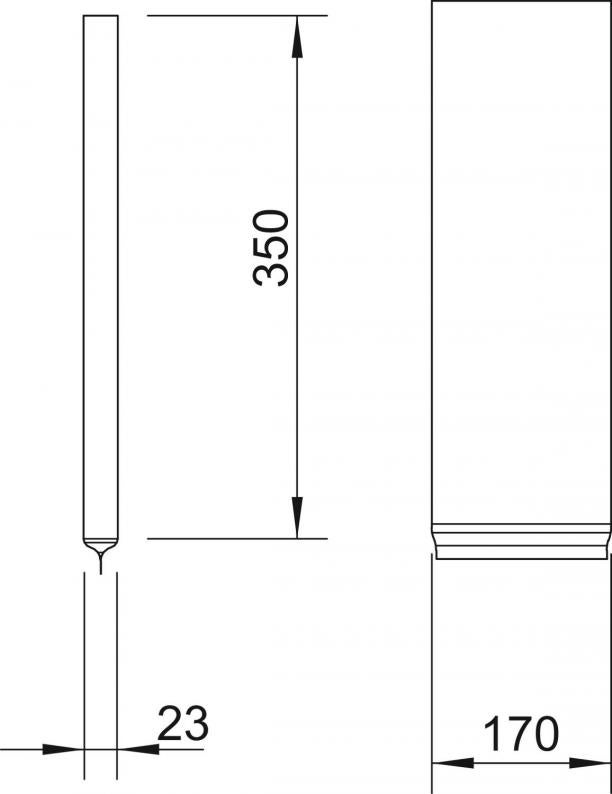

Dimensions
| Length | 350 mm |
|---|---|
| Width | 170 mm |
| Height | 23 mm |
| Dimension B | 170 mm |
| Dimension d min. | 23 mm |
Technical data
| Accessories required | yes |
|---|---|
| Fire protection version | Cushion insulation |
| Shape | Rectangular |
| Contents | 033 kg |
| Dimension | 350x170x23mm |
| Material | Glass mesh with special fire protection filling |
| Colour | Grey |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Dimension d min.
Contents
OBO Item No.
KBK-1
10
018
7202709
KBK-2
23
033
7202725
KBK-3
40
063
7202741
Dimension d min.
Contents
KBK-1
OBO Item No.
7202709
Dimension d min.
10
Contents
018
KBK-2
OBO Item No.
7202725
Dimension d min.
23
Contents
033
KBK-3
OBO Item No.
7202741
Dimension d min.
40
Contents
063
