PYROCOMB® Intube pipe shell, Ø 60 mm
Trench Part No. CTS 06150
|OBO Item No. 7204290
|EAN 4012196810161
Trench Part No.
CTS 06150
OBO Item No.
7204290
Dimension L
150 mm
Dimension d min.
506 mm
For opening, min.
65 mm
Smallest selling unit: 1 piece
1piece
piece
Description

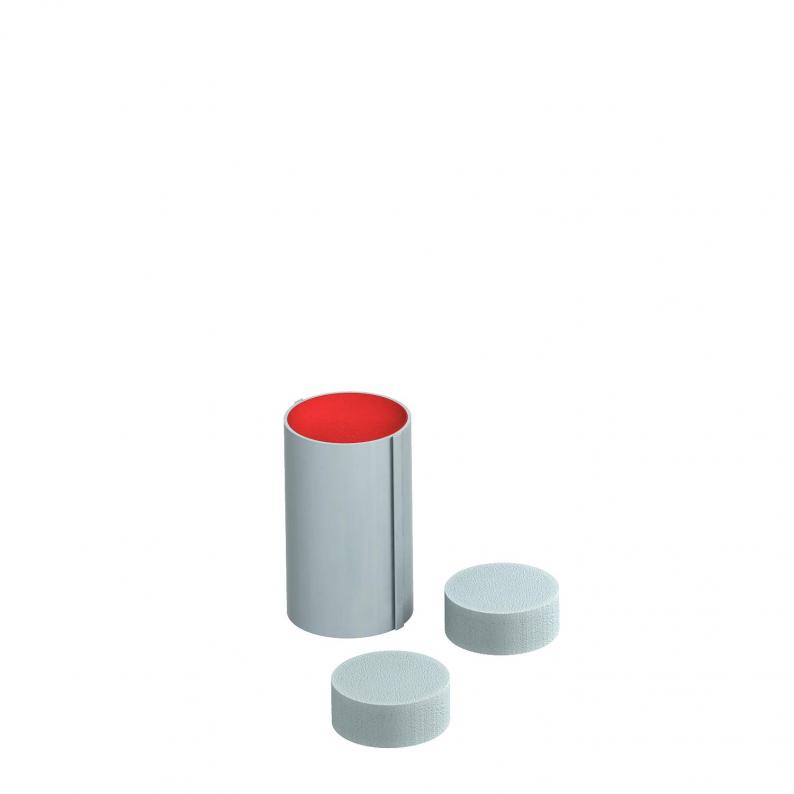

Internally coated pipe shells with click lock. The inner space can be fitted with cables and electrical installation pipes completely. For interior application. CE-labelled, European approved construction product according to ETA-13/0904 and German general type approval. Fire resistance up to 120 minutes.
Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.
In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.
In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
Technical data

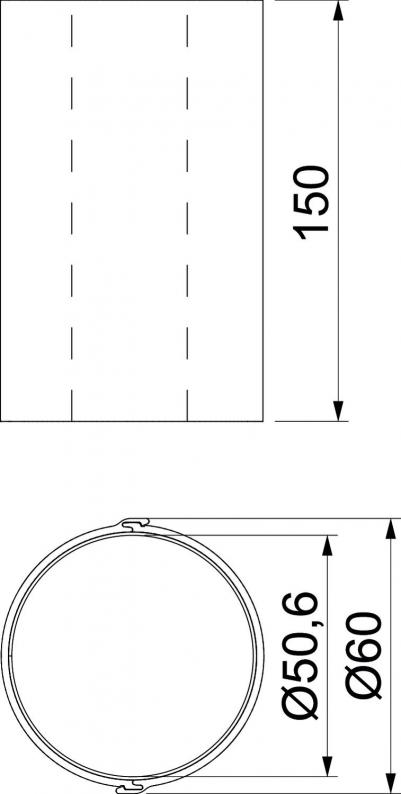

Dimensions
| Length | 150 mm |
|---|---|
| Dimension L | 150 mm |
| Dimension B | 60 mm |
| Dimension d min. | 506 mm |
Technical data
| Diameter | 60 mm |
|---|---|
| Accessories required | no |
| Fire protection version | Assembly insulation |
| Shape | Round |
| For opening, min. | 65 mm |
| Dimension | 51x150mm |
| Material | Polyvinylchloride |
| Colour | Grey |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Dimension L
Dimension d min.
For opening, min.
OBO Item No.
CTS 06150
150
506
65
7204290
CTS 06150
OBO Item No.
7204290
Dimension L
150
Dimension d min.
506
For opening, min.
65
