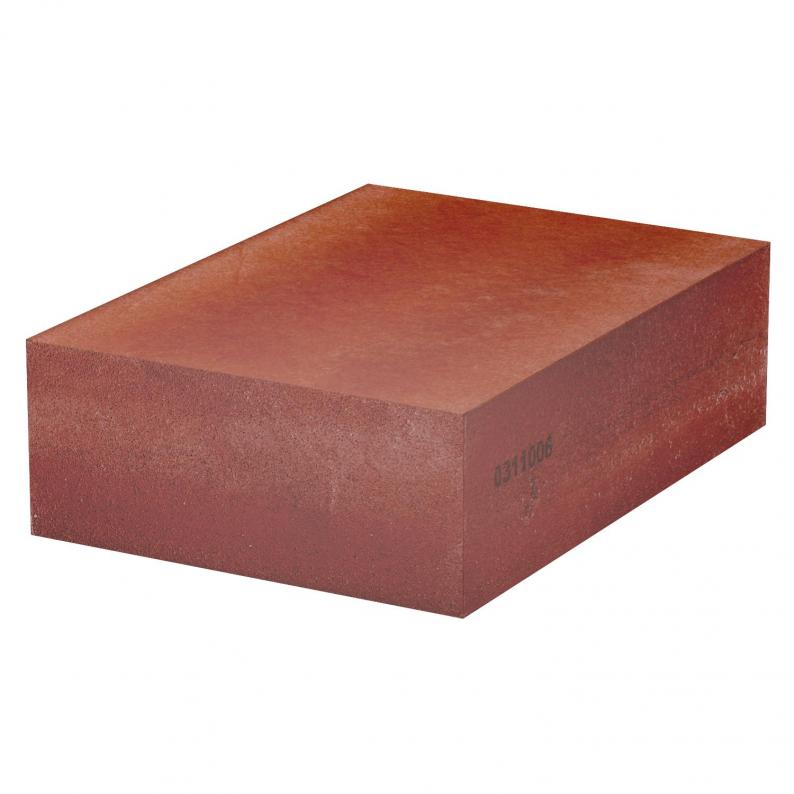

PYROPLUG® Block foam block
Trench Part No. FBA-B200-14
|OBO Item No. 7202505
|EAN 4012196434459



Trench Part No.
FBA-B200-14
OBO Item No.
7202505
Smallest selling unit: 4 piece
4piece
piece
Description
Soft, permanently elastic foam block for cable and combination insulation. Vertical and transverse installation to achieve different fire resistance classes. Can be combined with the two-component fire protection foam PYROSIT® NG. Can be used in solid ceilings and walls and in light-duty partitions and is approved for many installations. For interior application. CE-labelled construction product according to ETA-15/0803 for applications with fire resistance periods of up to 120 minutes.
Details on the applications can be found in the approval documents.
Protect the surface of the foam insulation against water in order to guarantee safe expansion in the event of fire. Coating with standard silicone is approved.
Details on the applications can be found in the approval documents.
Protect the surface of the foam insulation against water in order to guarantee safe expansion in the event of fire. Coating with standard silicone is approved.
Technical data

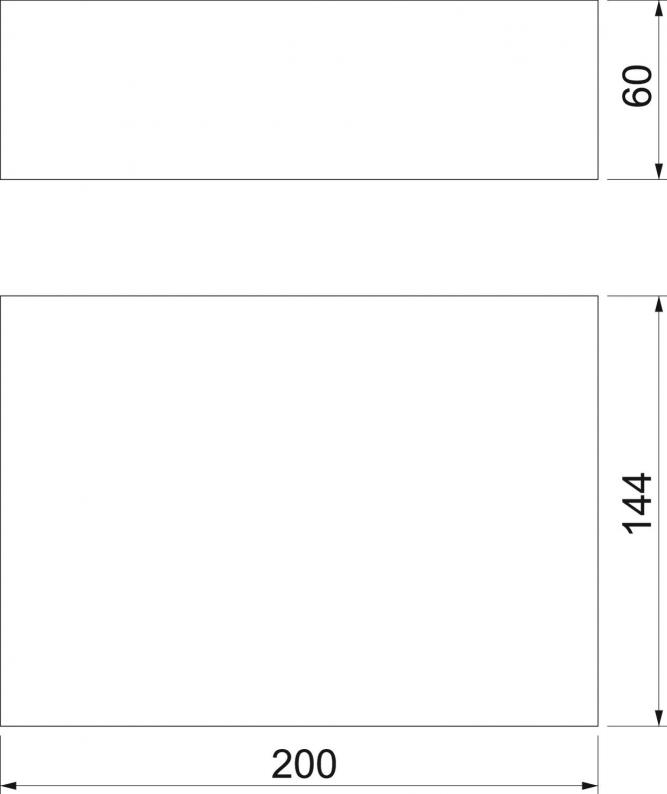

Dimensions
| Length | 200 mm |
|---|---|
| Width | 144 mm |
| Height | 60 mm |
Technical data
| Accessories required | yes |
|---|---|
| Fire protection version | Foam blocks |
| Shape | Rectangular |
| Dimension | 200x144x60mm |
| Material | Permanently elastic, closed-pore foam |
| Colour | Brown |
