PYROPLUG® MagicBox, three-sided, interior height 60 mm

PYROPLUG® MagicBox, three-sided, interior height 60 mm

Trench Part No. PMB 610-3 A2
|
OBO Item No. 7204030
|
EAN 4012196812042
Show all variants
Trench Part No.
OBO Item No.
Internal height
Internal width

Smallest selling unit: 1 piece

piece

Description

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

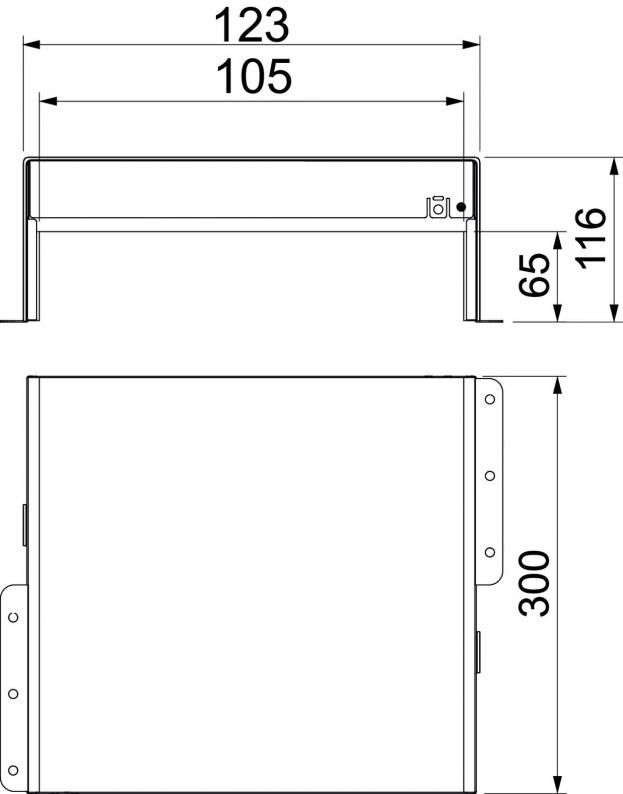

Dimensions

Length300 mm
Width123 mm
Height116 mm
Dimension d105 mm
Dimension d min.123 mm
Internal height65 mm
Internal width105 mm

Technical data

Accessories requiredyes
Fire protection versionBox body
ShapeRectangular
Dimension300x123x116
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)

Variants

Internal width
PMB 610-3 A2
OBO Item No.
7204030
Internal height
65
Internal width
105
PMB 620-3 A2
OBO Item No.
7204034
Internal height
65
Internal width
205
PMB 630-3 A2
OBO Item No.
7204038
Internal height
65
Internal width
305
PMB 640-3 A2
OBO Item No.
7204042
Internal height
65
Internal width
405
PMB 650-3 A2
OBO Item No.
7204046
Internal height
65
Internal width
505
PMB 660-3 A2
OBO Item No.
7204050
Internal height
65
Internal width
605
