Reducer, straight, from 120 mm to 80 mm duct height, FS
Trench Part No. PLM RP 1220 FS
|OBO Item No. 7218102
|EAN 4012197365387
Trench Part No.
PLM RP 1220 FS
OBO Item No.
7218102
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Reducer with intumescent fire protection mesh for symmetrical reduction of straight duct sections from PLM D 1220 to PLM D 0810. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data

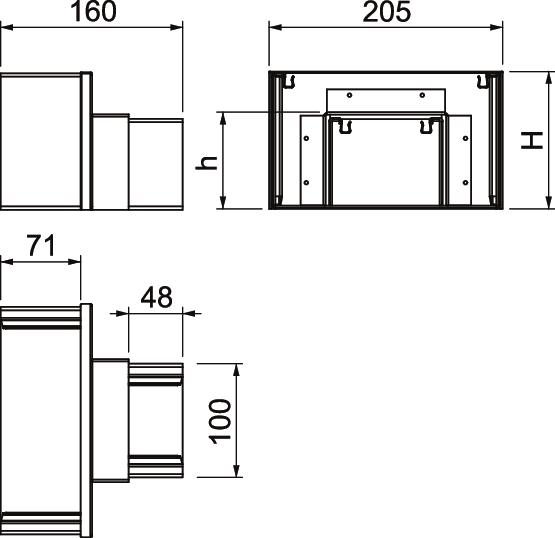

Dimensions
| Dimension B | 200 mm |
|---|---|
| Dimension H | 120 mm |
| Dimension h | 80 mm |
Technical data
| Cover fastening | Miscellaneous |
|---|---|
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Dimension | 160x200x120 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
4,5727 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,5727 kg CO2e / 1 Piece |
|---|
