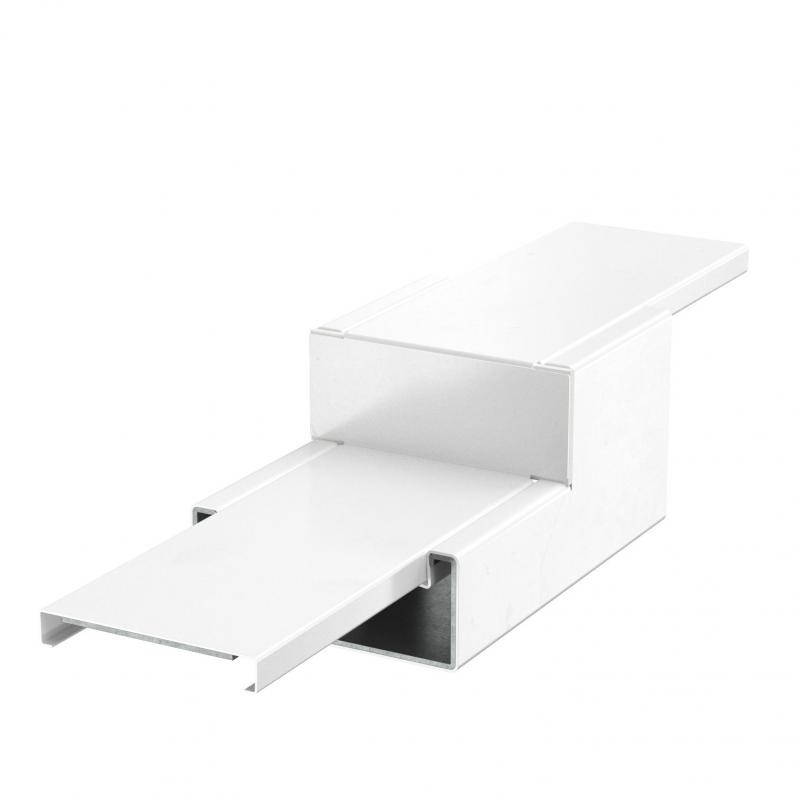

Reducer, straight, from 80 mm to 40 mm duct height, pure white
Trench Part No. PLM RP 0810 RW
|OBO Item No. 7218100
|EAN 4012197365400
Trench Part No.
PLM RP 0810 RW
OBO Item No.
7218100
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description
Reducer with intumescent fire protection mesh for symmetrical reduction of straight duct sections from PLM D 0810 to PLM D 0410. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data
Dimensions
| Dimension H | 80 mm |
|---|---|
| Dimension h | 40 mm |
Technical data
| Cover fastening | Miscellaneous |
|---|---|
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Dimension | 360x100x80 |
| Surface | Powder-coated |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
Environmental Data
3,2733 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,2733 kg CO2e / 1 Piece |
|---|
