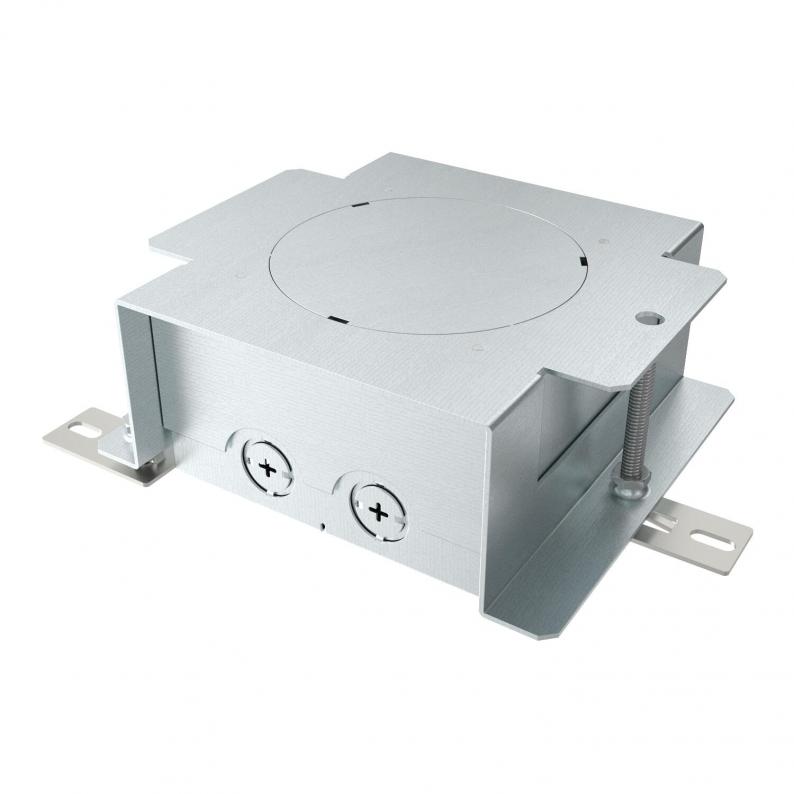

Screed box for GES R2
Trench Part No. UD GES R2 | OBO Item No. 7428526 | EAN 4012196459483
Trench Part No.
UD GES R2
OBO Item No.
7428526
Smallest selling unit: 1 piece
1piece
Description
Height-adjustable screed box for the installation of the installation socket of the GES R2 floor socket.
With 2x2 insertion openings for installation pipes (M20/M25).
With 2x2 insertion openings for installation pipes (M20/M25).
Technical data
Technical data
| Screed height, max. | 130 mm |
|---|---|
| Screed height, min. | 85 mm |
| Height-adjustment range, max. | 130 mm |
| Height-adjustment range, min. | 85 mm |
| Minimum screed height | 85 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | yes |
| Installation diameter | 122 |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Installation opening for flush-mount unit | Round |
| Expansion option | For installation of accessories |
| For pipe connection | yes |
| Version for | Round |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,6782 kg CO2e / 1 Piece |
