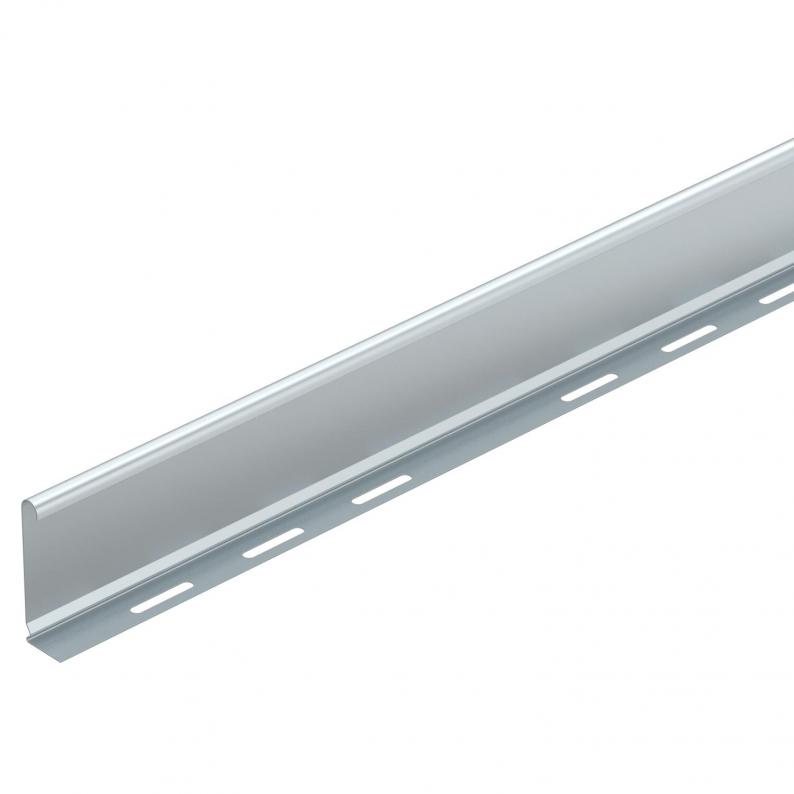

Separating retainer 85 FS
Trench Part No. TSG 85 FS | OBO Item No. 6062114 | EAN 4012195694571
Trench Part No.
TSG 85 FS
OBO Item No.
6062114
Colour
zinc
Smallest selling unit: 3 m
3m
Description
Separating retainer for separation of cables of different voltages or functions.
Technical data

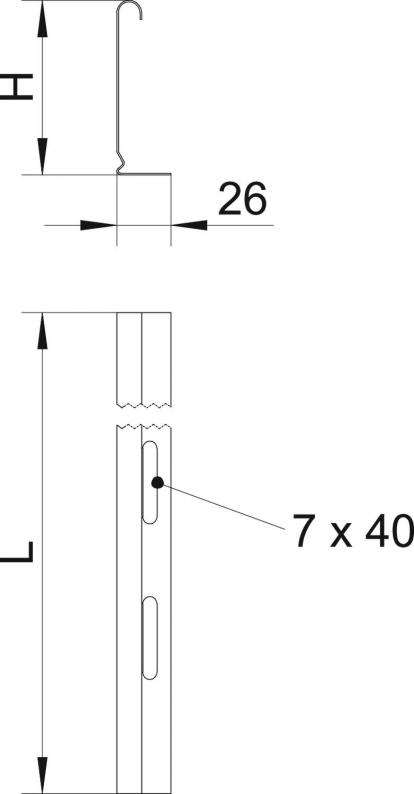

Dimensions
| Height | 85 mm |
|---|---|
| Dimension L | 3.000 mm |
| Dimension H | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening perforation (ETIM) | no |
| Version for | L profile |
| Fastening type | Screw-on |
| Dimension | 85x2995 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5357 kg CO2e / 1 Meter |
