Separating retainer (spare part)
Trench Part No. VTGRAF9 9011
|OBO Item No. 7408507
|EAN 4012195374336
Trench Part No.
OBO Item No.
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

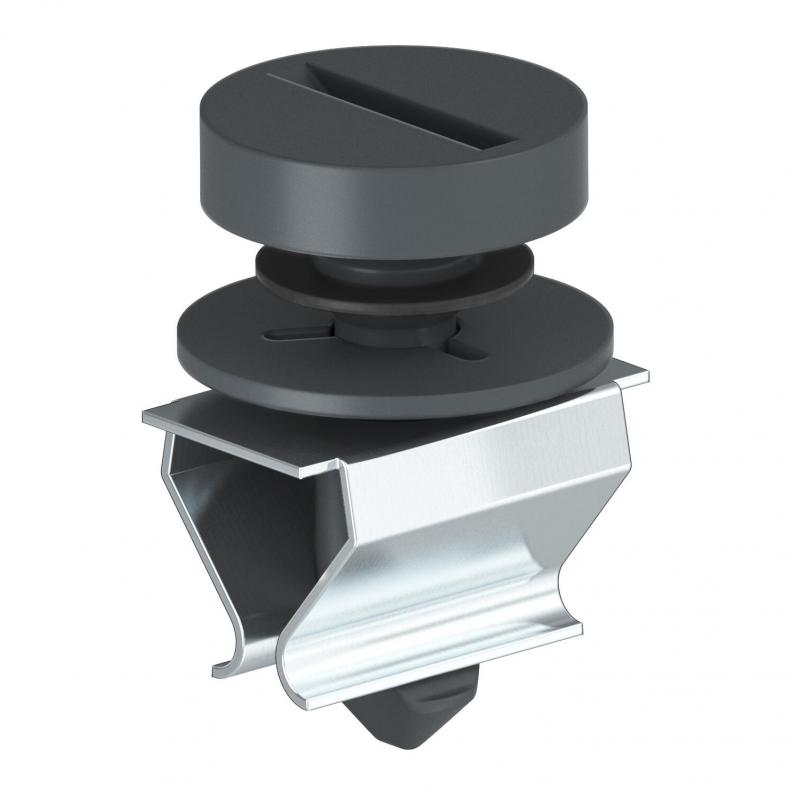

Plug consisting of a locking pin and seat as spare part for GRAF9.
Technical data
Technical data
| Suitable for screed-covered underfloor ducts | yes |
|---|---|
| Suitable for screed-flush closed underfloor ducts | yes |
| Seal installation option | yes |
| Installation diameter | 304 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Number of mounting boxes | 3 |
| Suitable for wet care | yes |
| External diameter | 3225 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Installation system type | MT4 / GB3 |
| Heavy-duty version | yes |
| Approvals | VDE |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,0433 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0433 kg CO2e / 1 Piece |
|---|
