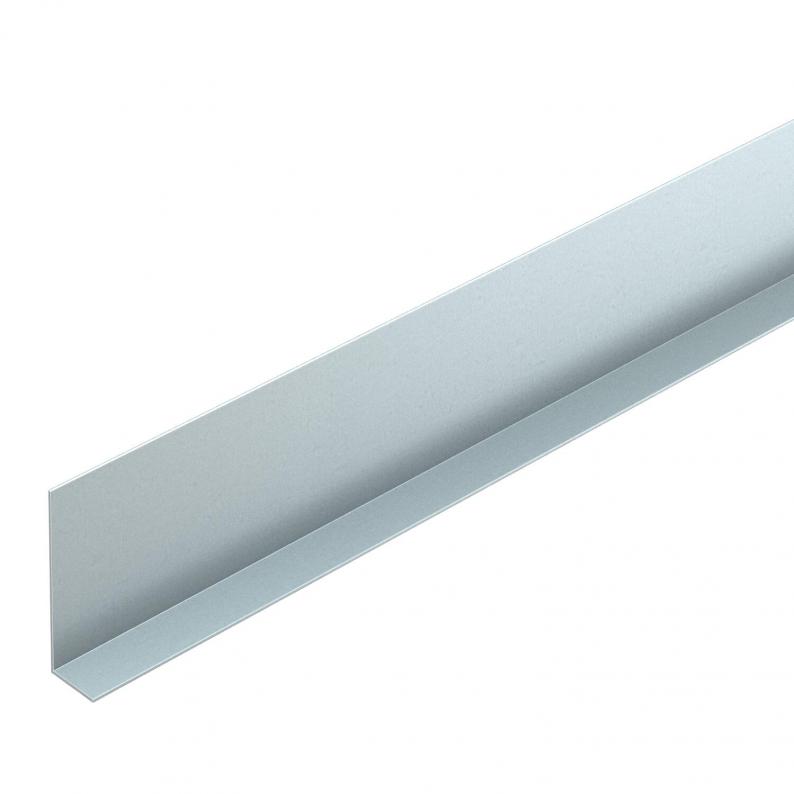

Separating retainer, trunking height 60 mm
Trench Part No. OKA2 TW 60
|OBO Item No. 7401996
|EAN 4012195093947
Trench Part No.
OKA2 TW 60
OBO Item No.
7401996
Length
2.400 mm
Height
465 mm
Duct height, min.
60 mm
Smallest selling unit: 2.4 m
2.4m
m
Description
Divider for use in the floor trough of previously prepared OKA-W trunking units.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Height | 465 mm |
Technical data
| ROHS-conformant | yes |
|---|---|
| Duct height, min. | 60 mm |

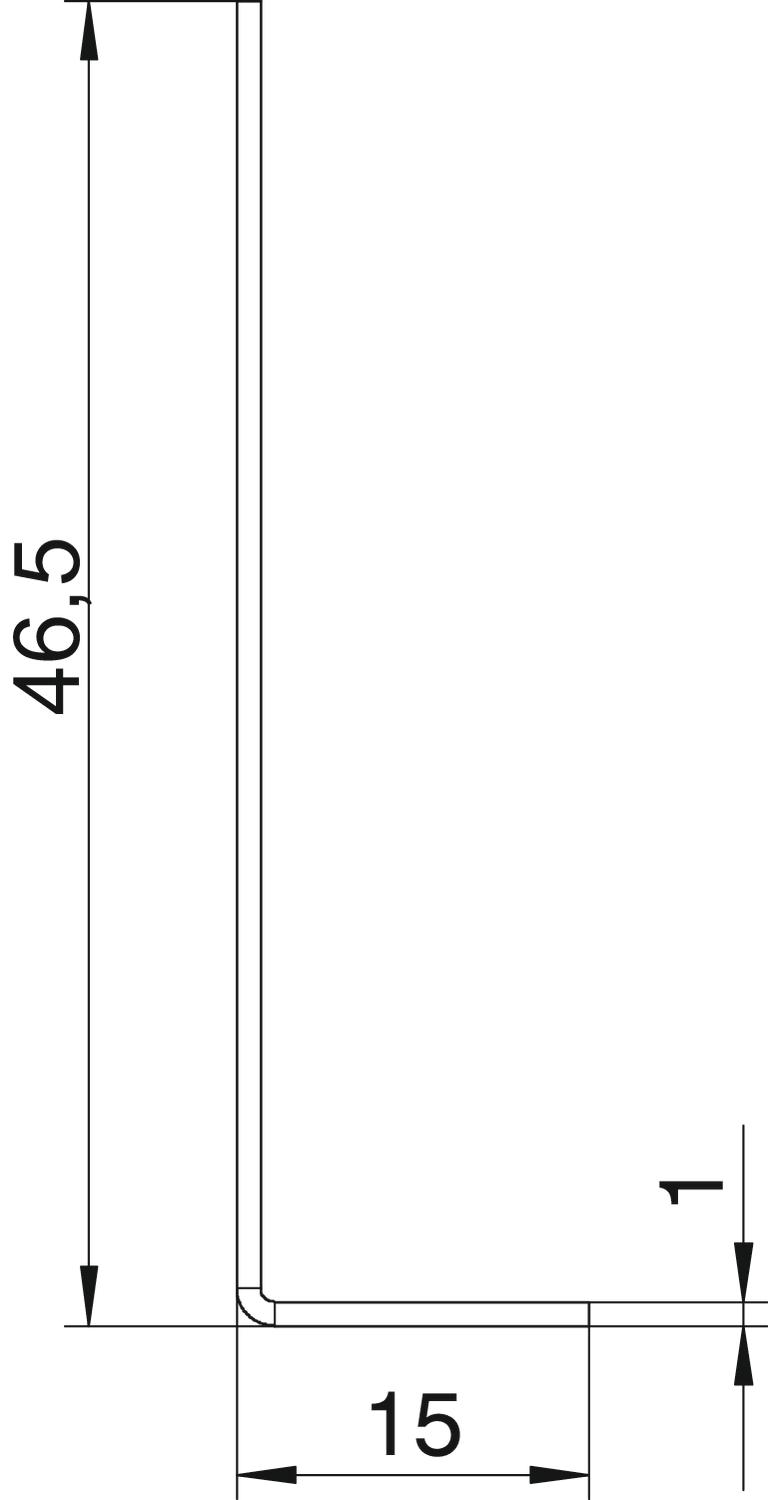

| Dimension | 2400x15x47 |
| Surface | Strip galvanised |
| Material | Steel |
| Product series | OKA Series |
Environmental Data
1,2823 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2823 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 12823 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Length
Height
Duct height, min.
OBO Item No.
OKA2 TW 60
2.400
465
60
7401996
OKA2 TW 60
OBO Item No.
7401996
Length
2.400
Height
465
Duct height, min.
60
