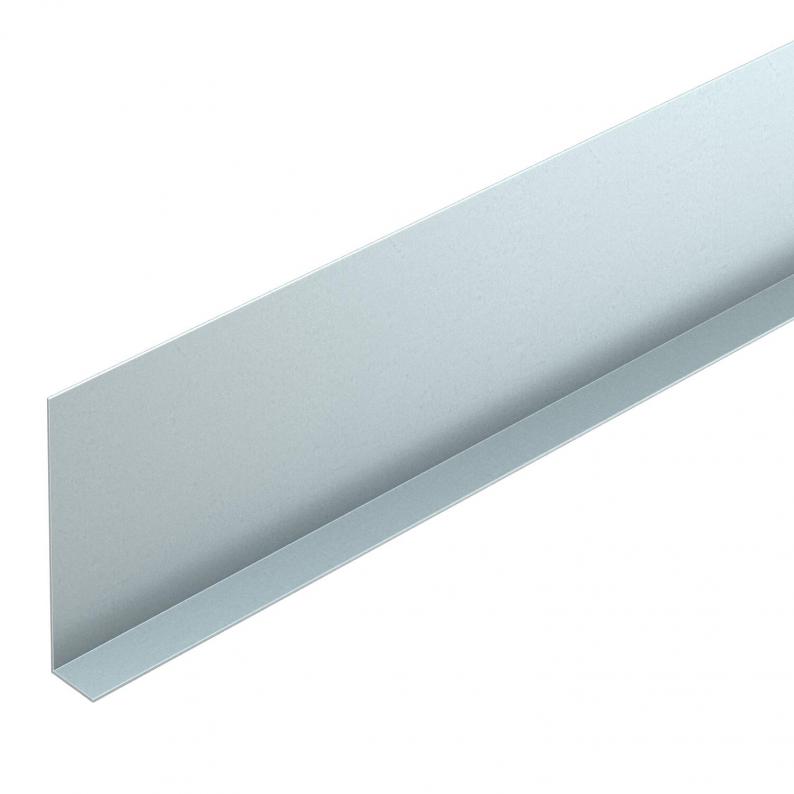

Separating retainer, trunking height 90 mm
Trench Part No. OKA2 TW 90
|OBO Item No. 7402008
|EAN 4012195094012
Trench Part No.
OKA2 TW 90
OBO Item No.
7402008
Length
2.400 mm
Height
765 mm
Duct height, min.
90 mm
Smallest selling unit: 2.4 m
2.4m
m
Description
Divider for use in the floor trough of the previously prepared OKA-W trunking unit.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Height | 765 mm |
Technical data
| Duct height, min. | 90 mm |
|---|---|

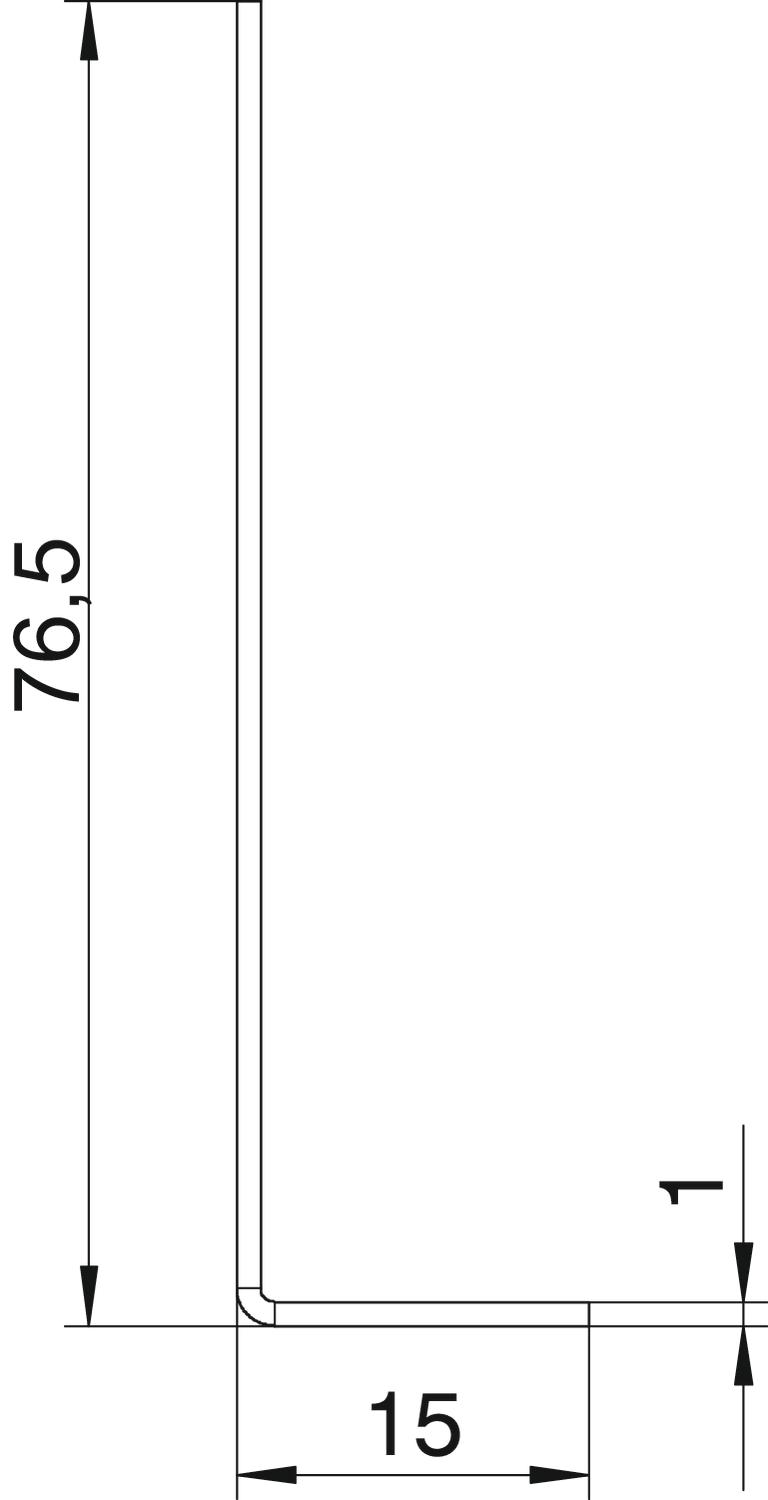

| Dimension | 2400x15x77 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
2,0436 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0436 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Length
Height
Duct height, min.
OBO Item No.
OKA2 TW 90
2.400
765
90
7402008
OKA2 TW 90
OBO Item No.
7402008
Length
2.400
Height
765
Duct height, min.
90
