Service outlet with blanking cover and opening contour, GES R2
Trench Part No. GES R2B 7011
|OBO Item No. 7405086
|EAN 4012196459605
Trench Part No.
OBO Item No.
Smallest selling unit: 1 piece
1piece
piece
Description

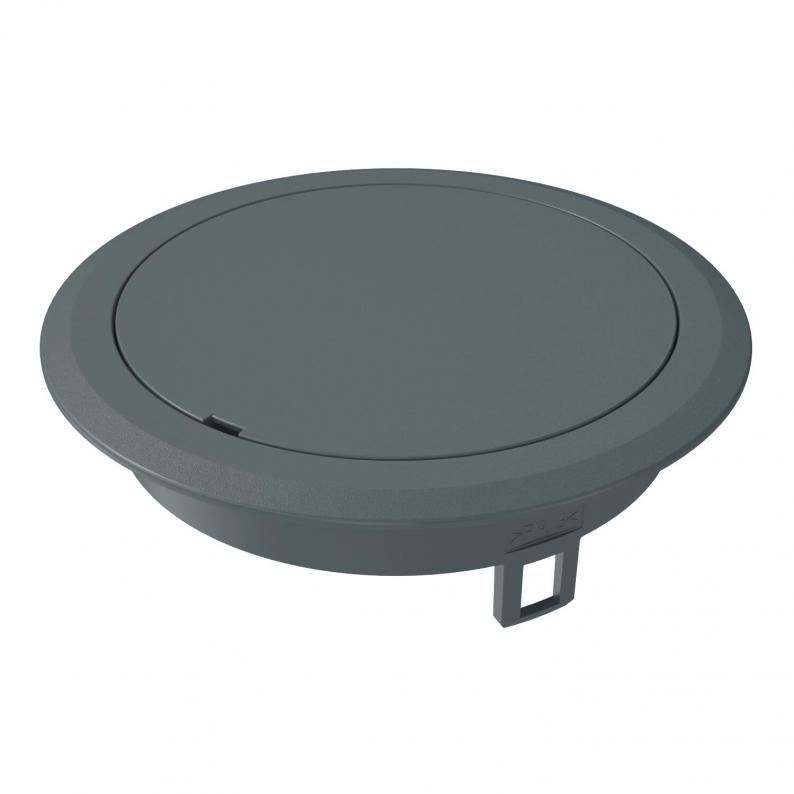

Service outlet with blanking cover and opening contour for GES R2 floor socket for direct installation in the MT R2 installation socket.
For use in dry-cleaned floors for indoor use.
For use in dry-cleaned floors for indoor use.
Technical data
Technical data
| Suitable for underfloor ducts | no |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Suitable for wet care | no |
| External diameter | 140 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | No cable outlet |
| Protection rating IK code | IK10 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 500 N |
| Version for | Round |
| Opening mechanism | Tool |

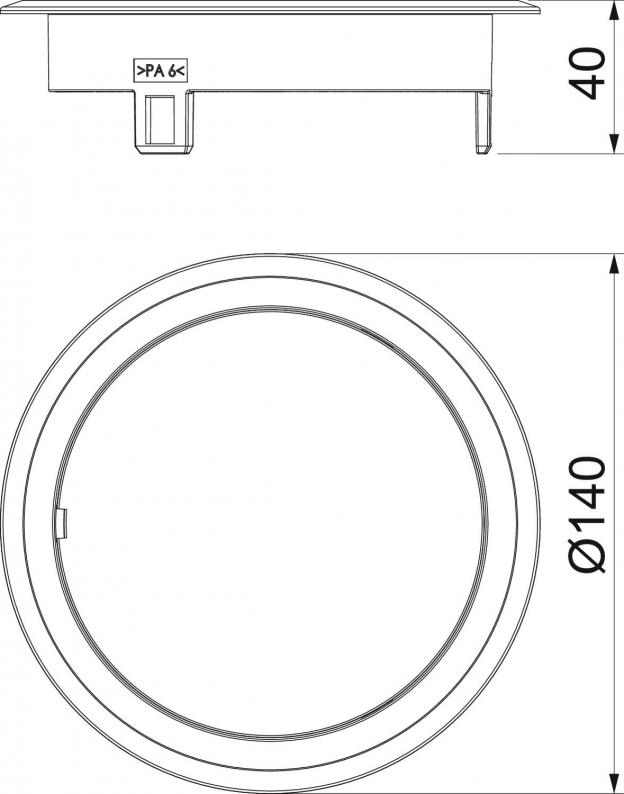

| Dimension | 140x140x40 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
0,4501 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4501 kg CO2e / 1 Piece |
|---|
