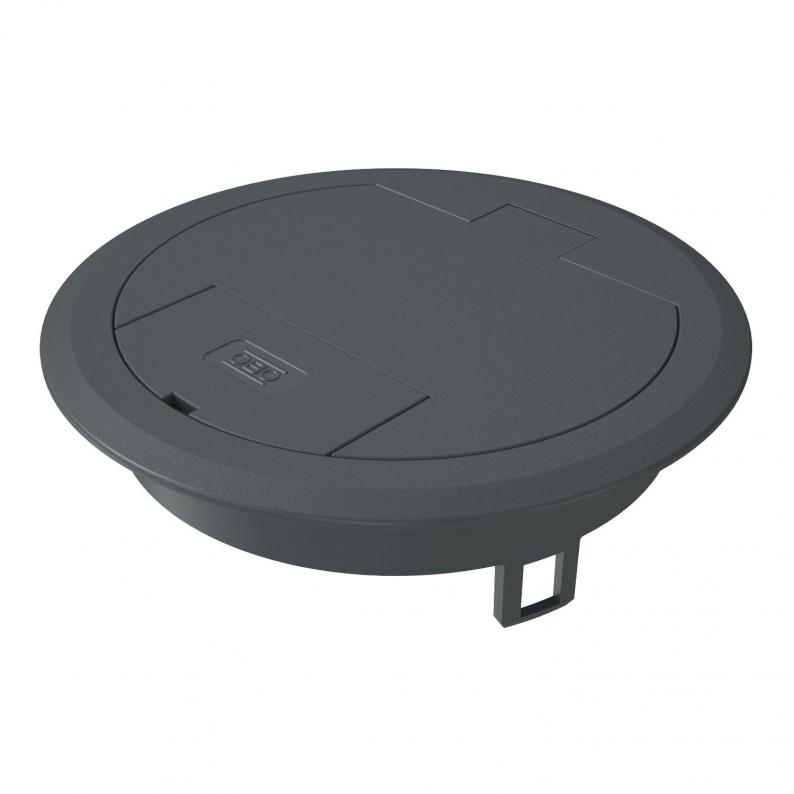

Service outlet with hinged cover and cord outlet, GES R2

Service outlet with hinged cover and cord outlet, GES R2

Trench Part No. GES R2 7011
|
OBO Item No. 7405082
|
EAN 4012196459582
Show all variants
Trench Part No.
OBO Item No.
Colour

Smallest selling unit: 1 piece

piece

Description

Service outlet with hinged cover and cord outlet for GES R2 floor socket for direct installation in the MT R2 installation socket.

For use in dry-cleaned floors for indoor use.

Technical data

Technical data

Suitable for underfloor ductsno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careDry
Suitable for wet careno
External diameter140 mm
With floor covering recessno
Floor covering protection frameyes
Cable outlet versionSwivellable cord outlet
Protection rating IK codeIK10
ApprovalsVDE
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP40
Vertical load, small areato 500 N
Opening mechanismTool
Dimension140x140x40
MaterialPolyamide
ColourIron grey; RAL 7011

Environmental Data

1,2625 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,2625 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GES R2 7011
OBO Item No.
7405082
Floor care
Dry
Protection rating (IP) when unused
IP40
Vertical load, small area
to 500 N
Opening mechanism
Tool
Material
Polyamide
Colour
Iron grey; RAL 7011
GES R2 9011
OBO Item No.
7405084
Floor care
Dry
Protection rating (IP) when unused
IP40
Vertical load, small area
to 500 N
Opening mechanism
Tool
Material
Polyamide
Colour
Graphite black; RAL 9011
