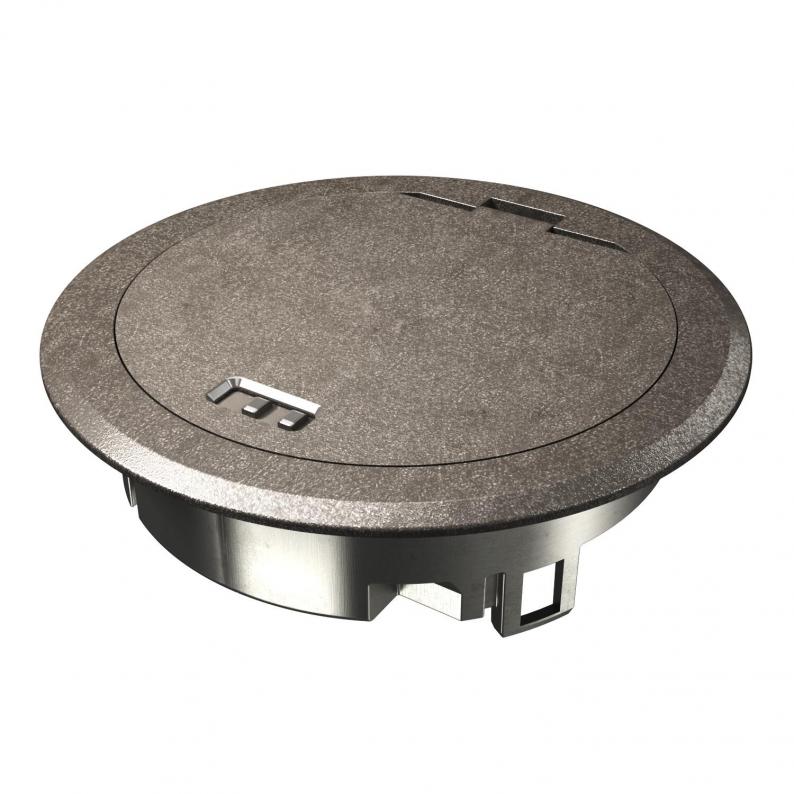

Service outlet with hinged cover and locking slider, GES R2, nickel-oxidised
Trench Part No. GES R2 Ni-O
|OBO Item No. 7408849
|EAN 4012196689767
Trench Part No.
OBO Item No.
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with hinged cover and locking slider for GES R2 floor socket for direct installation in the MT R2 installation socket.
When closed, the floor socket can be wet-cleaned.
When closed, the floor socket can be wet-cleaned.
Technical data
Technical data
| Suitable for underfloor ducts | no |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Suitable for wet care | yes |
| Installation depth | 85 mm |

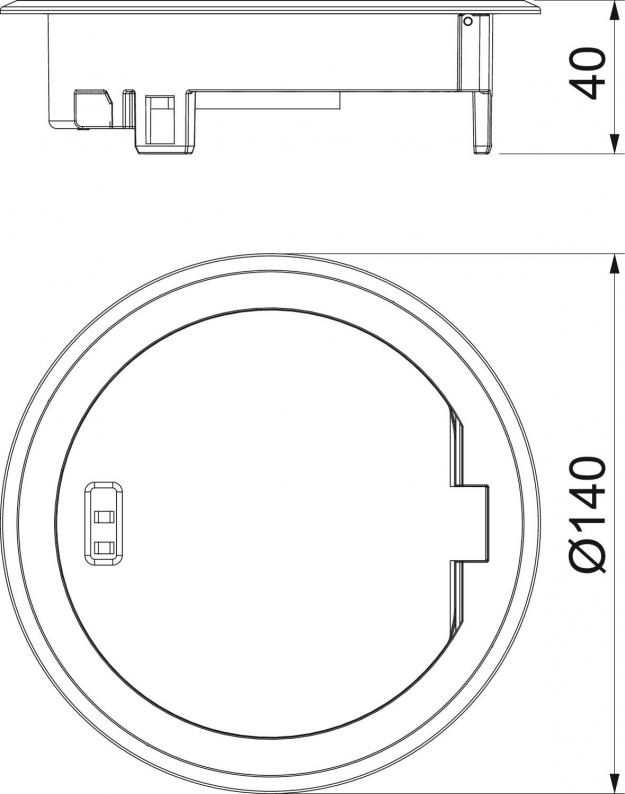

| External diameter | 140 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Protection rating IK code | IK10 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP66 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 15,000 N |
| Version for | Round |
| Opening mechanism | Locking slider |
| Dimension | 140 mm |
| Surface | nickel-plated oxidized |
| Material | Die-cast zinc |
Environmental Data
0,5213 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5213 kg CO2e / 1 Piece |
|---|
