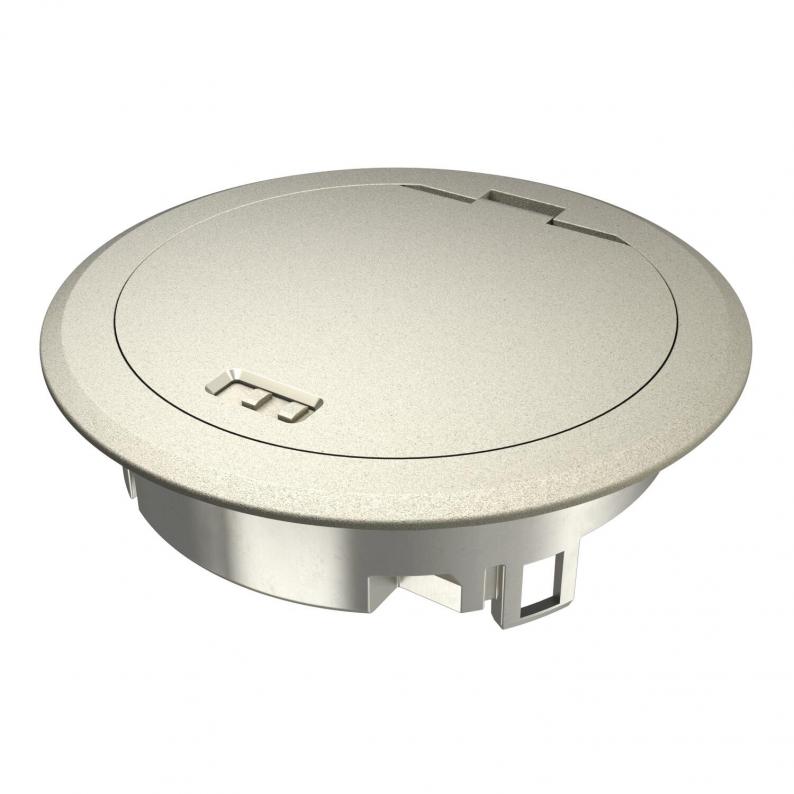

Service outlet with hinged cover and locking slider, GES R2, nickel

Service outlet with hinged cover and locking slider, GES R2, nickel

Trench Part No. GES R2 Ni | OBO Item No. 7408850 | EAN 4012196459278

Show all variants
Trench Part No.
OBO Item No.
Floor care
Wet
Protection rating (IP) when unused
IP66
Vertical load, small area
to 3,000 N
Opening mechanism
Locking slider
Material
Die-cast zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Service outlet with hinged cover and locking slider for GES R2 floor socket for direct installation in the MT R2 installation socket.

When closed, the floor socket can be wet-cleaned.

Technical data

Technical data

Suitable for underfloor ductsno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careWet
Suitable for wet careyes
Installation depth85 mm

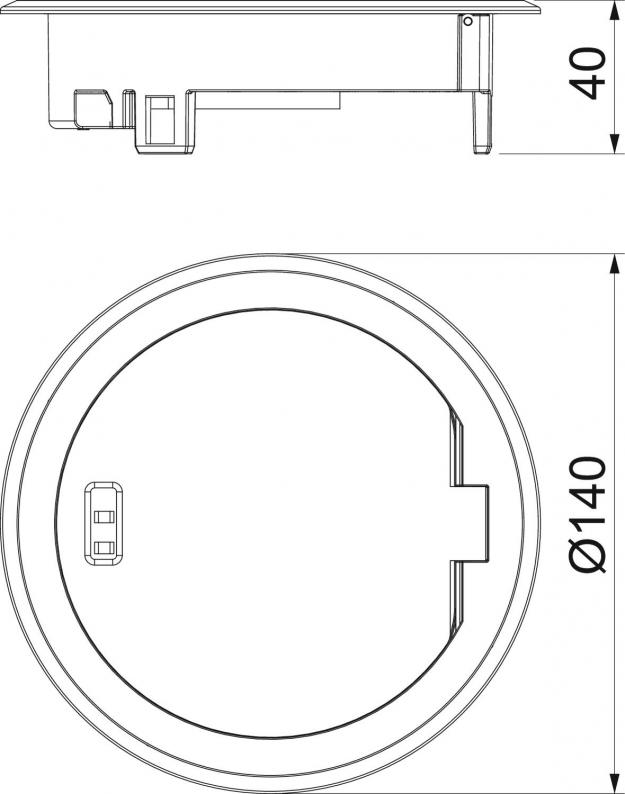

External diameter140 mm
With floor covering recessno
Floor covering protection frameyes
Cable outlet versionSwivellable cord outlet
Protection rating IK codeIK10
ApprovalsVDE
StandardEN 50085-2-2
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP66
Vertical load, small areato 3,000 N
Vertical load, large areato 15,000 N
Version forRound
Opening mechanismLocking slider
SurfaceNickel-plated
MaterialDie-cast zinc
CO2 Footprint (GWP) Cradle-to-Gate0,5214 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

GES R2 Ni
OBO Item No.
7408850
Floor care
Wet
Protection rating (IP) when unused
IP66
Vertical load, small area
to 3,000 N
Opening mechanism
Locking slider
Material
Die-cast zinc
GES R2 Cr
OBO Item No.
7408856
Floor care
Wet
Protection rating (IP) when unused
IP66
Vertical load, small area
to 3,000 N
Opening mechanism
Locking slider
Material
Die-cast zinc
