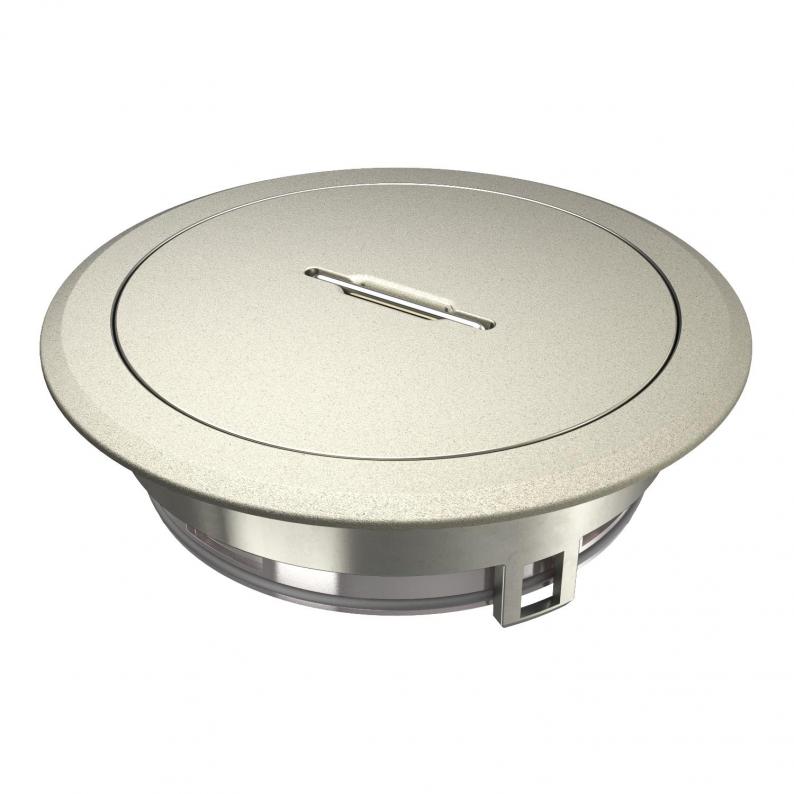

Service outlet with tube body with handle clamp, GES R2, nickel
Trench Part No. GES R2T Ni | OBO Item No. 7408860 | EAN 4012196458981
Trench Part No.
OBO Item No.
Material
Die-cast zinc
Smallest selling unit: 1 piece
1piece
Description
Service outlet with tube body and handle clamp for GES R2 floor socket for direct installation in the MT R2 installation socket for indoor use.
The tube body fulfils the requirements of EN 50085-2-2 for wet-cleaned floors, also when in use.
The tube body fulfils the requirements of EN 50085-2-2 for wet-cleaned floors, also when in use.
Technical data
Technical data
| Suitable for underfloor ducts | no |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Suitable for wet care | yes |

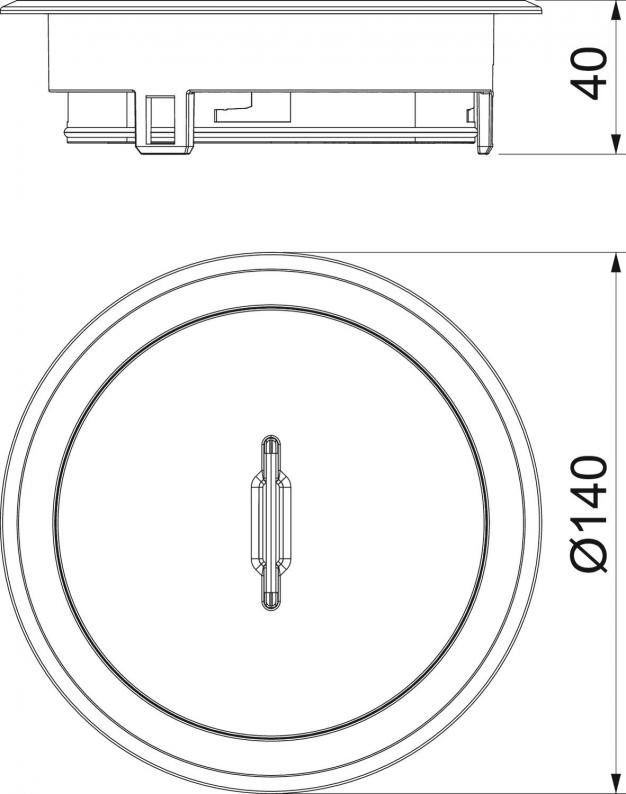

| External diameter | 140 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | Lowerable tube body |
| Protection rating IK code | IK10 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP66 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 15,000 N |
| Version for | Round |
| Opening mechanism | Handle |
| Surface | Nickel-plated |
| Material | Die-cast zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,911 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Trench Part No.
Material
OBO Item No.
GES R2T Ni
Die-cast zinc
7408860
GES R2T Cr
Die-cast zinc
7408866
GES R2T Ni
OBO Item No.
7408860
Material
Die-cast zinc
GES R2T Cr
OBO Item No.
7408866
Material
Die-cast zinc
