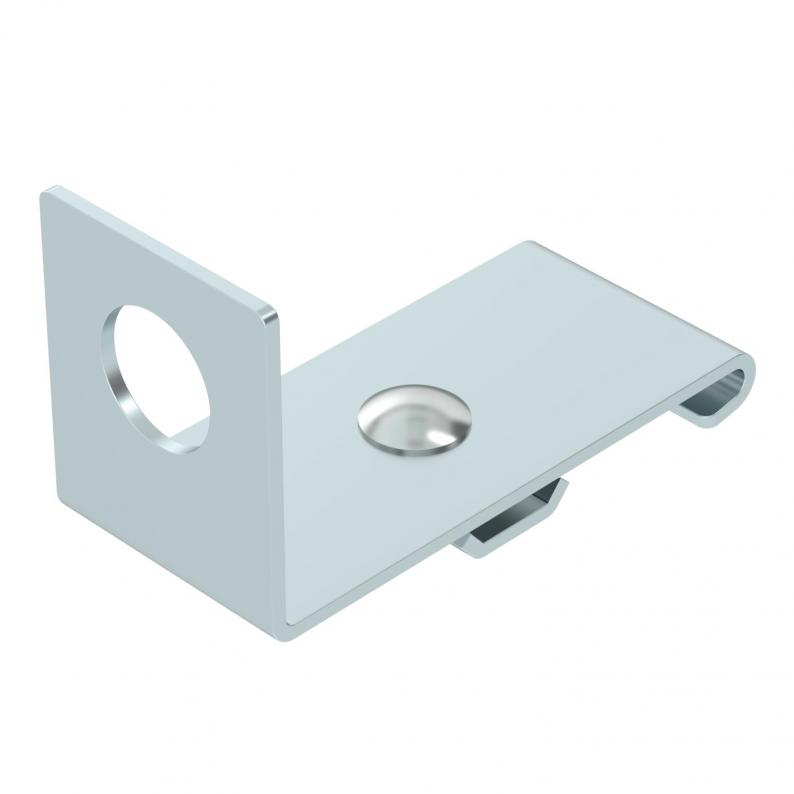

Side holder for cable gland
Trench Part No. SH KAB 20 FS | OBO Item No. 6015425 | EAN 4012196649990
Trench Part No.
OBO Item No.
Hole diameter
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 10 piece
10piece
Description
Conduit take-off bracket with punched hole for accepting cable glands.
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Hole diameter | 20 mm |

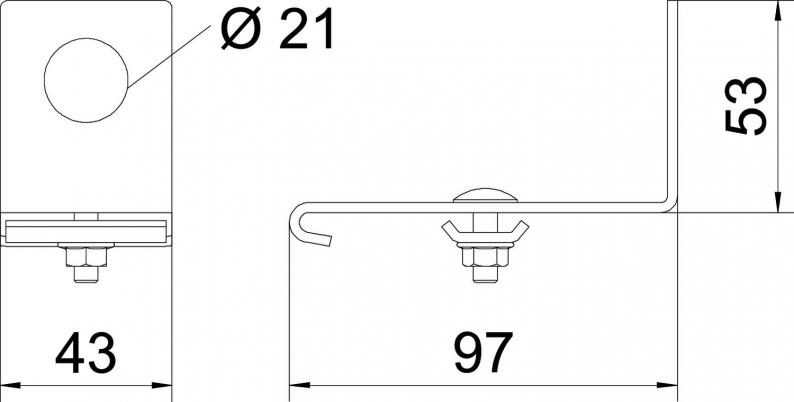

| Dimension | 53 x 97 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3849 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Trench Part No.
Hole diameter
Surface
Material
OBO Item No.
SH KAB 20 FS
20
Strip galvanized
Steel
6015425
SH KAB 25 FS
25
Strip galvanized
Steel
6015433
Hole diameter
SH KAB 20 FS
OBO Item No.
6015425
Hole diameter
20
Surface
Strip galvanized
Material
Steel
SH KAB 25 FS
OBO Item No.
6015433
Hole diameter
25
Surface
Strip galvanized
Material
Steel
