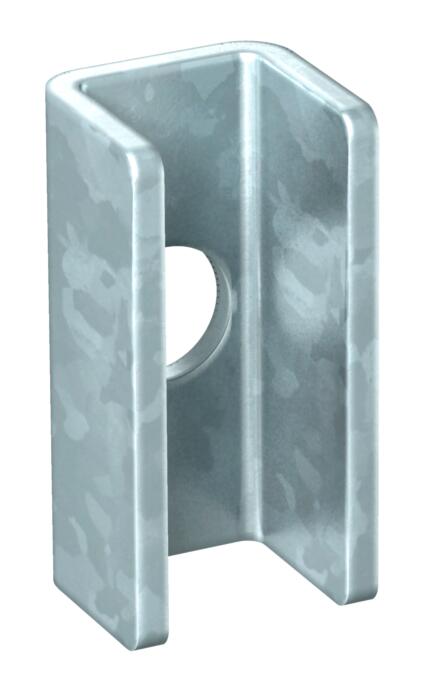

Spacer FS
Trench Part No. DS 4 FS | OBO Item No. 6416551 | EAN 4012196202997
Trench Part No.
DS 4 FS
OBO Item No.
6416551
Colour
zinc
Smallest selling unit: 20 piece
20piece
Description
Spacer for use in profiles, type TP.
For static reasons, the spacer is always used to prevent the profile from deforming when the fastening bolts are tightened.
Technical data

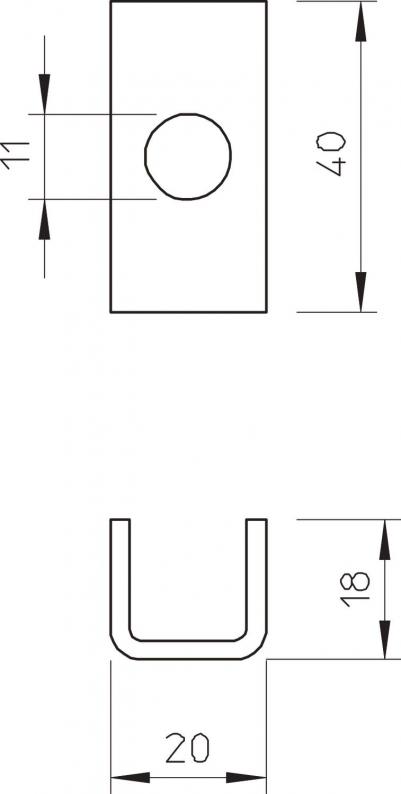

Dimensions
| Length | 40 mm |
|---|---|
| Width | 20 mm |
| Height | 18 mm |
Technical data
| With screw accessories | no |
|---|---|
| Dimension | 40 x 20 x 18 x 2 |
| Dimension | 40x20x18 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1026 kg CO2e / 1 Piece |
