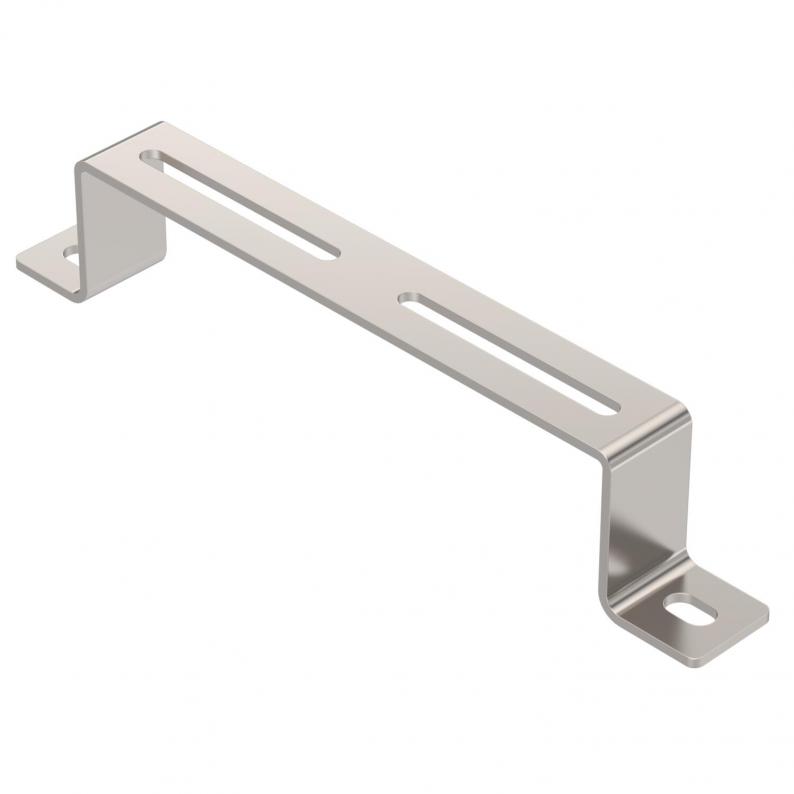

Stand-off bracket A4
Trench Part No. DBL 50 200 A4 | OBO Item No. 6015632 | EAN 4012196937516
Trench Part No.
OBO Item No.
Dimension B
Tray fastening
Screw-on
Surface
Bright, treated
Material
Stainless steel 1.4571
Smallest selling unit: 10 piece
10piece
Description
Stand-off bracket for cable trays and mesh cable trays.
Technical data

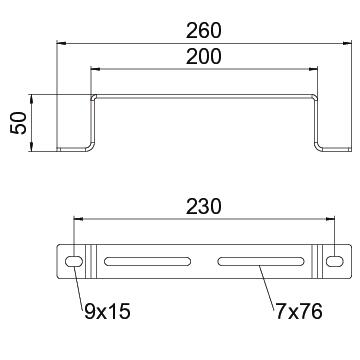

Dimensions
| Width | 200 mm |
|---|---|
| Height | 50 mm |
| Dimension A | 260 mm |
| Dimension B | 200 mm |
| Dimension H | 50 mm |
Technical data
| Suitable for mesh cable tray | yes |
|---|---|
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Screw-on |
| Dimension | B200mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7465 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Trench Part No.
Dimension B
Tray fastening
Surface
Material
OBO Item No.
DBL 50 100 A4
100
Screw-on
Bright, treated
Stainless steel 1.4571
6015630
DBL 50 200 A4
200
Screw-on
Bright, treated
Stainless steel 1.4571
6015632
DBL 50 300 A4
300
Screw-on
Bright, treated
Stainless steel 1.4571
6015633
Dimension B
DBL 50 100 A4
OBO Item No.
6015630
Dimension B
100
Tray fastening
Screw-on
Surface
Bright, treated
Material
Stainless steel 1.4571
DBL 50 200 A4
OBO Item No.
6015632
Dimension B
200
Tray fastening
Screw-on
Surface
Bright, treated
Material
Stainless steel 1.4571
DBL 50 300 A4
OBO Item No.
6015633
Dimension B
300
Tray fastening
Screw-on
Surface
Bright, treated
Material
Stainless steel 1.4571
