Stand-off bracket FS
Trench Part No. DBLG 20 100 FS | OBO Item No. 6015654 | EAN 4012196961580
Trench Part No.
OBO Item No.
Dimension B
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 20 piece
20piece
Description

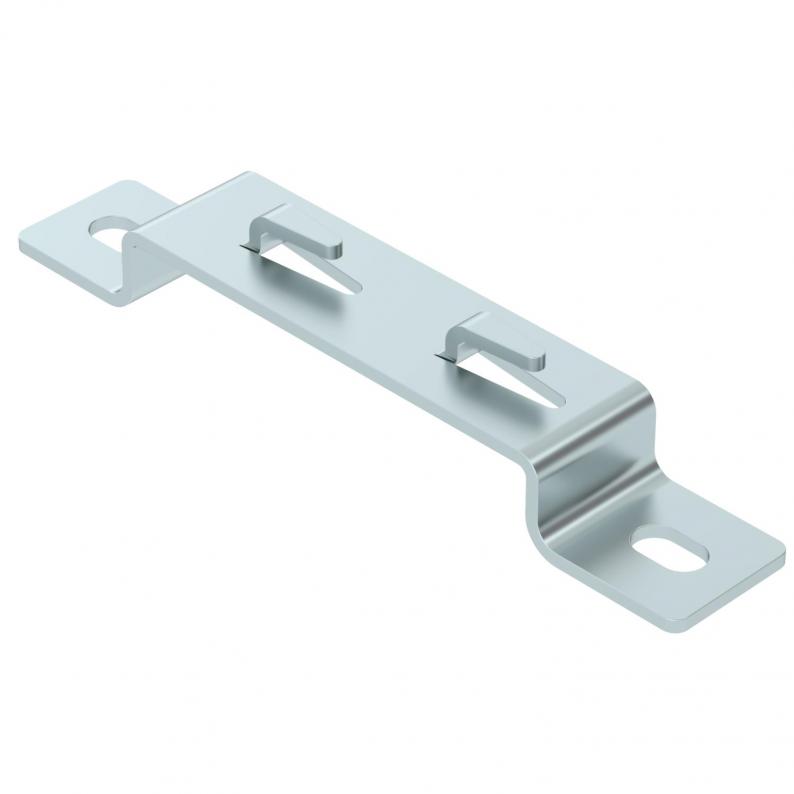

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the stand-off bracket.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the stand-off bracket.
Screwless fastening of the mesh cable tray on the stand-off bracket.
Technical data

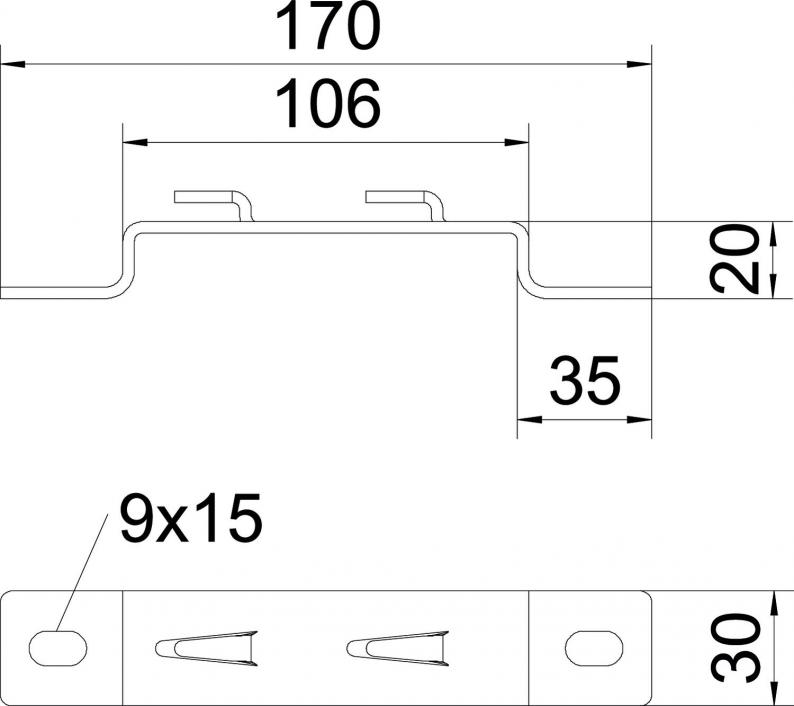

Dimensions
| Height | 20 mm |
|---|---|
| Dimension L | 170 mm |
| Dimension A | 30 mm |
| Dimension B | 106 mm |
Technical data
| Suitable for mesh cable tray | yes |
|---|---|
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Retaining lug |
| Dimension | B100mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3208 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Trench Part No.
Dimension B
Tray fastening
Surface
Material
OBO Item No.
DBLG 20 050 FS
56
Retaining lug
Strip galvanized
Steel
6015646
DBLG 20 100 FS
106
Retaining lug
Strip galvanized
Steel
6015654
DBLG 20 150 FS
156
Retaining lug
Strip galvanized
Steel
6015658
DBLG 20 200 FS
206
Retaining lug
Strip galvanized
Steel
6015662
DBLG 20 300 FS
306
Retaining lug
Strip galvanized
Steel
6015670
DBLG 20 400 FS
406
Retaining lug
Strip galvanized
Steel
6015689
DBLG 20 500 FS
506
Retaining lug
Strip galvanized
Steel
6015693
DBLG 20 600 FS
606
Retaining lug
Strip galvanized
Steel
6015697
Dimension B
DBLG 20 050 FS
OBO Item No.
6015646
Dimension B
56
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 100 FS
OBO Item No.
6015654
Dimension B
106
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 150 FS
OBO Item No.
6015658
Dimension B
156
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 200 FS
OBO Item No.
6015662
Dimension B
206
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 300 FS
OBO Item No.
6015670
Dimension B
306
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 400 FS
OBO Item No.
6015689
Dimension B
406
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 500 FS
OBO Item No.
6015693
Dimension B
506
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 600 FS
OBO Item No.
6015697
Dimension B
606
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
