Stand-off bracket FT

Stand-off bracket FT

Trench Part No. DBLG 20 050 FT | OBO Item No. 6015648 | EAN 4012196042845

Show all variants
Trench Part No.
OBO Item No.
Dimension B
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 20 piece

DescriptionTechnical dataDownloadsVariants

Description

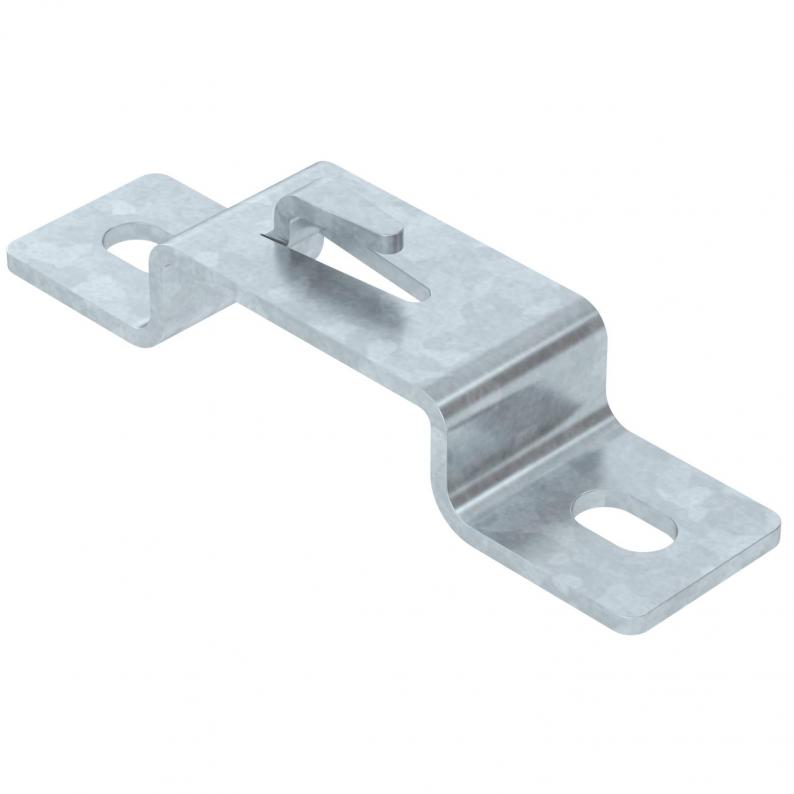

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.

GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.

Screwless fastening of the mesh cable tray on the stand-off bracket.

Technical data

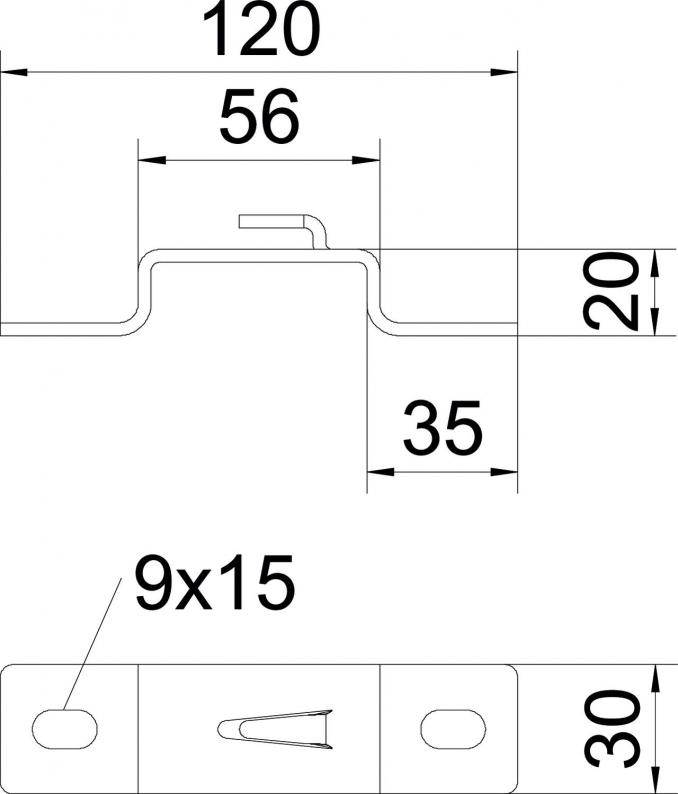

Dimensions

Height20 mm
Dimension L120 mm
Dimension A30 mm
Dimension B56 mm

Technical data

Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Version forWall/ceiling clamp, trapezoidal profile
Tray fasteningRetaining lug
DimensionB50mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,2204 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Dimension B
DBLG 20 050 FT
OBO Item No.
6015648
Dimension B
56
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 100 FT
OBO Item No.
6015656
Dimension B
106
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 150 FT
OBO Item No.
6015660
Dimension B
156
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 200 FT
OBO Item No.
6015664
Dimension B
206
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 300 FT
OBO Item No.
6015672
Dimension B
306
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
