Support, duct width 100 mm, pure white
Trench Part No. PLM SU 100 RW
|OBO Item No. 7218166
|EAN 4012197274740
Trench Part No.
PLM SU 100 RW
OBO Item No.
7218166
Length
200 mm
Width
67 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description
Support for suspended mounting of the PYROLINE® Rapid PLM installation duct.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
Technical data

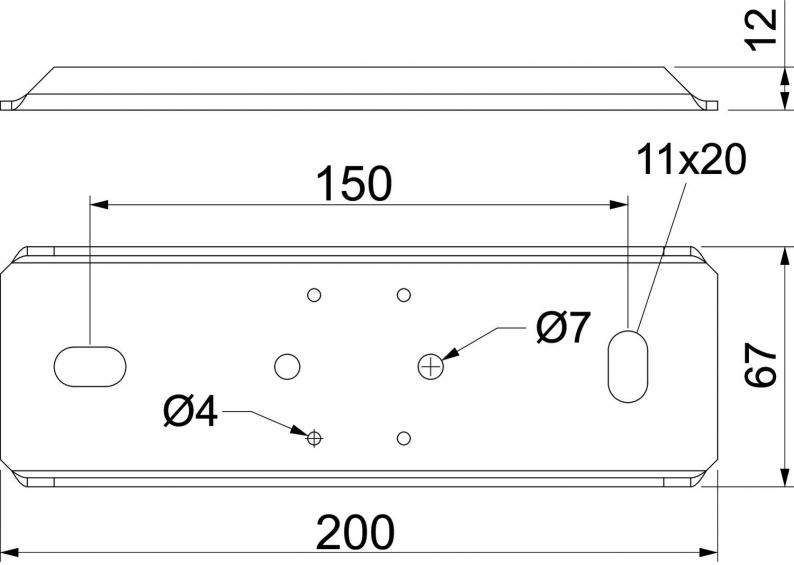

Dimensions
| Length | 200 mm |
|---|---|
| Width | 67 mm |
| Dimension B | 200 mm |
| Dimension b | 150 mm |
Technical data
| Type of accessory | Threaded rod adapter |
|---|---|
| ROHS-conformant | yes |
| Dimension | 200x67x12 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
1,0731 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0731 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 10731 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
