Support, duct width 200 mm, FS
Trench Part No. PLM SU 200 FS
|OBO Item No. 7218168
|EAN 4012197274719
Trench Part No.
PLM SU 200 FS
OBO Item No.
7218168
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

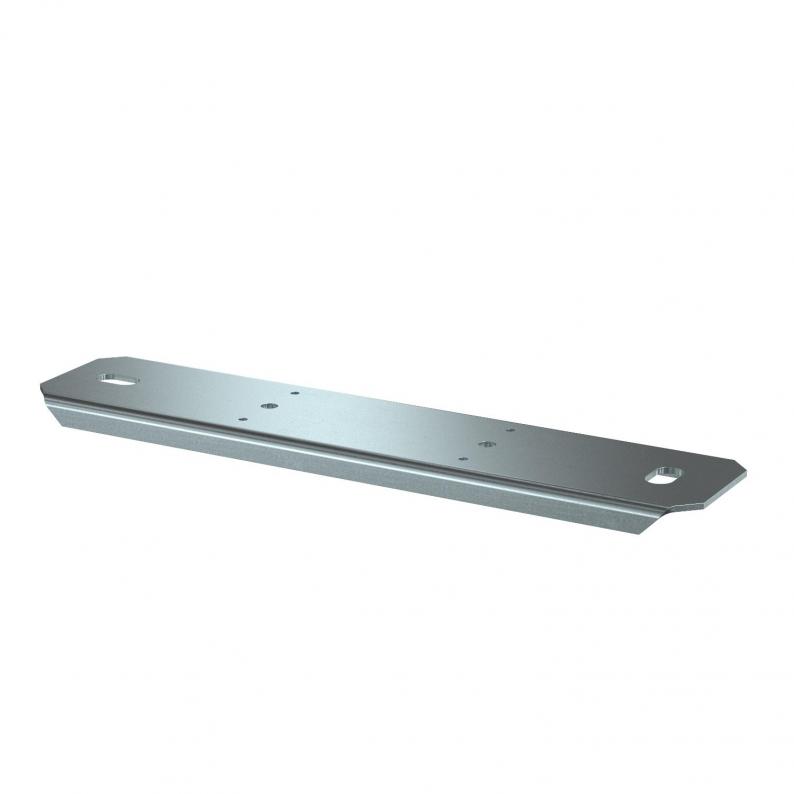

Support for suspended mounting of the PYROLINE® Rapid PLM installation duct.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
Technical data

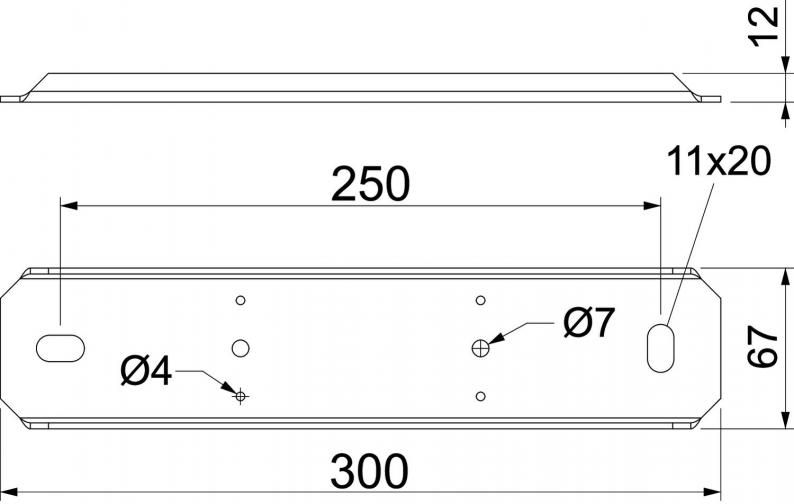

Dimensions
| Dimension B | 300 mm |
|---|---|
| Dimension b | 250 mm |
Technical data
| Type of accessory | Threaded rod adapter |
|---|---|
| ROHS-conformant | yes |
| Dimension | 300x67x12 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
1,4949 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4949 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 14949 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
