T piece, without height adjustment units
Trench Part No. OKB TS 25085 ON
|OBO Item No. 7403836
|EAN 4012195845997
Trench Part No.
OKB TS 25085 ON
OBO Item No.
7403836
Width
250 mm
Smallest selling unit: 1 piece
1piece
piece
Description

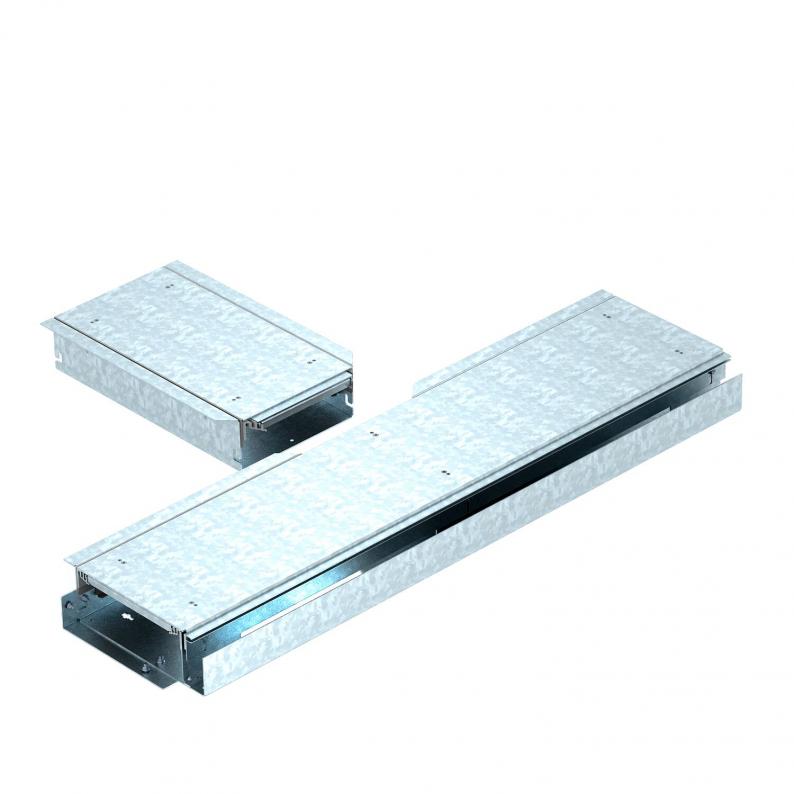

Ready-to-mount connection of a trunking unit with a brush bar and a trunking unit for cable laying, consisting of trunking bases, two lids, height-adjustable side profiles and brush bar arranged on the wall side for cable alignment. The scope of delivery contains two lid butt seals and two connectors.
For height adjustment six levelling units are required.
For height adjustment six levelling units are required.
Technical data

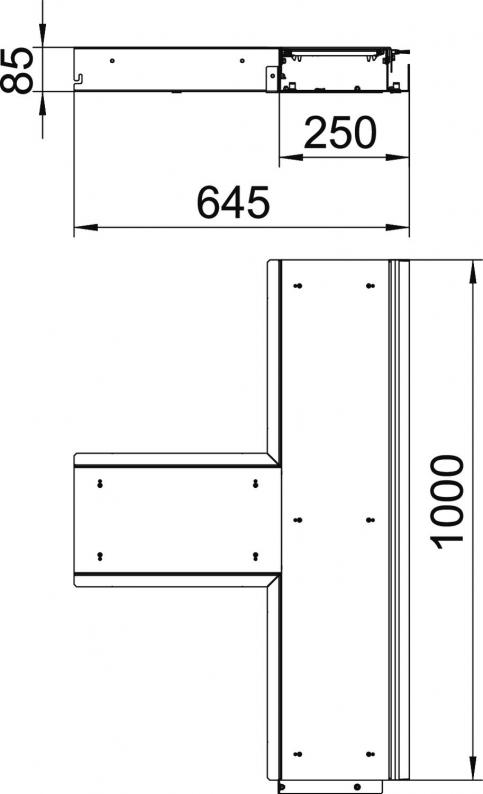

Dimensions
| Length | 1.000 mm |
|---|---|
| Width | 250 mm |
| Height | 93 mm |
| Dimension h | 85 mm |
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 93 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | yes |
| Floor plate | yes |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| With separating retainer | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| Function | Branch |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
78,5261 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 78,5261 kg CO2e / 1 Piece |
|---|
