TP profile FS
Trench Part No. TPSG 3000 FS | OBO Item No. 6366090 | EAN 4012196079032
Trench Part No.
TPSG 3000 FS
OBO Item No.
6366090
Smallest selling unit: 1 piece
1piece
Description

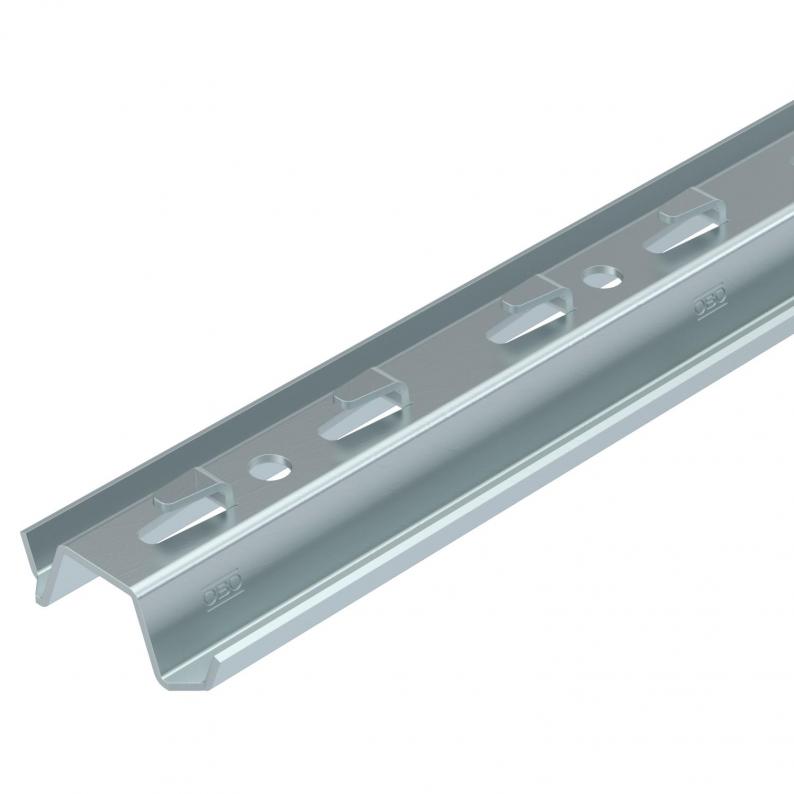

TP profile with clamping lugs.
Technical data

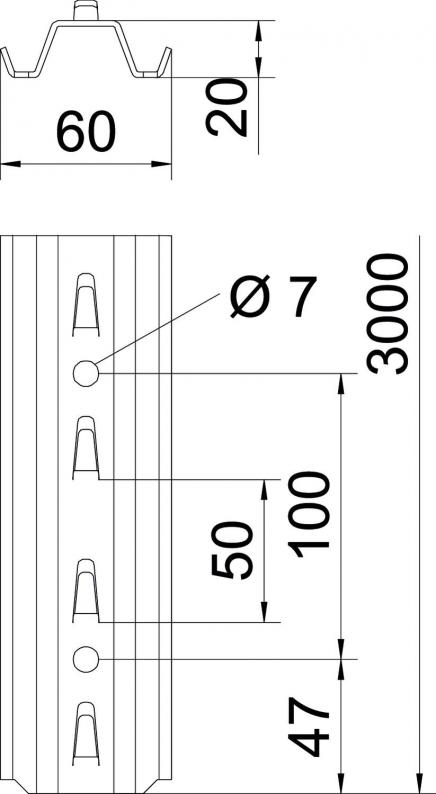

Dimensions
| Length | 3.000 mm |
|---|---|
| Width | 60 mm |
| Height | 20 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Type of perforation | Without |
| Breakable | no |
| With toothing | no |
| Version for | Single profile |
| Profile shape | Flat profile |
| Dimension | 3000mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,6931 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Trench Part No.
Length
OBO Item No.
TPSG 3000 FS
3.000
6366090
TPSG 3000 FS
OBO Item No.
6366090
Length
3.000
